Airbag Warning Indicator Open

Test 1:

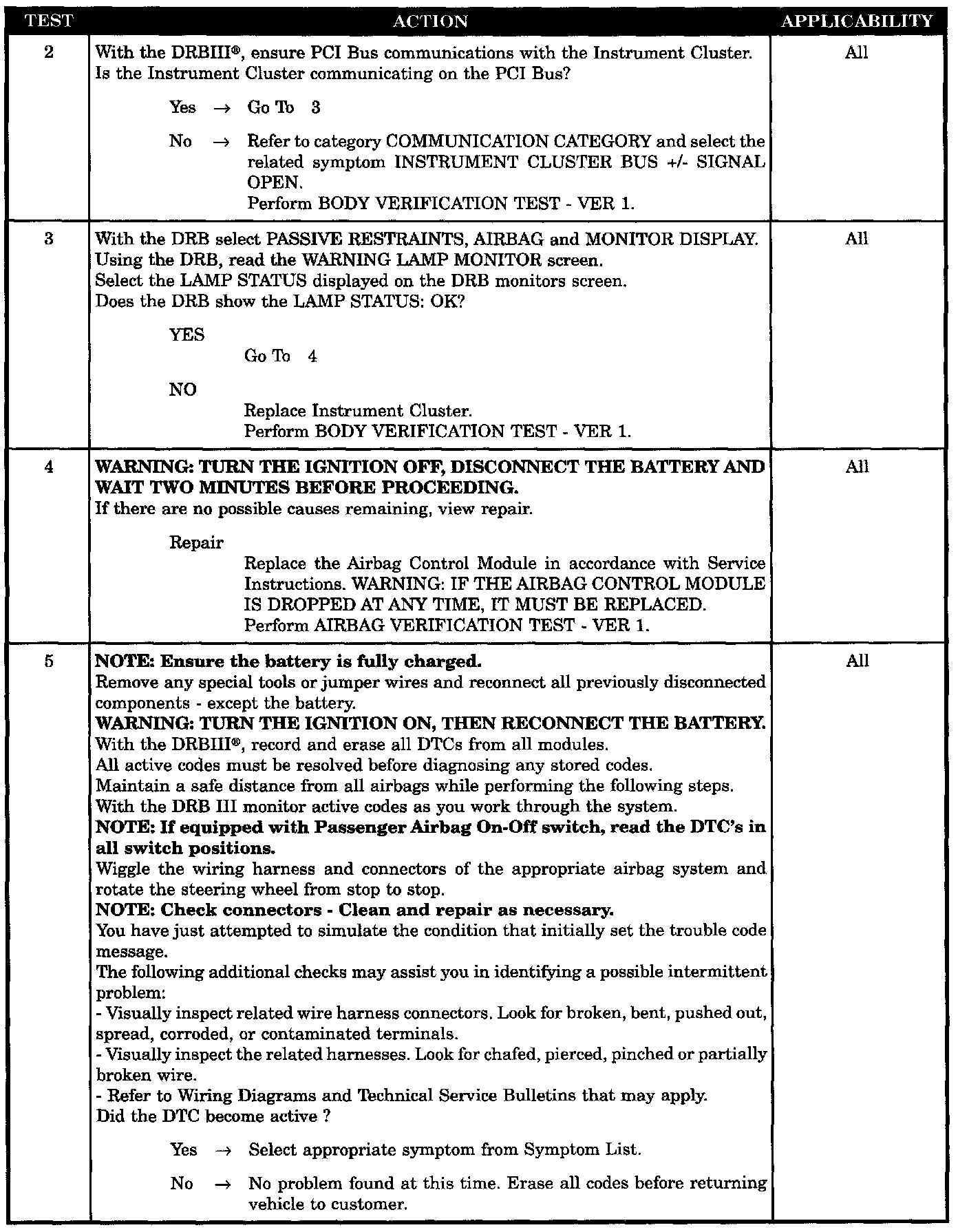

Test 2 - 5:

SYMPTOM
AIRBAG WARNING INDICATOR OPEN

WHEN MONITORED
With ignition on the ACM monitors the PCI Bus for a message from the MIC containing the airbag warning indicator status. The MIC transmits the message one time at ignition on, upon lamp state change, or in response to the ACM lamp message.

SET CONDITION
This DTC will set immediately if the indicator status is OPEN.

POSSIBLE CAUSES
- MIC, communication failure
- Warning indicator
- ACM, warning indicator
- Stored code or intermittent condition
- Active code present
