Accelerometer 2

Test 1:

SYMPTOM
ACCELEROMETER 2

TEST NOTE

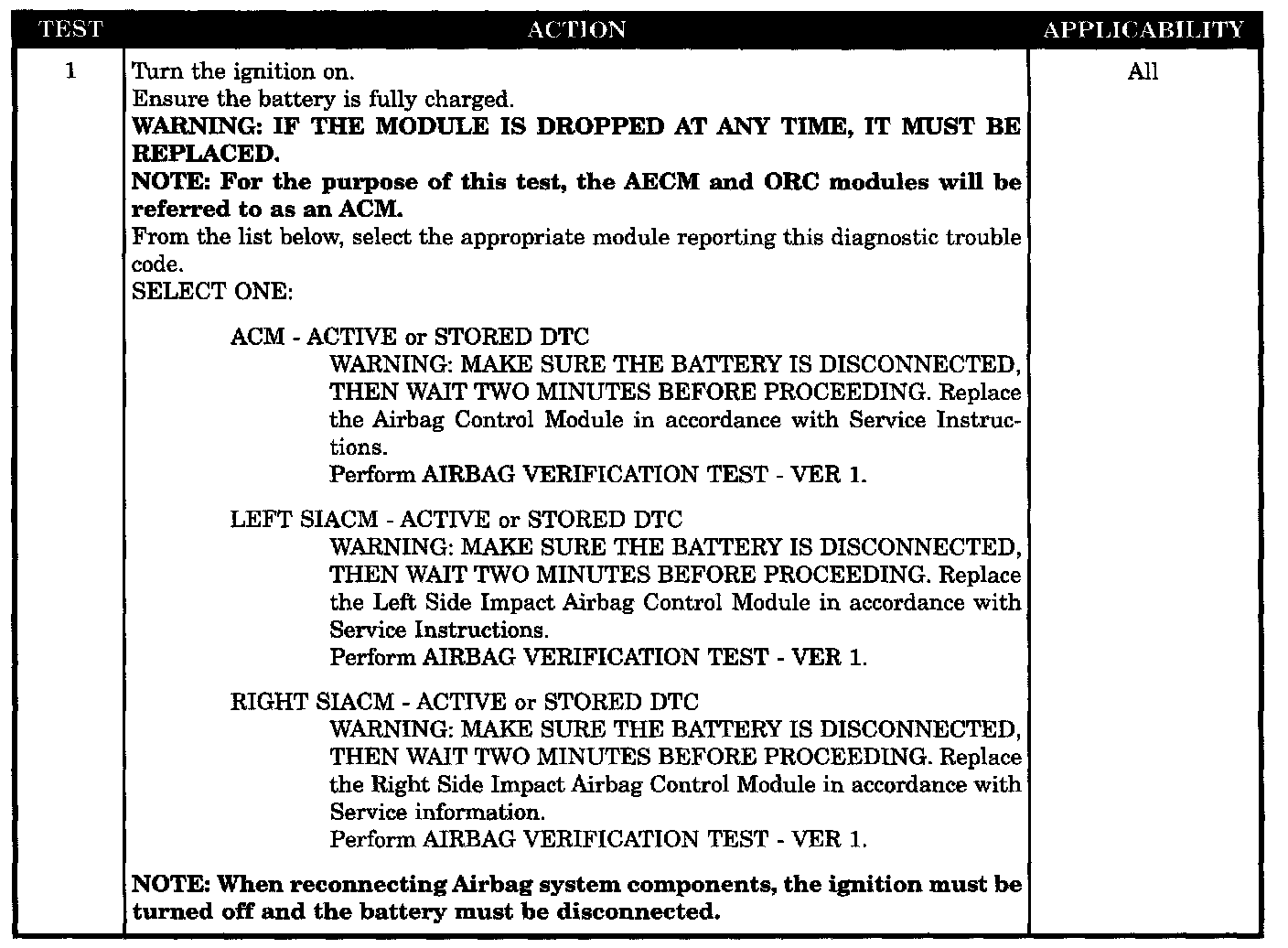

This symptom is diagnosed using the test INTERNAL MODULE TEST.

WHEN MONITORED
With the ignition on, the module on board diagnostics continuously performs internal circuit tests.

SET CONDITION
This DTC will set if the module identifies an out of range internal circuit.

POSSIBLE CAUSES
- Airbag control module - ACM
- Left side impact airbag control module - LSIACM
- Right side impact airbag control module - RSIACM
