Decklid Release Switch Failure

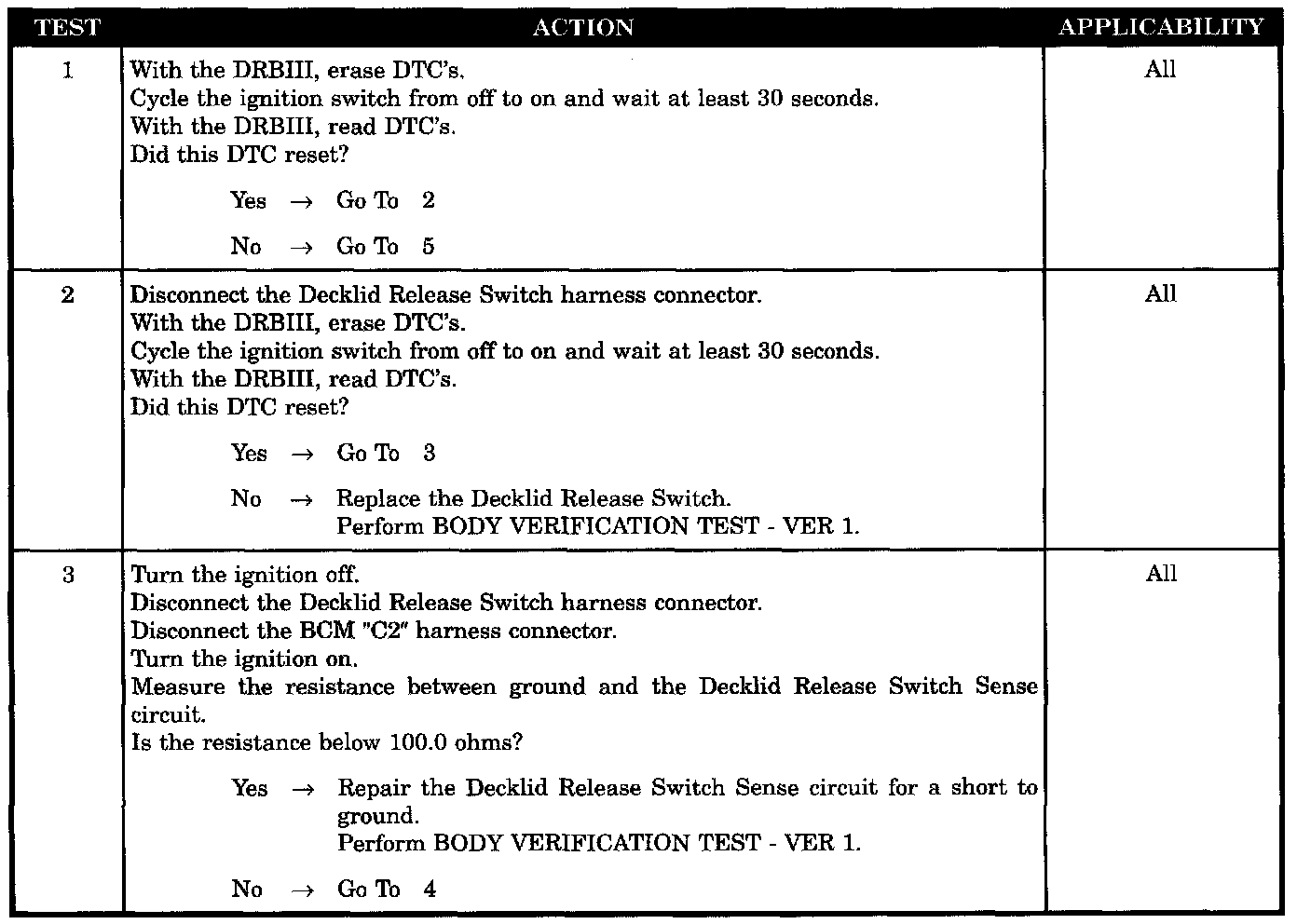

Test 1 - 3:
Test 4 - 5:
SYMPTOM
DECKLID RELEASE SWITCH FAILURE
WHEN MONITORED
Continuously.
SET CONDITION
The BCM detects the decklid release switch stuck in the depressed condition for more than 30 seconds.
POSSIBLE CAUSES
- Decklid release switch shorted
- Decklid release switch sense circuit short to ground
- Wiring harness intermittent defect
- Body control module
