Decklid Release Solenoid Output Failure

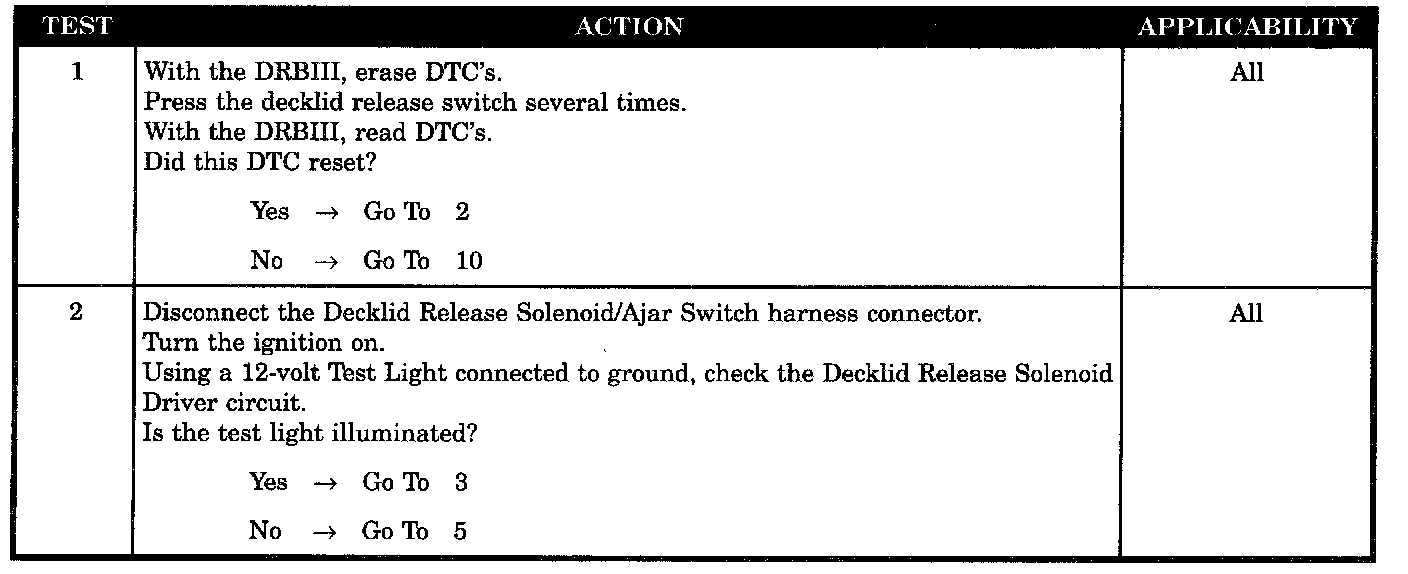

Test 1 - 2:

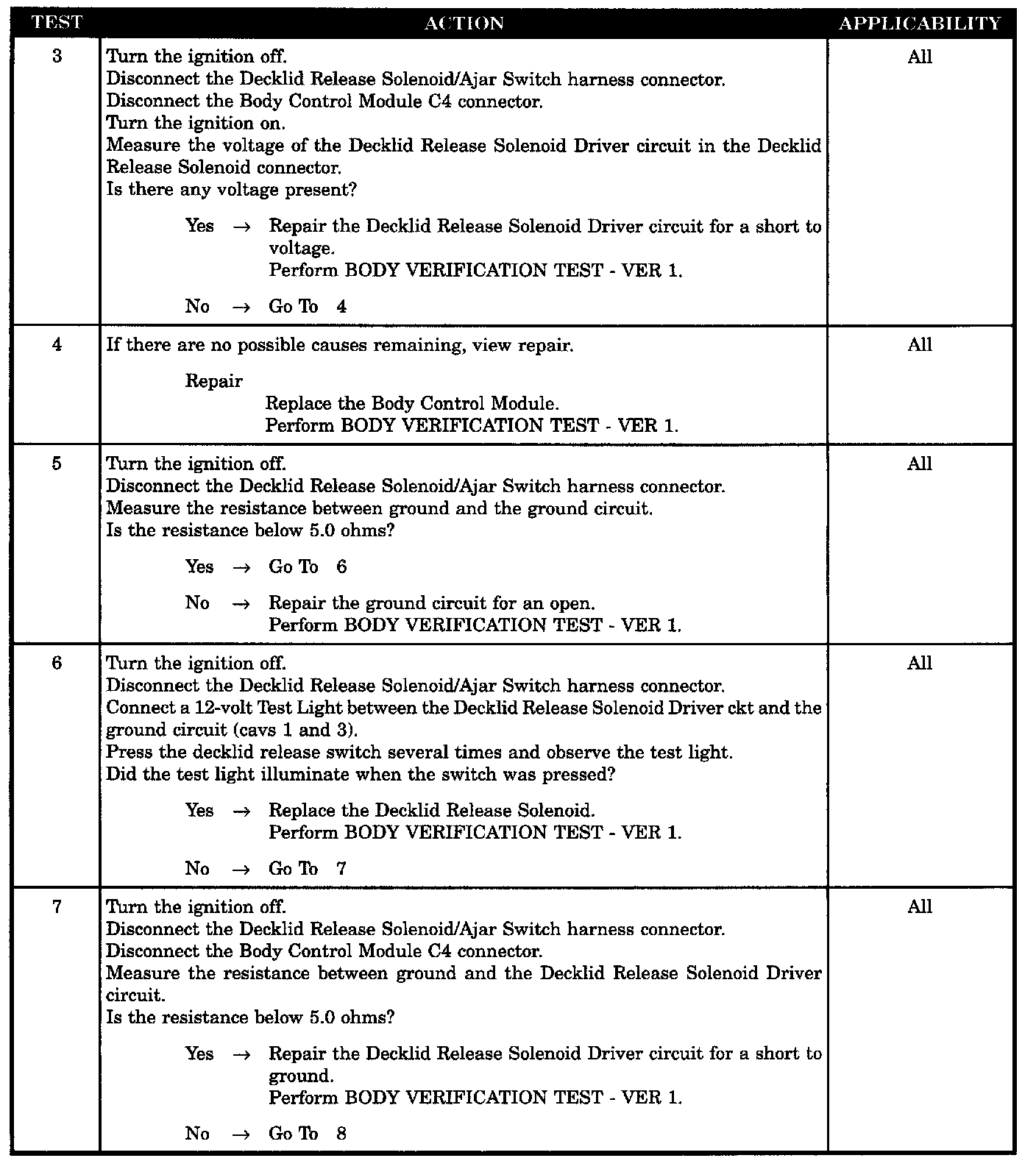

Test 3 - 7:

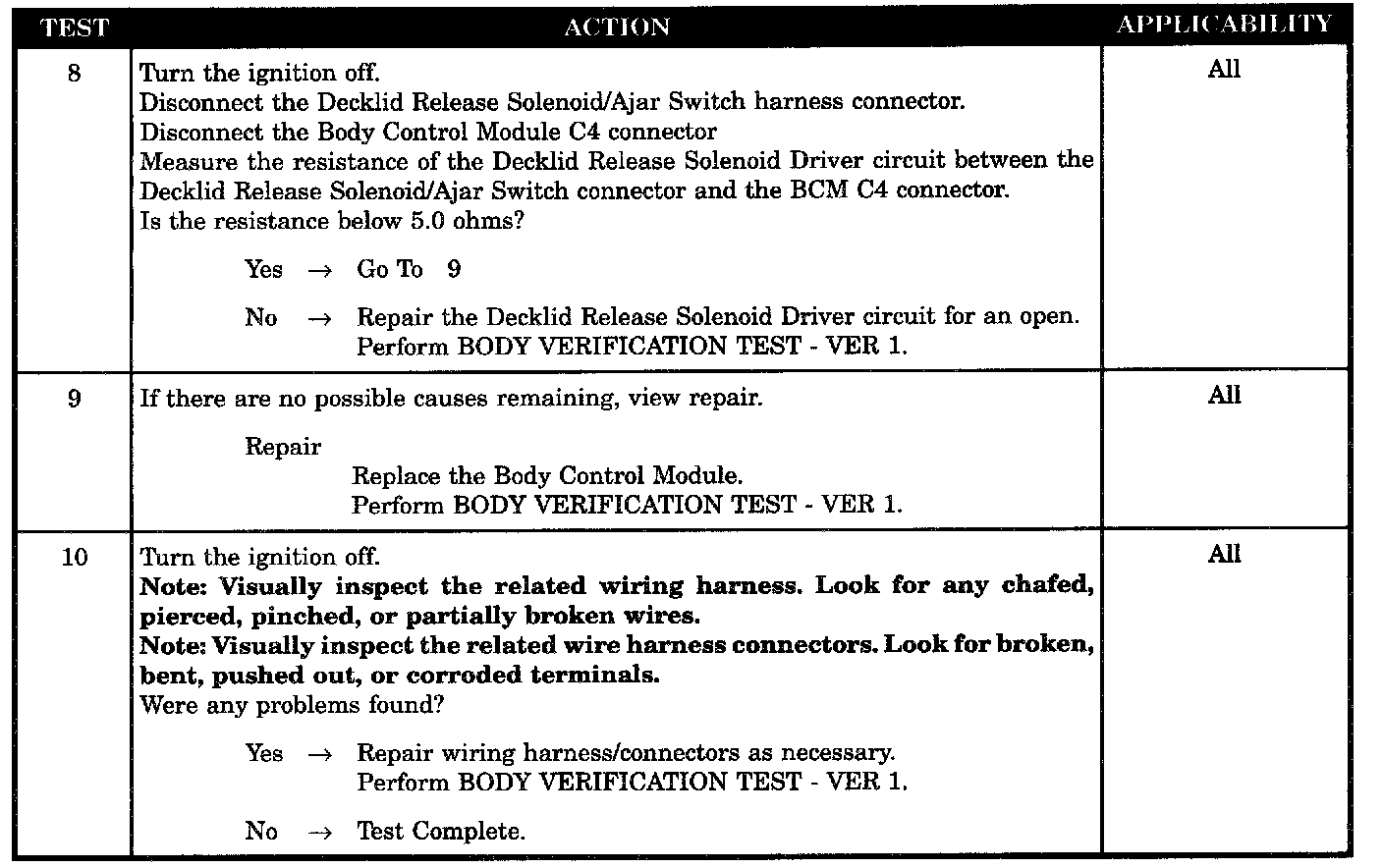

Test 8 - 10:

SYMPTOM
DECKLID RELEASE SOLENOID OUTPUT FAILURE

WHEN MONITORED
During decklid release solenoid actuation.

SET CONDITION
The BCM detects an open or short on the decklid release solenoid driver circuit.

POSSIBLE CAUSES
- Ground circuit open
- Decklid release solenoid driver circuit shorted to voltage
- Decklid release solenoid open
- Wiring harness intermittent defect
- Decklid release solenoid driver circuit shorted to ground
- Decklid release solenoid driver circuit open
- Body control module - Decklid release solenoid driver circuit short to voltage
- Body control module - Decklid release solenoid driver inoperative
