Panel Dimming Output Shorted

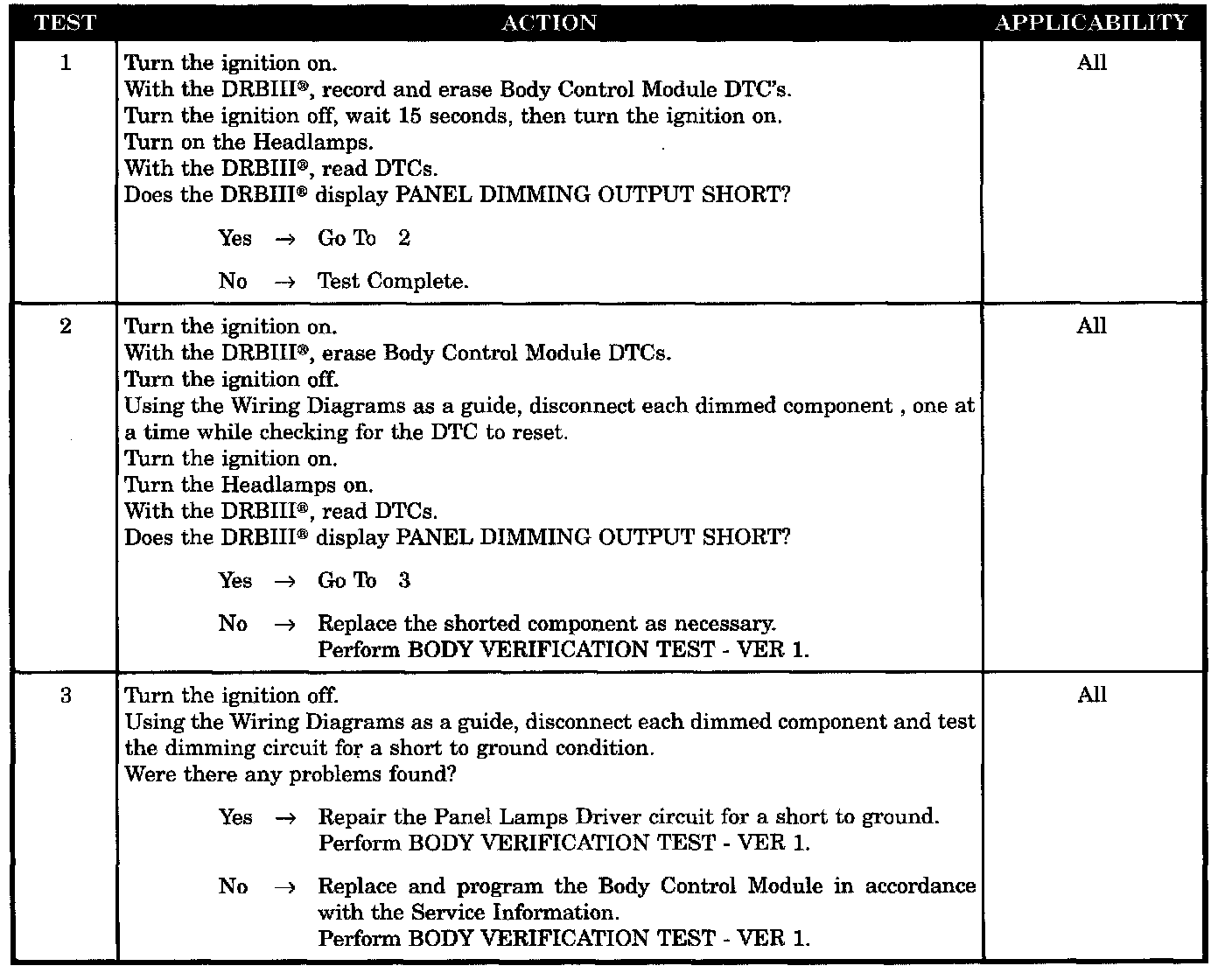

Test 1 - 3:






SYMPTOM
PANEL DIMMING OUTPUT SHORT

POSSIBLE CAUSES
- Intermittent condition
- Panel lamps driver circuit short to ground
- Component shorted
- Body control module
