Mode Door Output Shorted to Battery

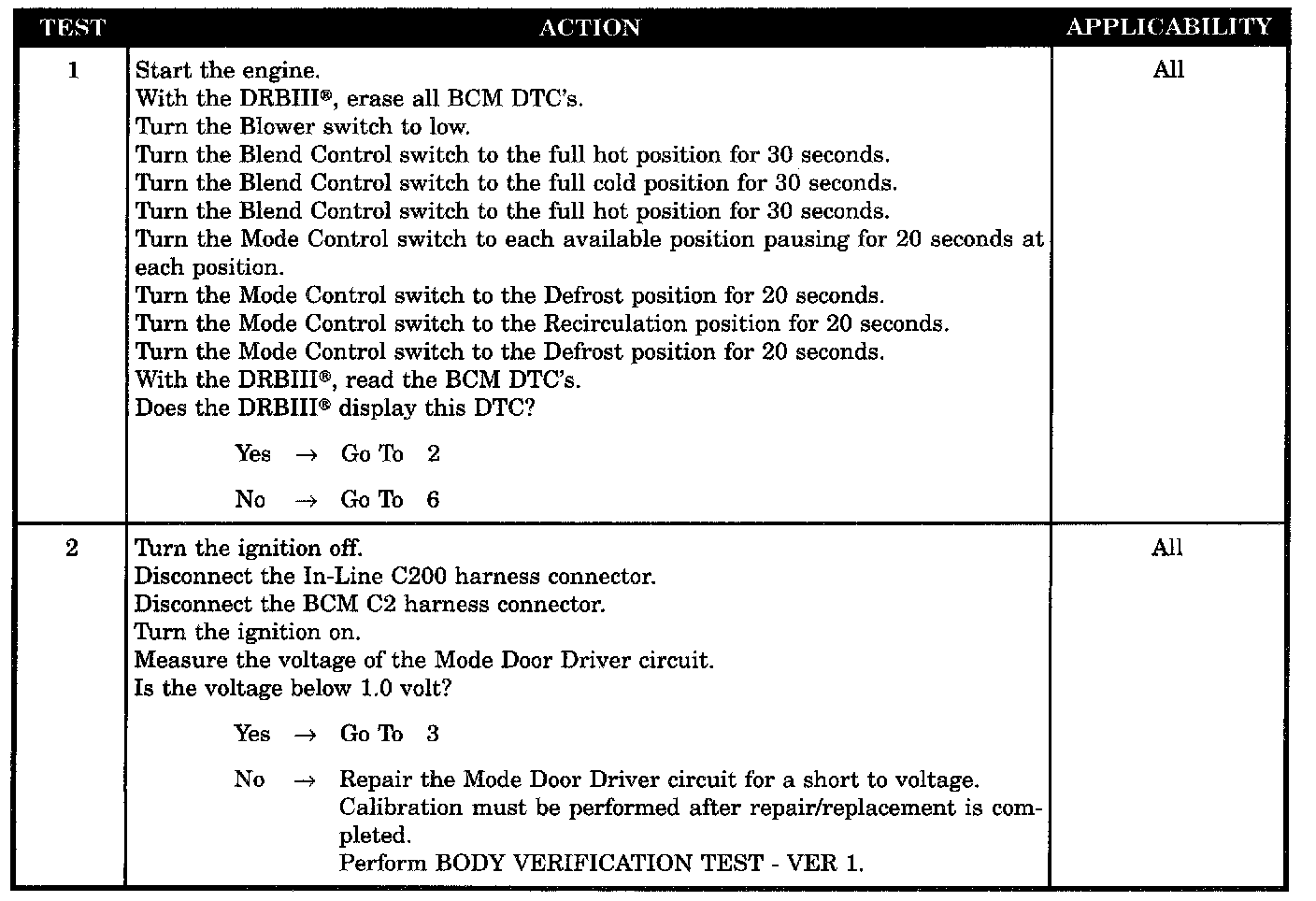

Test 1 - 2:

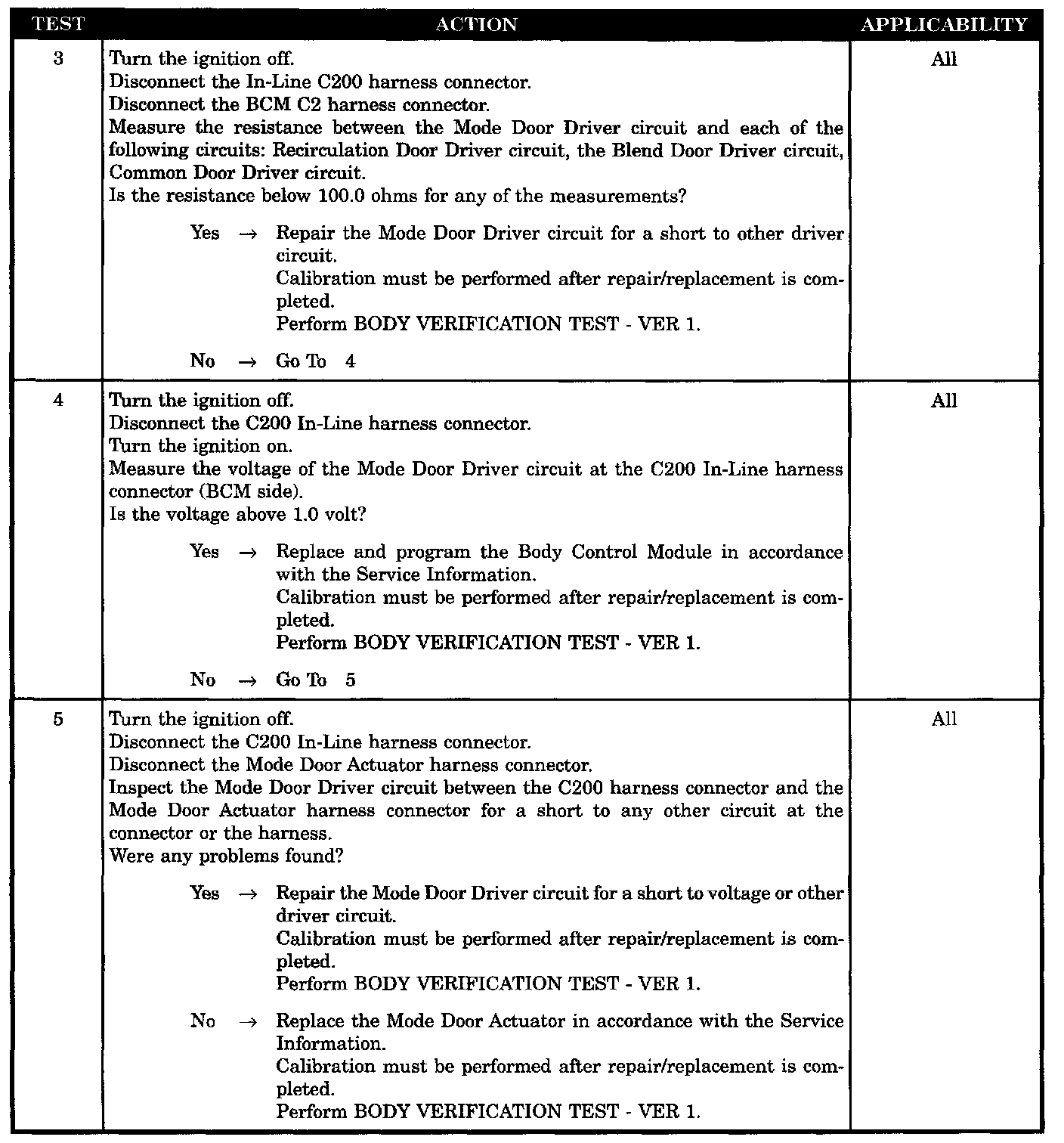

Test 3 - 5:

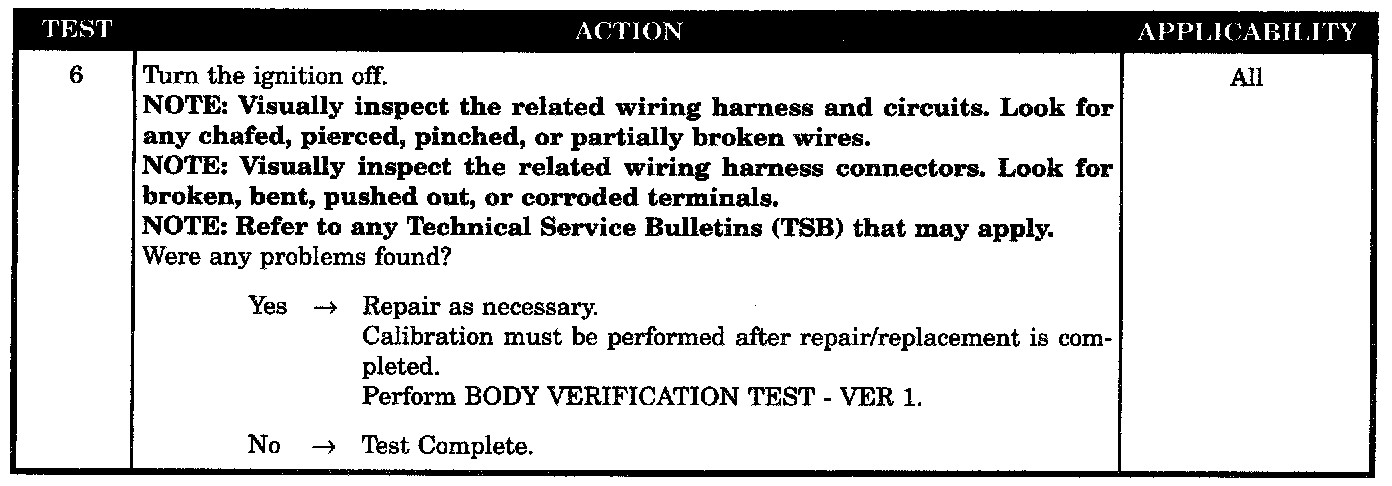

Test 6:

SYMPTOM
MODE DOOR OUTPUT SHORTED TO BATTERY

WHEN MONITORED
Whenever the BCM attempts to move the Mode Door Actuator.

SET CONDITION
This DTC will set if the BCM detects a short to voltage on the Mode Door Driver circuit.

POSSIBLE CAUSES
- Short to voltage between BCM and C200
- Mode door driver circuit shorted to other driver circuit
- BCM
- Driver circuits shorted together
- Mode door actuator
- Wiring harness inspection
