Mode Door Feedback Failure

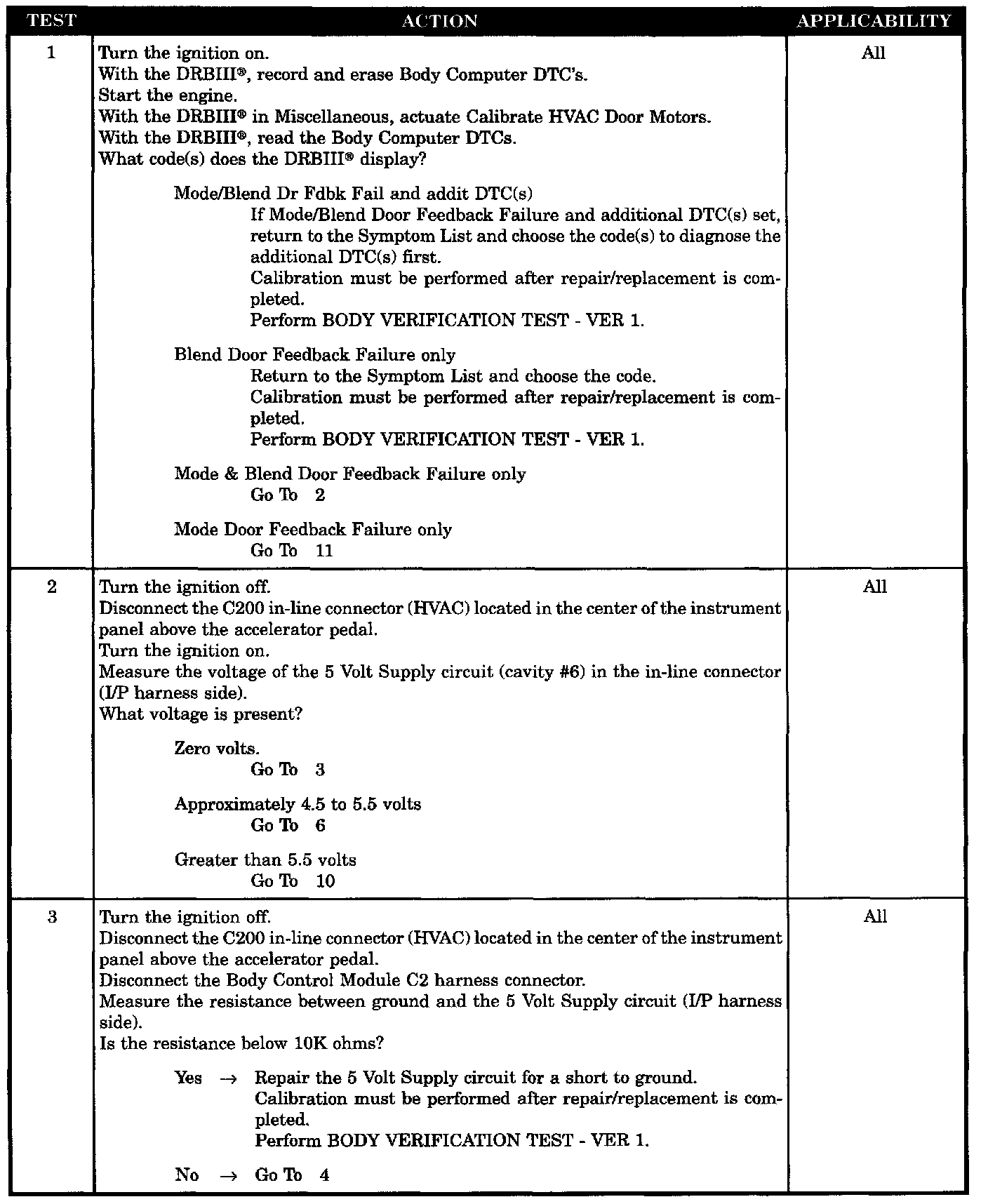

Test 1 - 3:

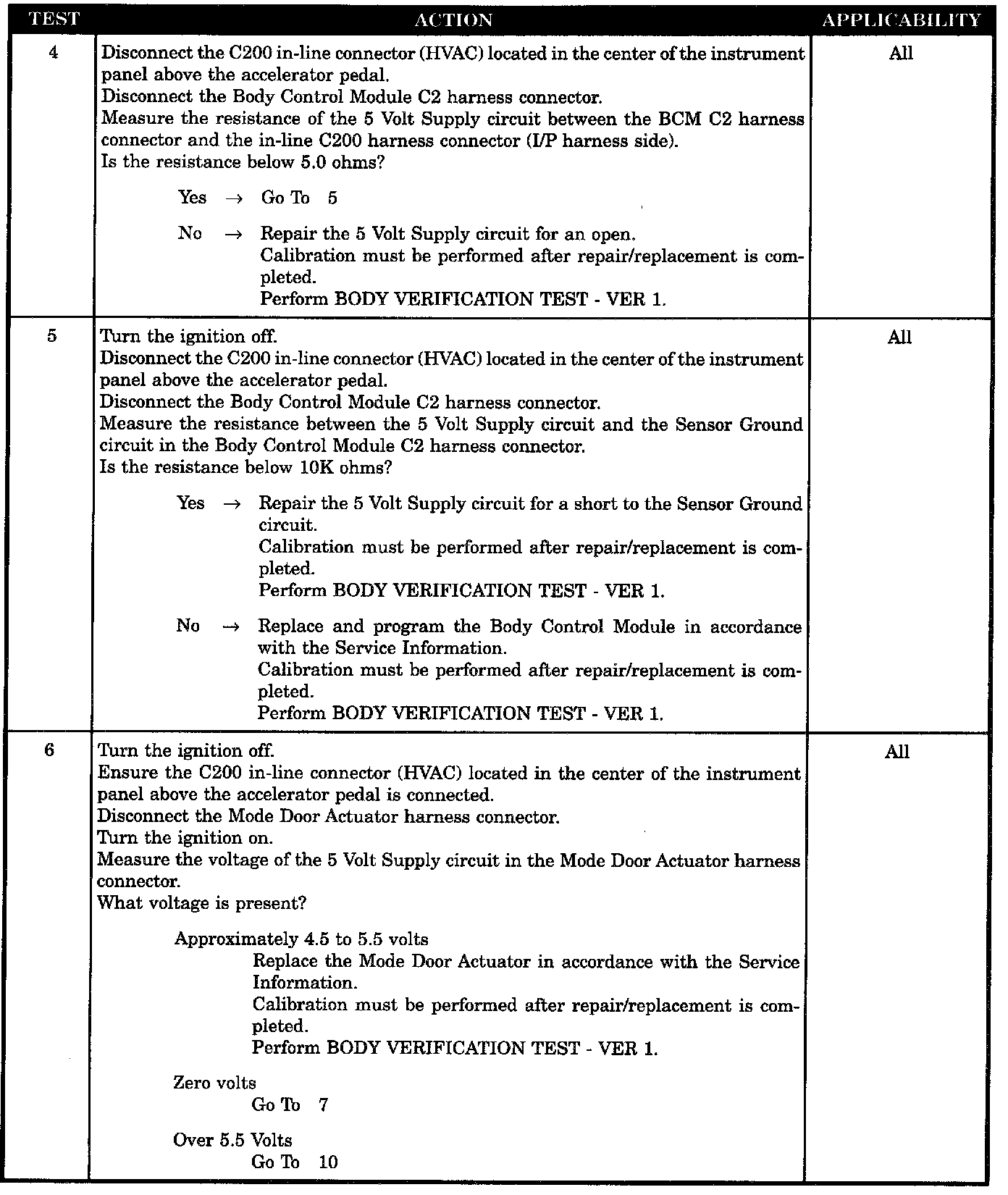

Test 4 - 6:

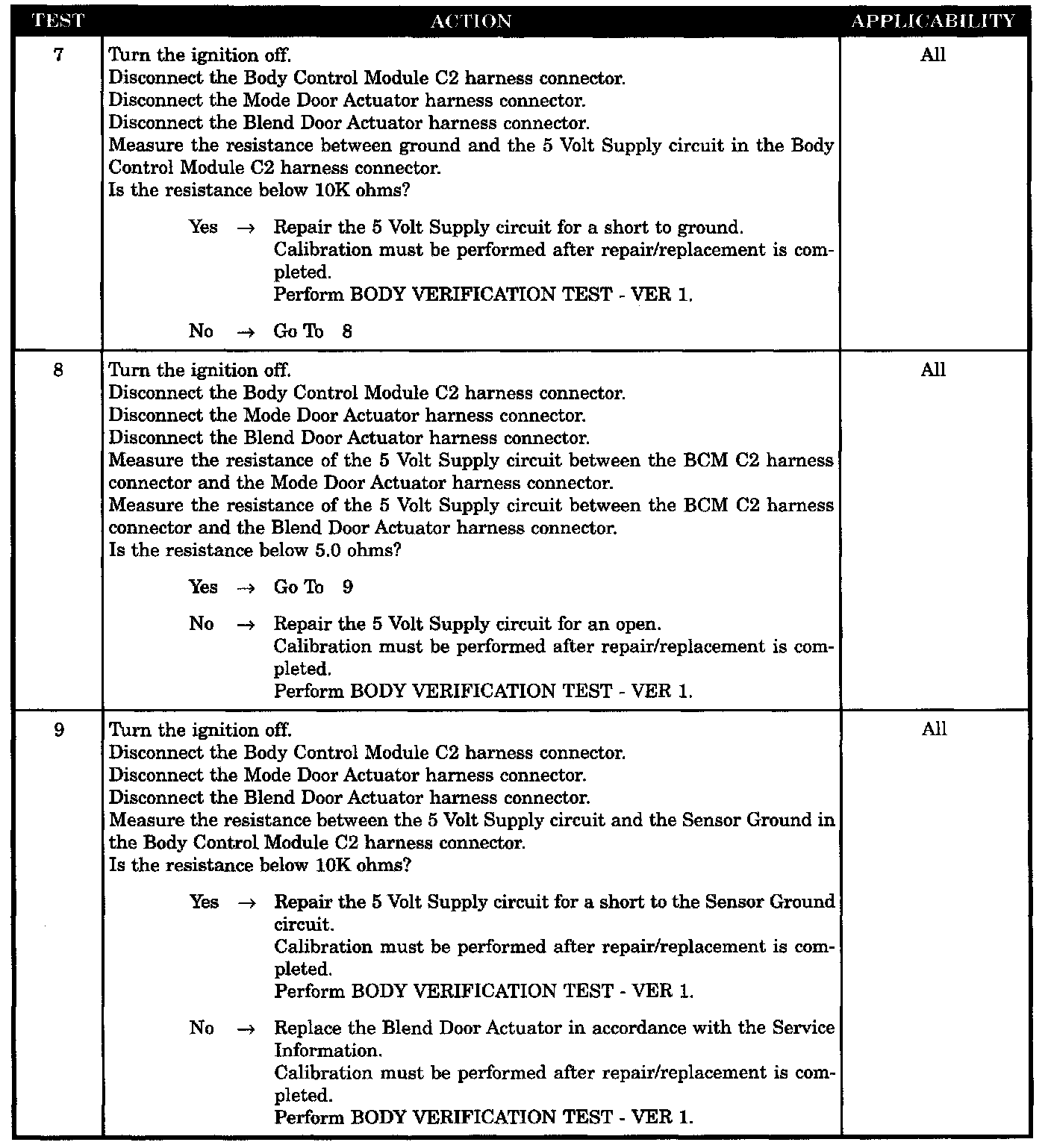

Test 7 - 9:

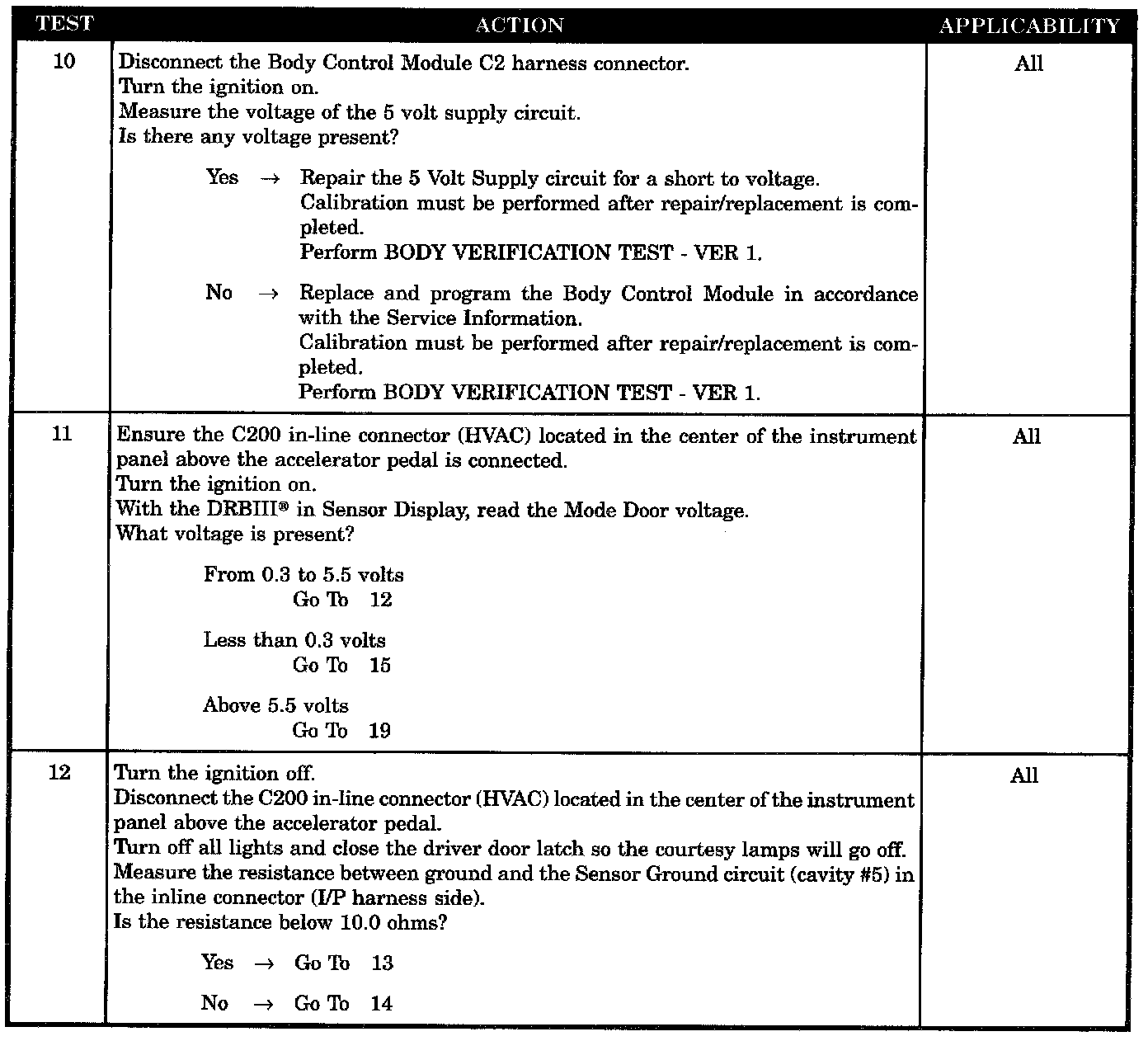

Test 10 - 12:

Test 13 - 15:

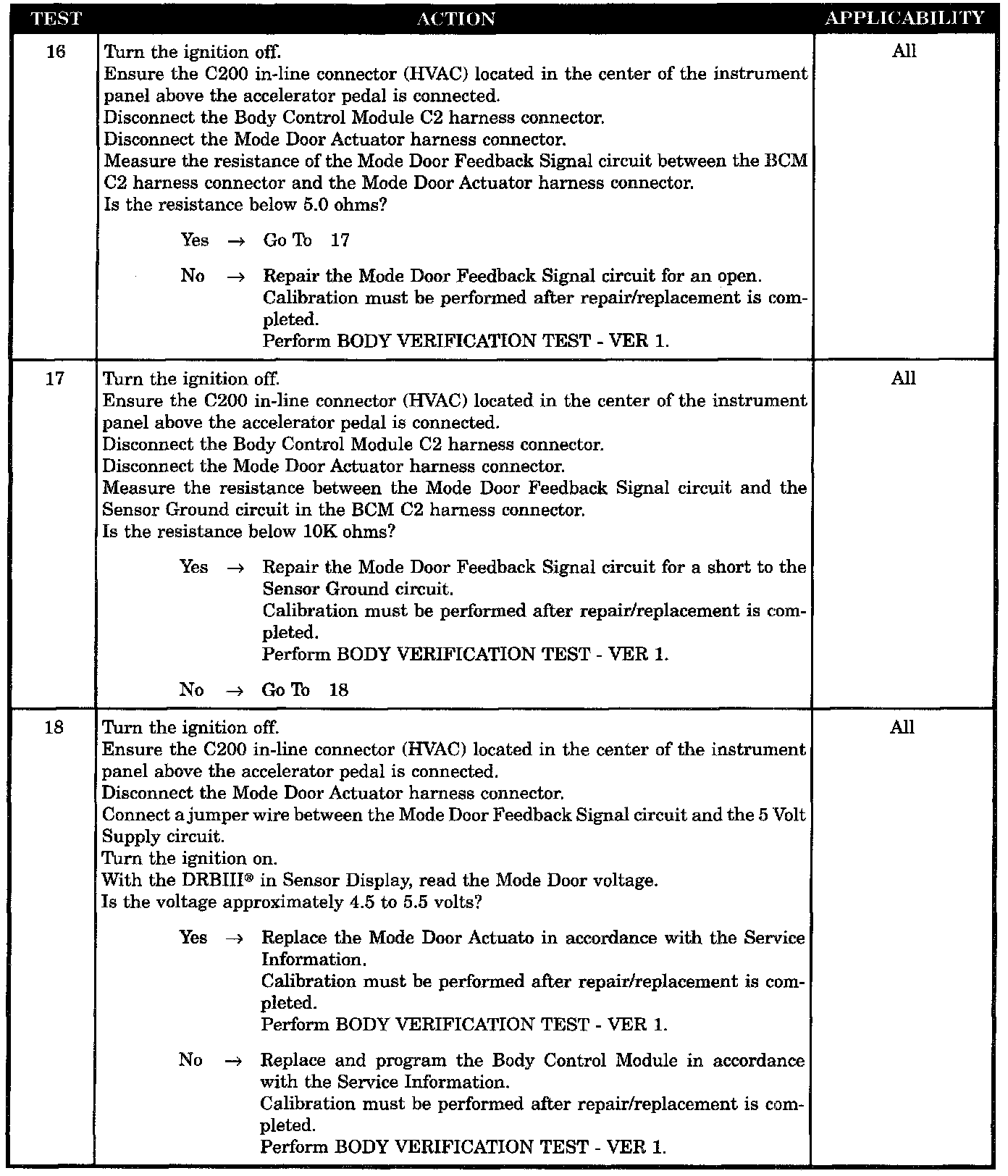

Test 16 - 18:

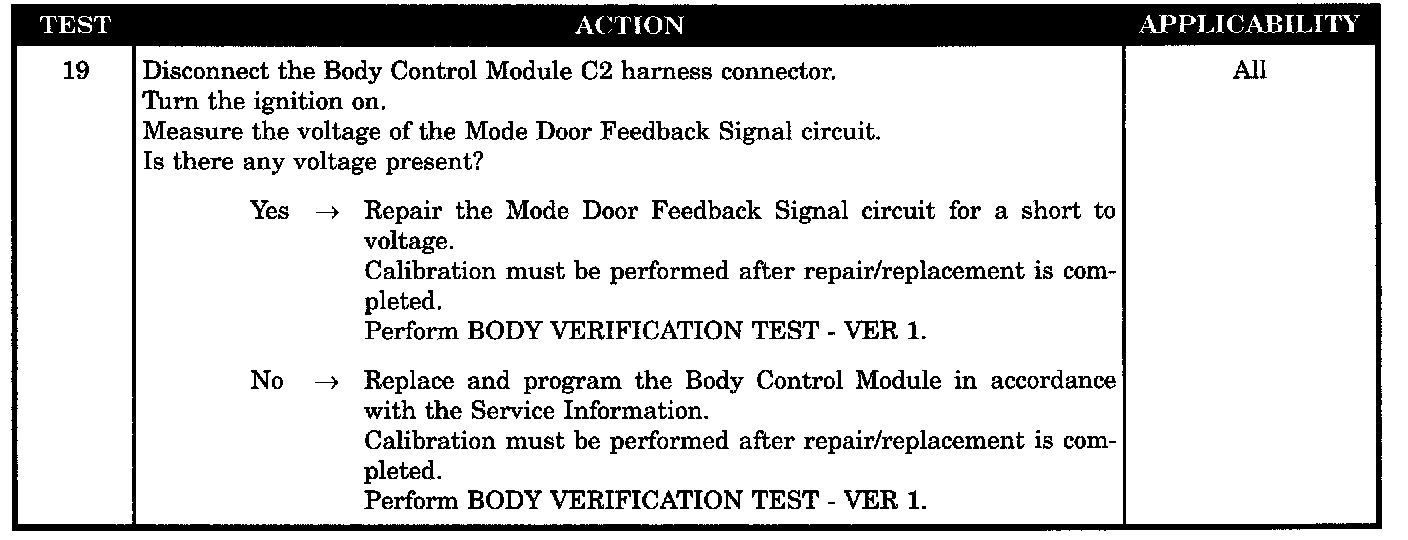

Test 19:

SYMPTOM
MODE DOOR FEEDBACK FAILURE

WHEN MONITORED
With the ignition on.

SET CONDITION
This DTC will set if the BCM detects voltage below 0.06 volts or above 4.8 volts on the Blend Door Feedback Signal input/Mode Door Feedback Signal input.

POSSIBLE CAUSES
- Check code present
- Blend door feedback failure DTC present
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- 5 volt supply circuit shorted to sensor ground circuit
- Body control module - 5 volt supply signal open/shorted low
- Mode door actuator shorted low
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- 5 volt supply circuit shorted to sensor ground circuit
- Blend door actuator shorted low
- 5 volt supply circuit shorted to voltage
- Body control module - 5 volts supply high
- Sensor ground circuit open
- Mode door actuator open
- Sensor ground circuit open
- Body control module
- Mode door feedback signal circuit shorted to ground
- Mode door feedback signal circuit open
- Mode door feedback signal circuit shorted to sensor ground circuit
- Mode door actuator open/shorted to ground
- Body control module - Mode door feedback signal open/shorted to ground
- Mode door feedback signal circuit shorted to voltage
- Body control module - Mode door feedback signal shorted to voltage
