Power Top Switch Open or Shorted to Battery

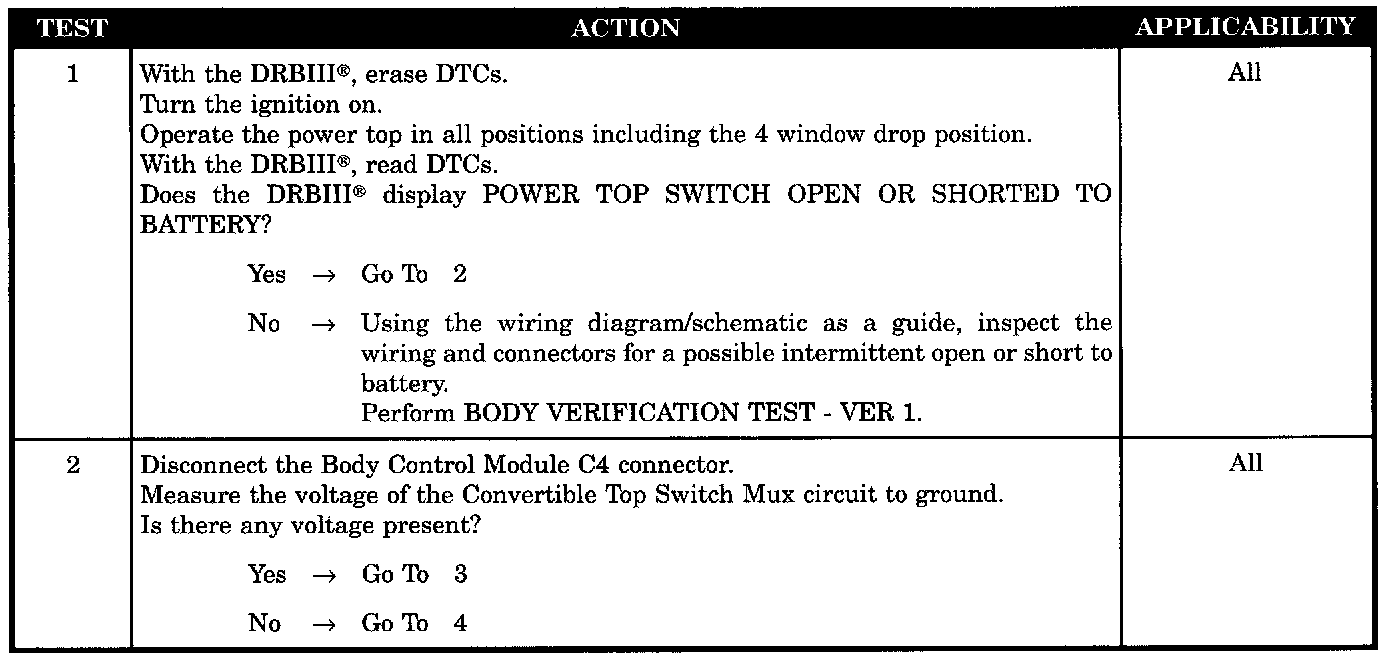

Test 1 - 2:

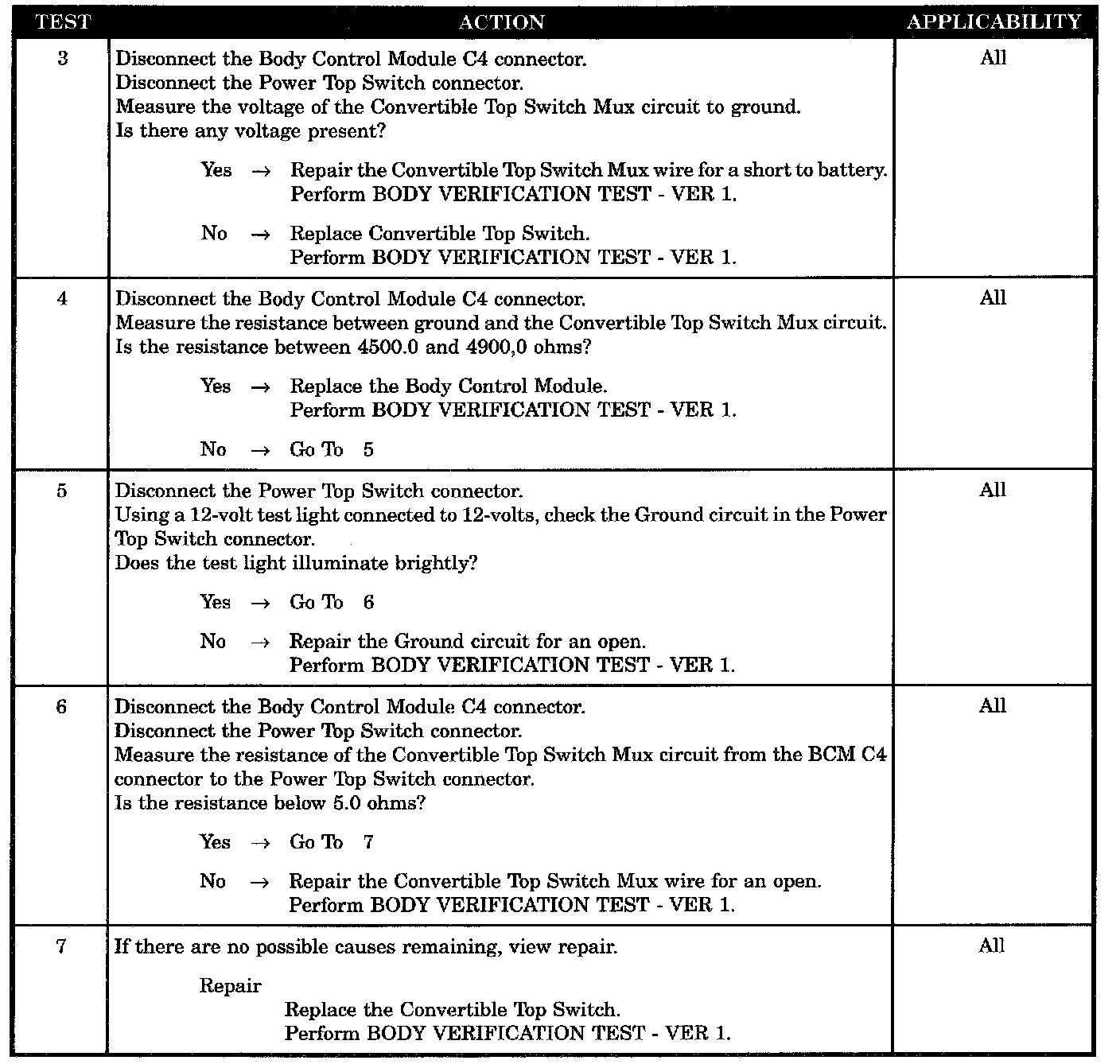

Test 3 - 7:

SYMPTOM
POWER TOP SWITCH OPEN OR SHORTED TO BATTERY

WHEN MONITORED
Whenever the ignition is on.

SET CONDITION
Normal power top switch voltage is approximately 1.0 to 11.5 volts. When the BCM senses voltage above this threshold for over 10 seconds, this code will set.

POSSIBLE CAUSES
- DTC present
- Convertible top switch ground open
- Convertible top switch MUX wire open
- Convertible top switch MUX wire short to battery
- Convertible top switch open
- Convertible top switch short to battery
- Body control module - Convertible top switch MUX open
