Compass Failure

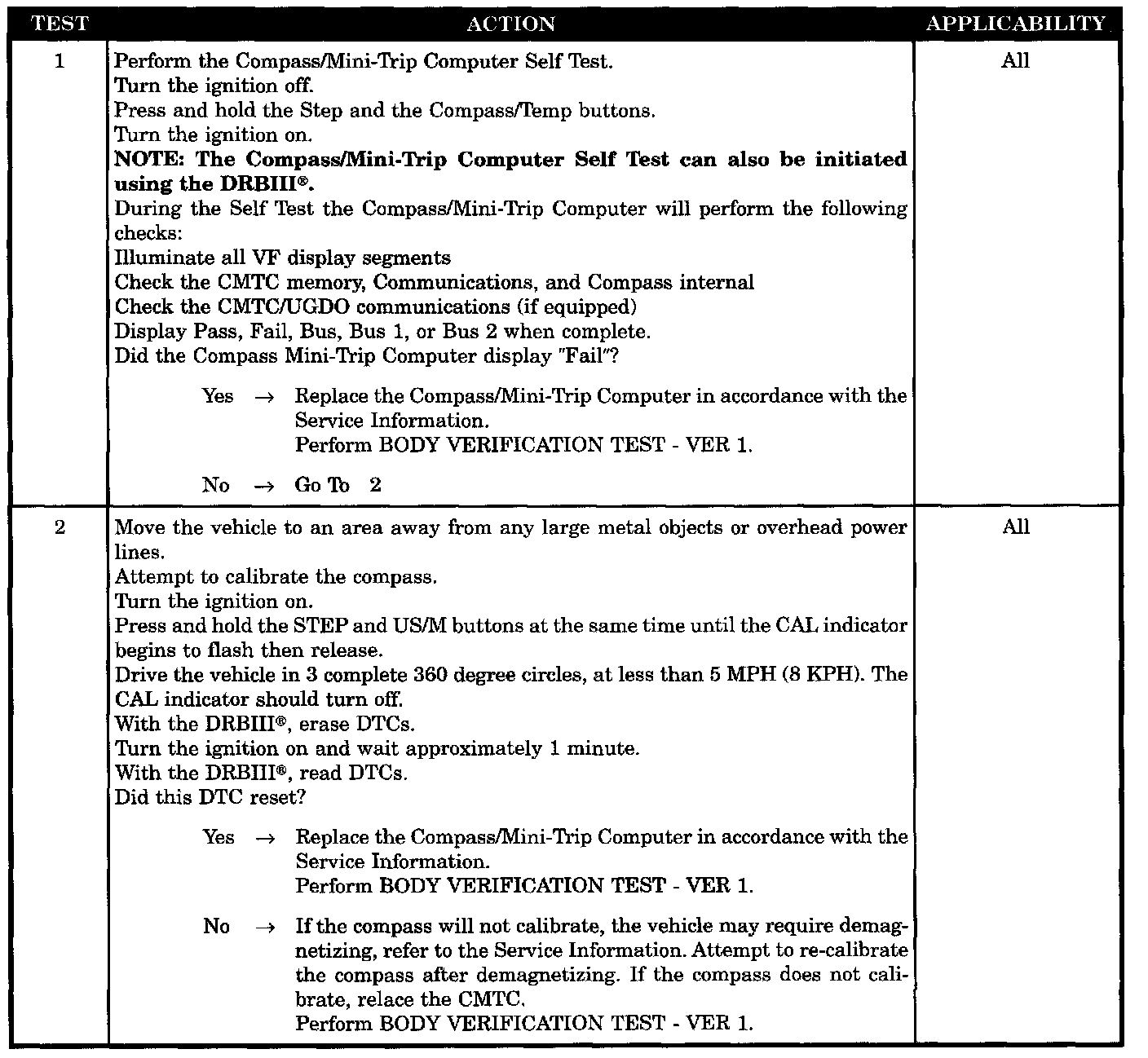

Test 1 - 2:






SYMPTOM
COMPASS FAILURE

POSSIBLE CAUSES
- Compass will not calibrate
- Compass/Mini-Trip computer
