No Response From Right SIACM

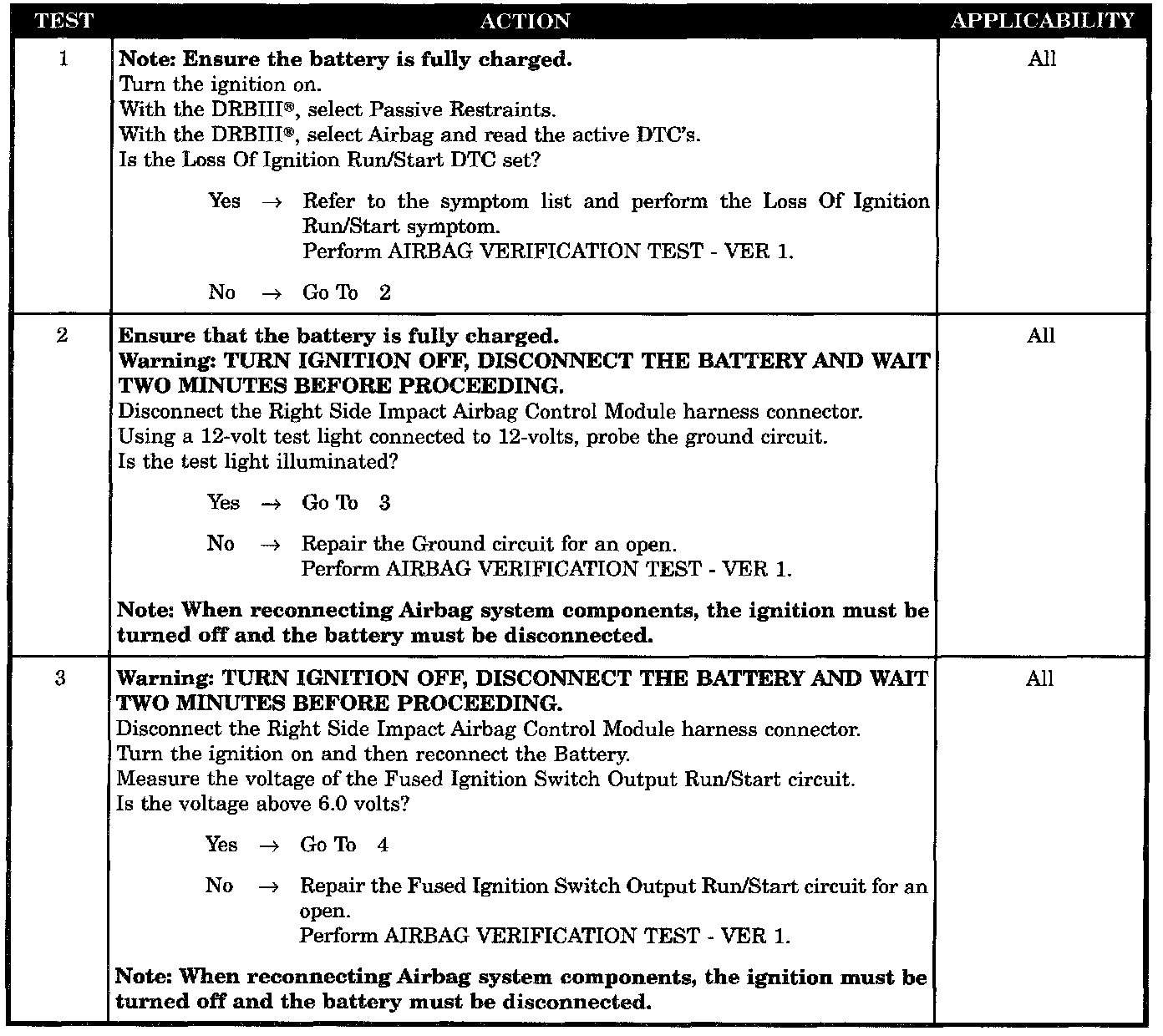

Test 1 - 3:

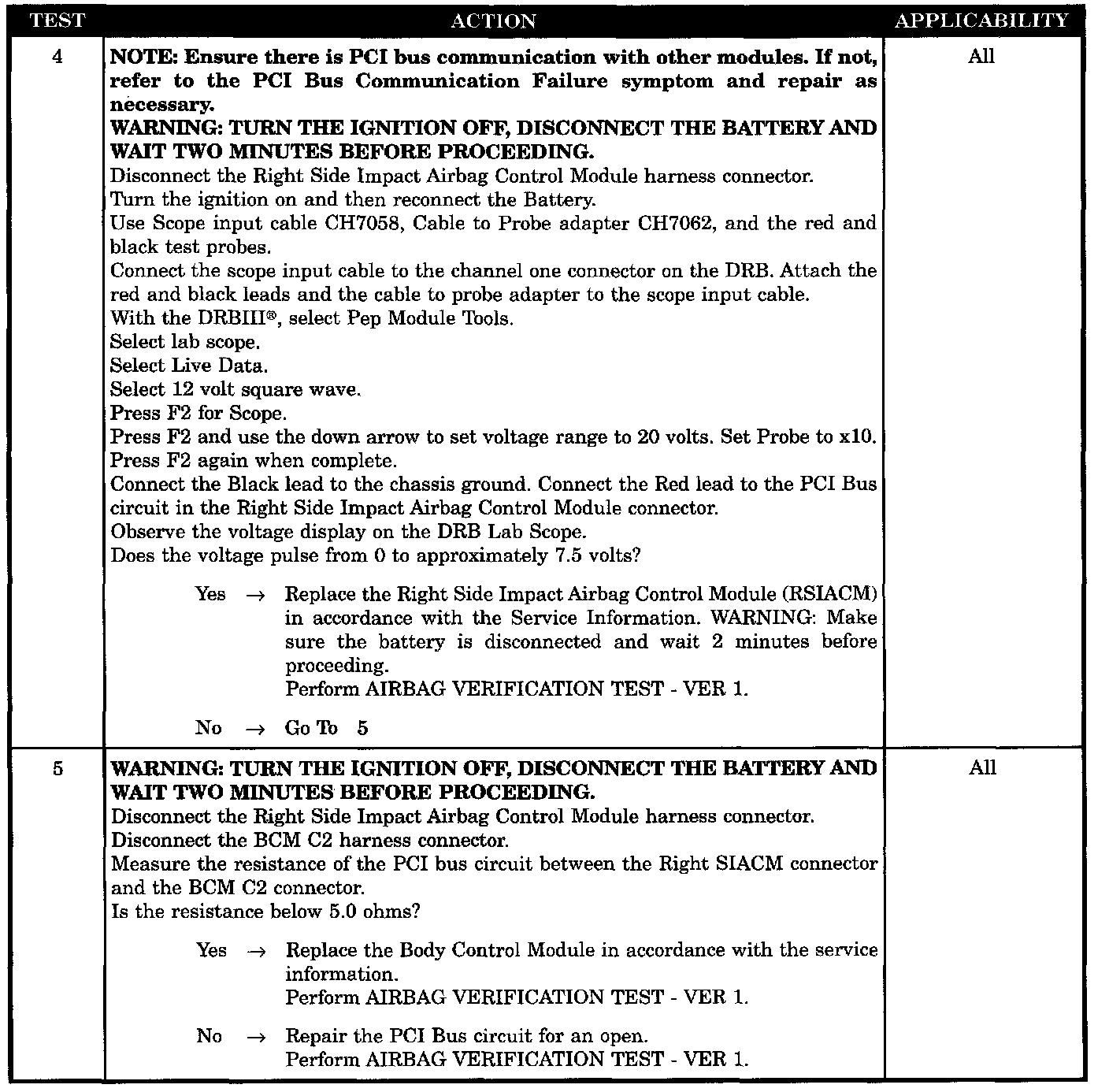

Test 4 - 5:
SYMPTOM
NO RESPONSE FROM RIGHT SIACM
POSSIBLE CAUSES
- Interrogate ORC
- Ground circuit open
- Fused ignition switch output run/start circuit open
- Right side impact airbag control module
- PCI BUS circuit open
- Body control module
