No Response From PCM (PCI Bus) - Powertrain

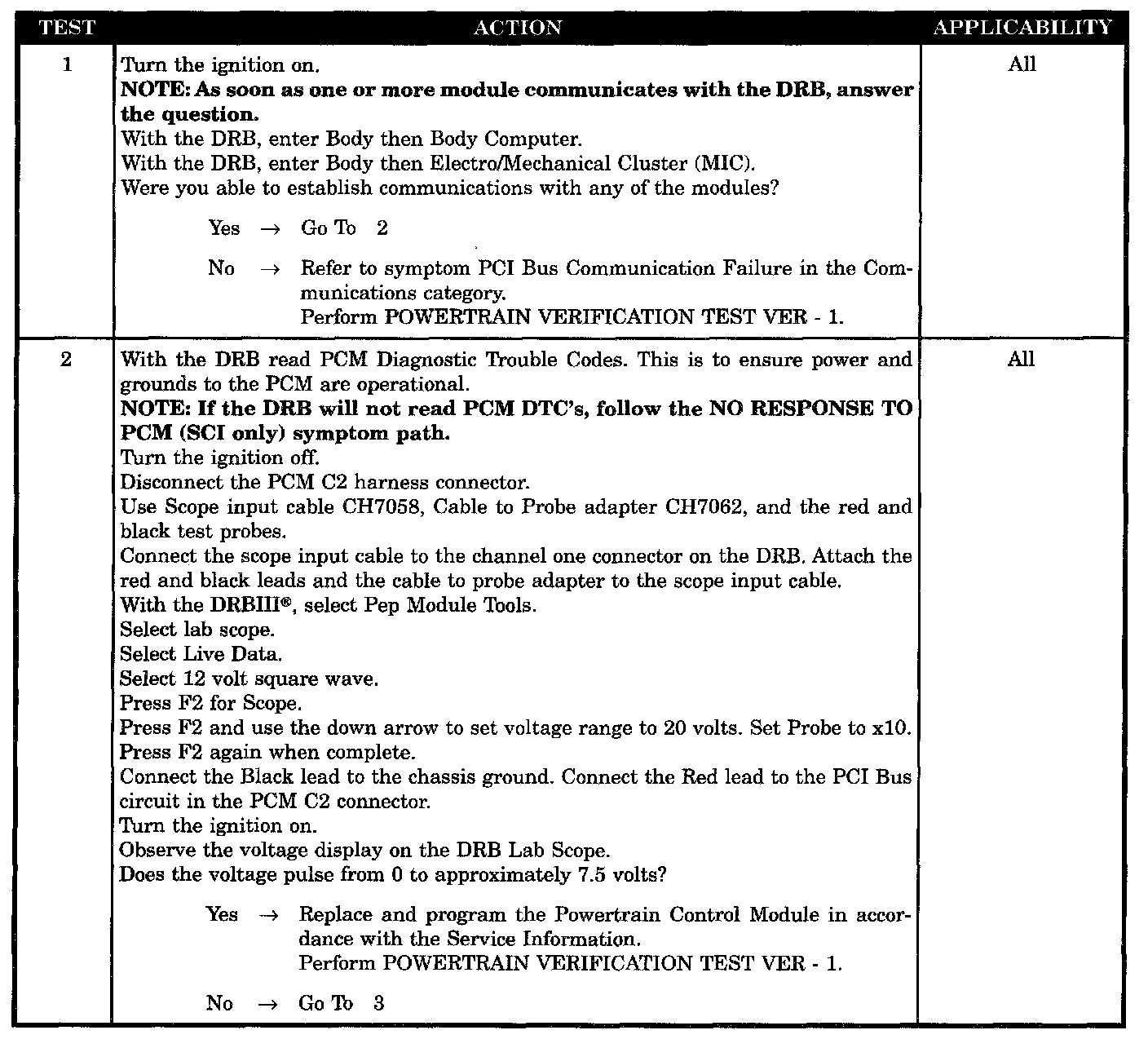

Tests 1 - 2:

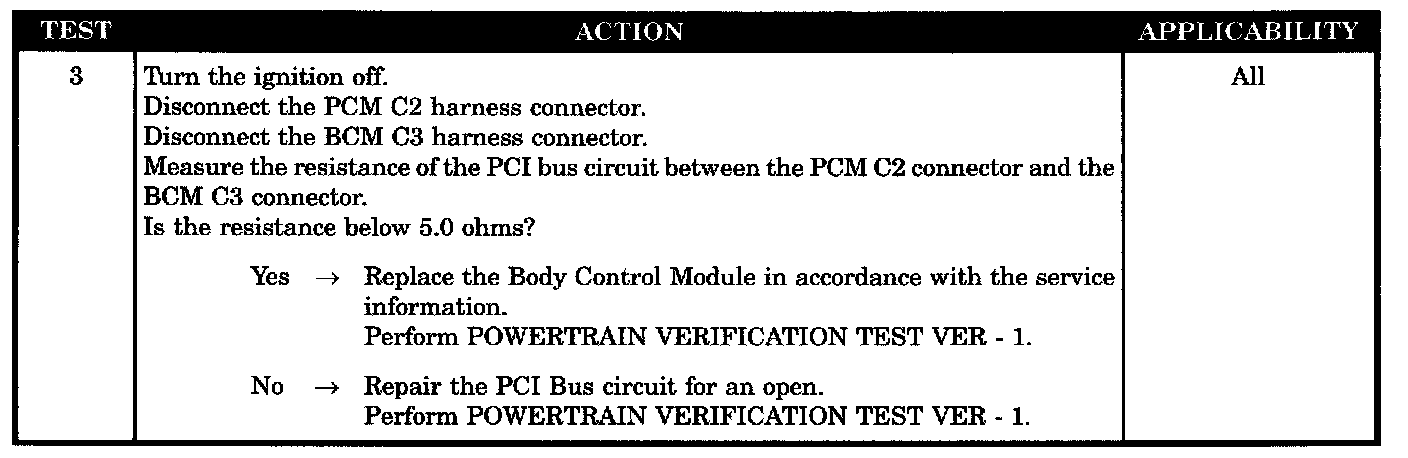

Test 3:

SYMPTOM
NO RESPONSE FROM PCM (PCI BUS)

POSSIBLE CAUSES
- PCM PCI No Response
- Powertrain Control Module
- PCI Bus Circuit Open
- Body Control Module
