Bus +/- Signals Open or No Response From Instrument Cluster

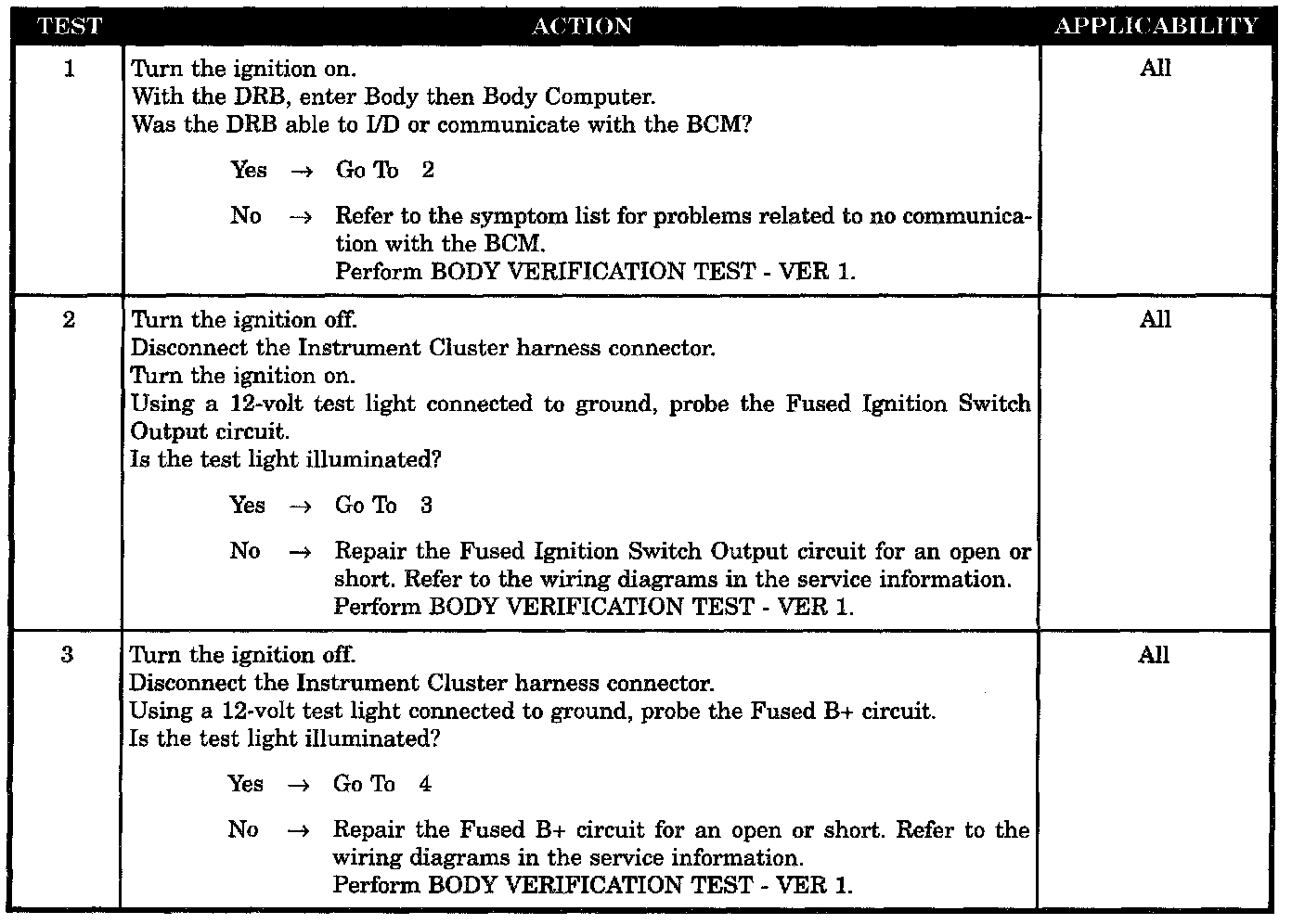

Test 1 - 3:

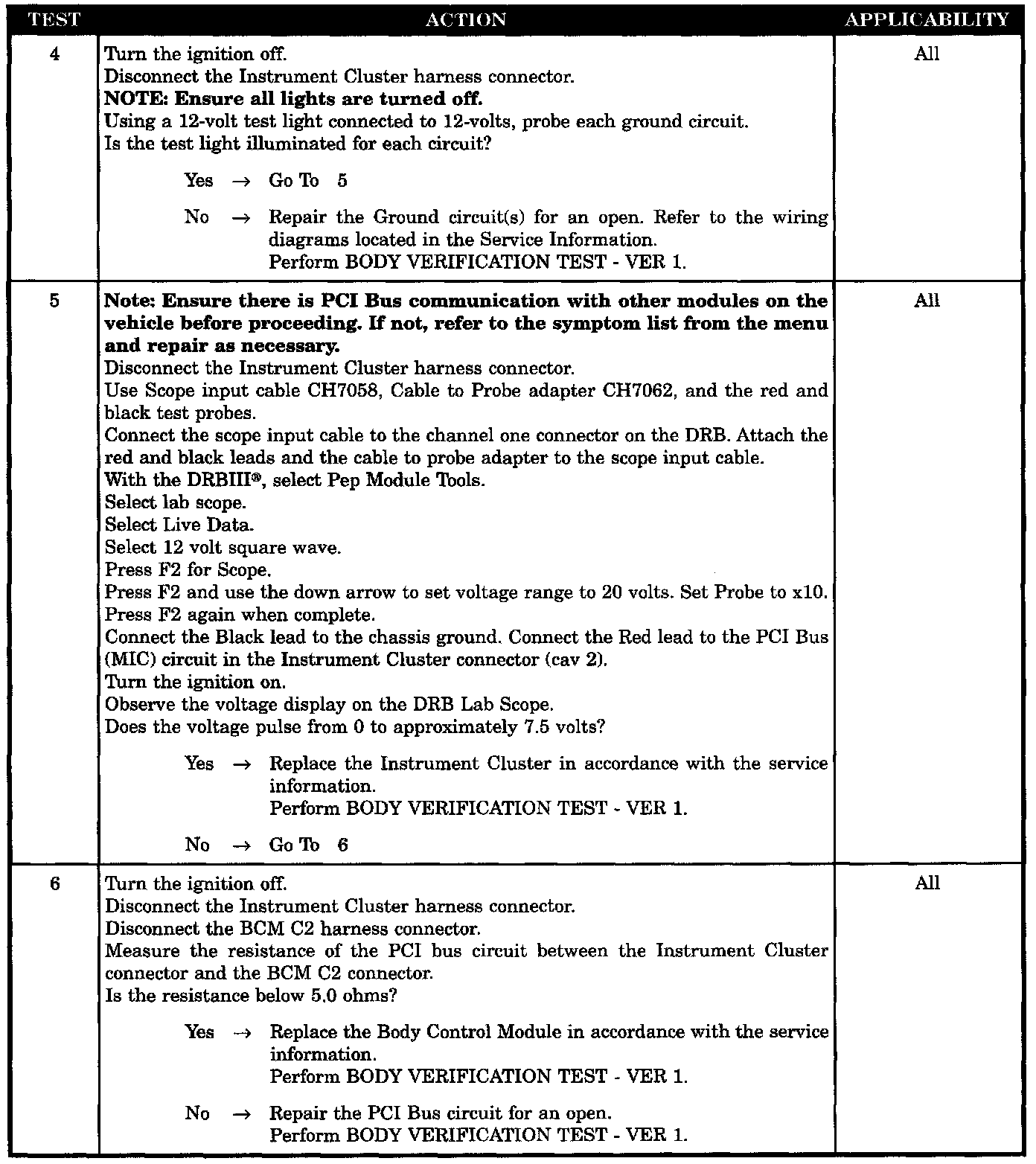

Test 4 - 6:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO REX3PONSE FROM INSTRUMENT CLUSTER

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused ignition switch output circuit open
- Fused B+ circuit open
- Ground circuit open
- Instrument cluster
- PCI BUS circuit open
- Body control module
