Bus +/- Signals Open or No Response From Body Control Module

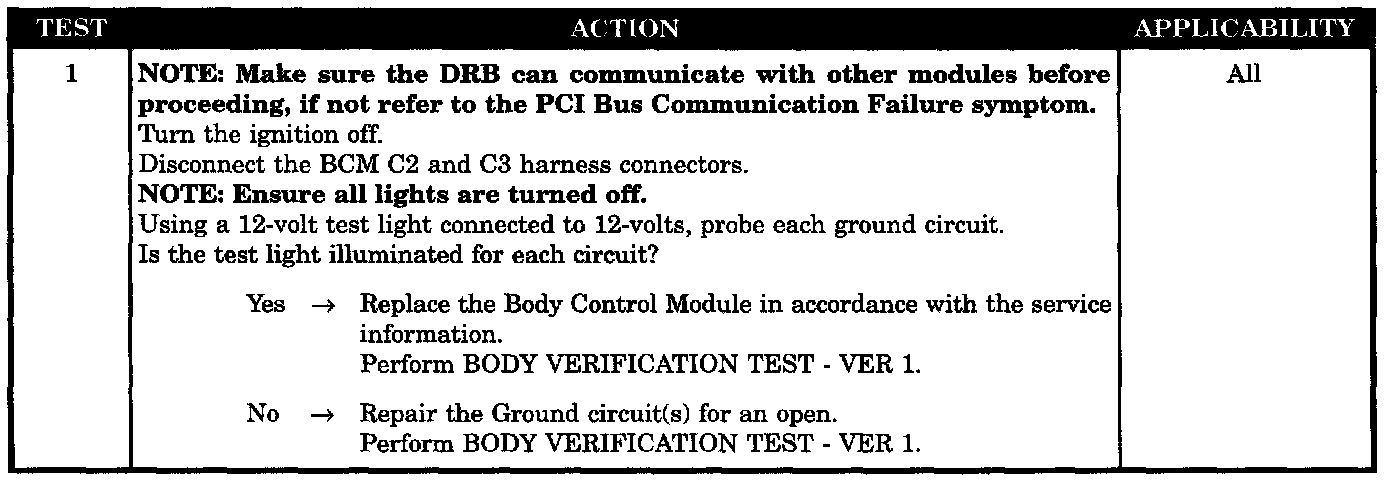

Test 1:






SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM BODY CONTROL MODULE

POSSIBLE CAUSES
- Open ground circuits
- Body control module
