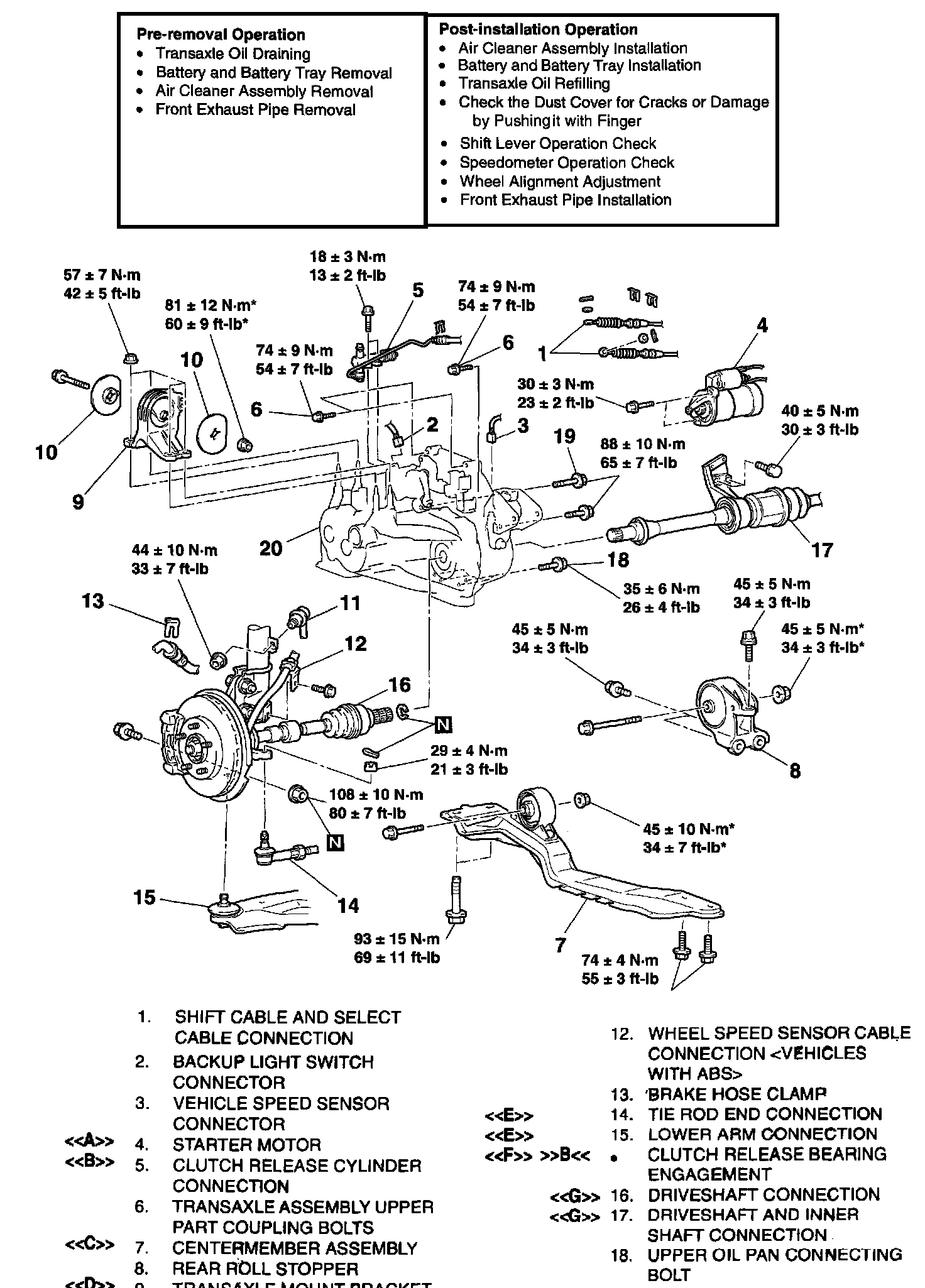

Installation

�6�/<3.0L ENGINE>:

SERVICE POINTS







>> A <<
TRANSAXLE ASSEMBLY INSTALLATION

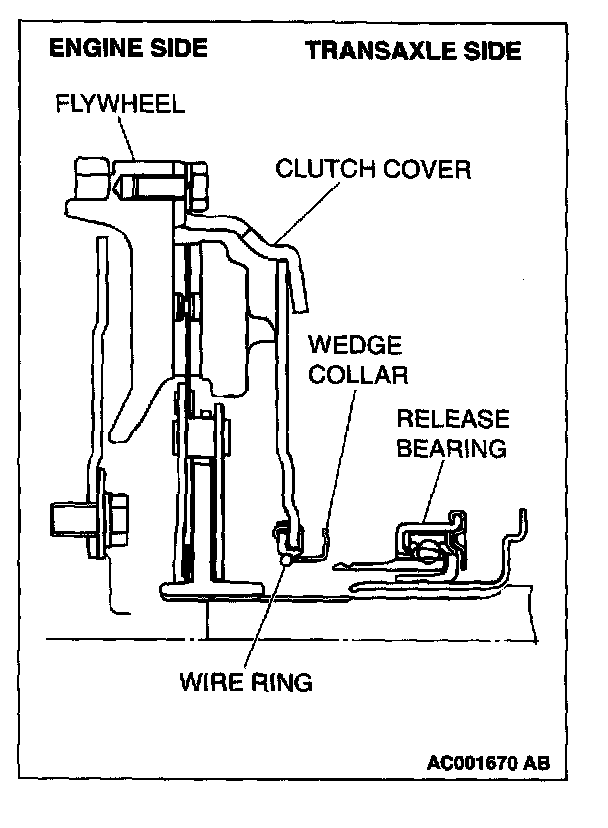

CAUTION: On the pull-type clutch, do not roll the transaxle assembly when installing it to the engine. If the transaxle assembly is rolled, the wedge collar and the wire ring will be deformed, causing a clutch malfunction due to improper engagement of the wedge collar and the wire ring.







>> B <<
CLUTCH RELEASE BEARING CONNECTION

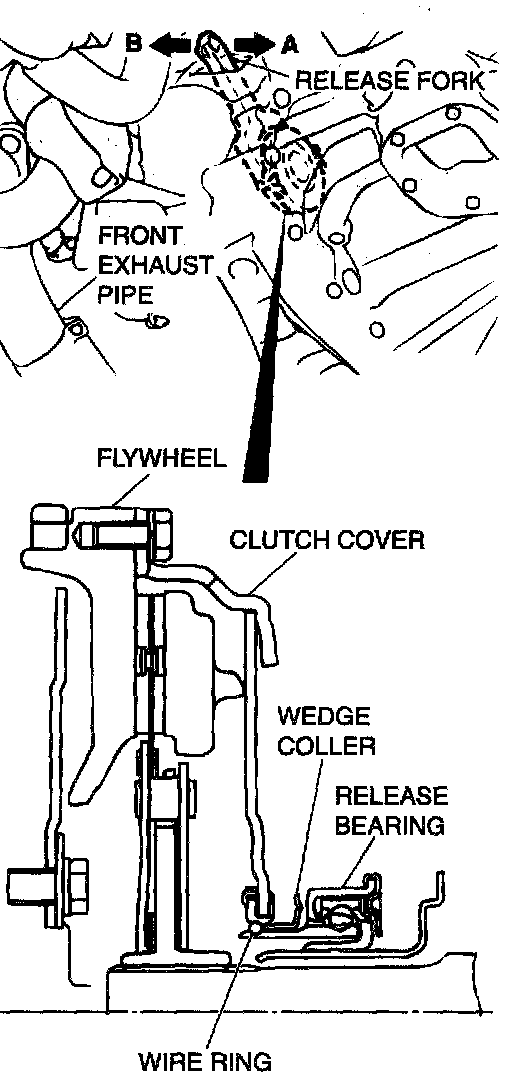

1. Move the release fork to the "A" direction, and engage the release bearing with the wedge collar.
2. When the release fork is moved to the "B" direction, the release fork should drag.








>> C <<
TRANSAXLE MOUNT STOPPER INSTALLATION

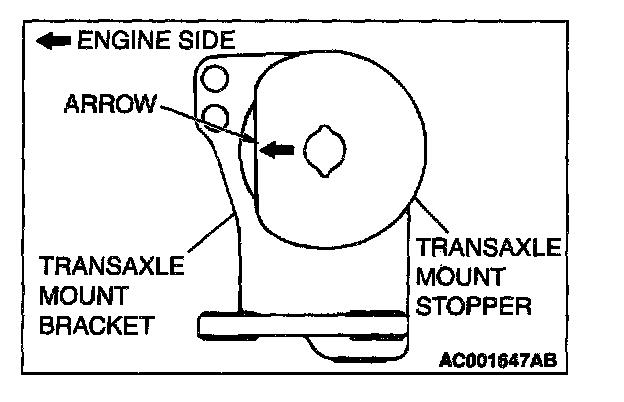

Install the transaxle mount stopper so that the arrow points as shown in the illustration.
