Removal

INPUT SHAFT

Input Shaft / <F5M51> 3.0L:

REMOVAL SERVICE POINTS






<< A >>

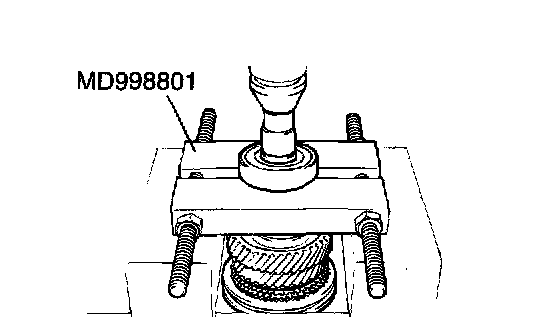

BALL BEARING REMOVAL
1. Using special tool MD998801, support the ball bearing, and then set them on the press.
2. Push down on the input shaft with the press and extract the ball bearing.







<< B >>

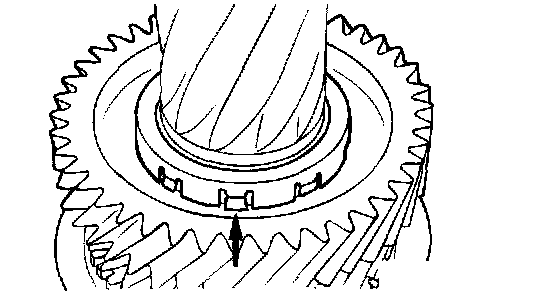

THRUST PLATE STOPPER REMOVAL
Using a screwdriver, pry up the position shown in the illustration and remove the thrust plate stopper.







<< C >>

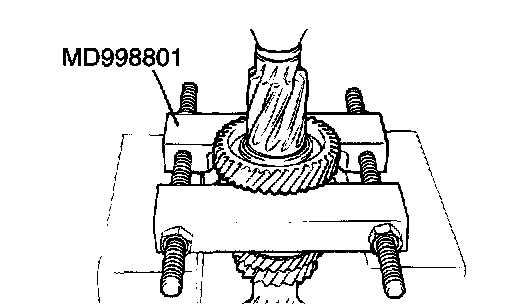

5TH SPEED GEAR REMOVAL
1. Using special tool MD998801, support the 5th speed gear, and then set them on the press.
2. Push down on the input shaft with the press and take off the 5th speed gear.








<< D >>

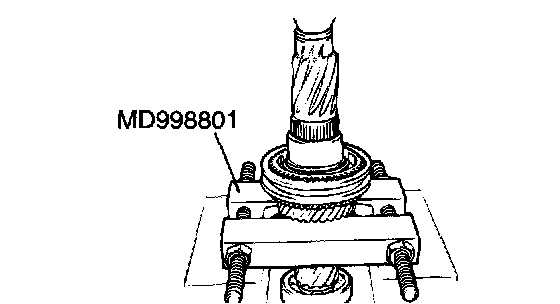

4TH SPEED GEAR SLEEVE REMOVAL
1. Using special tool MD998801, support the 3rd speed gear, and then set them on the press.
2. Push down on the input shaft with the press and remove the 4th speed gear sleeve.







<< E >>

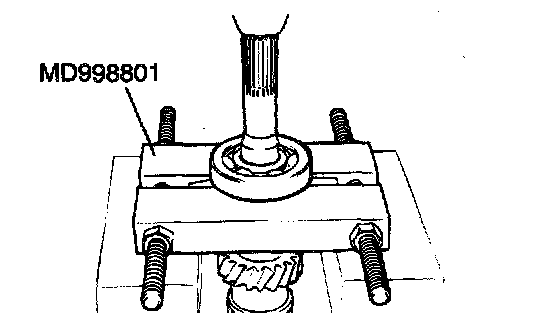

BALL BEARING REMOVAL
1. Using special tool MID998801, support the ball bearing, and then set them on the press.
2. Push down on the input shaft with the press and extract the ball bearing.
