Removal

Clutch Housing / <F5M51> 3.0L:

REMOVAL SERVICE POINTS









<< A >>
OUTER RACE REMOVAL

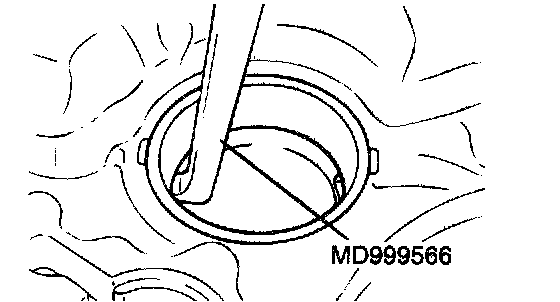

Using special tool MD999566, remove the outer race from the clutch housing.







<< B >>
OUTER RACE REMOVAL

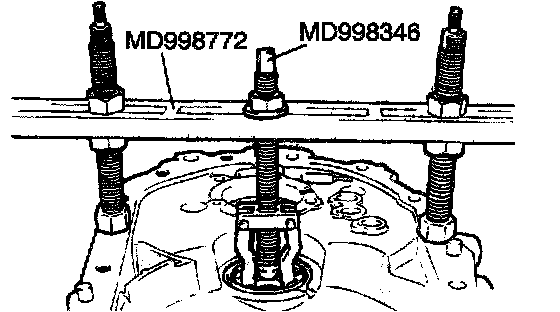

1. Set special tools MD998772 and M0998346 as indicated in the figure.
2. Turn the nut on special tool MD998846 to pull up on the tool and take out the outer race.






<< C >>
OUTER RACE REMOVAL

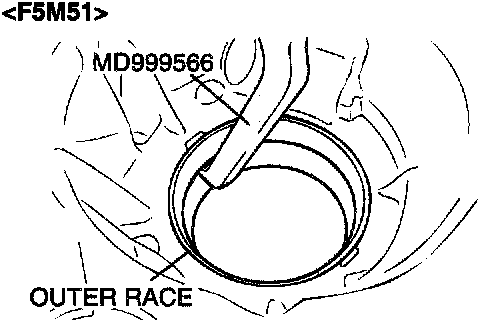

Using special tool MD999566, remove the outer race from the clutch housing.
