System Specifications

MANUAL TRANSMISSION

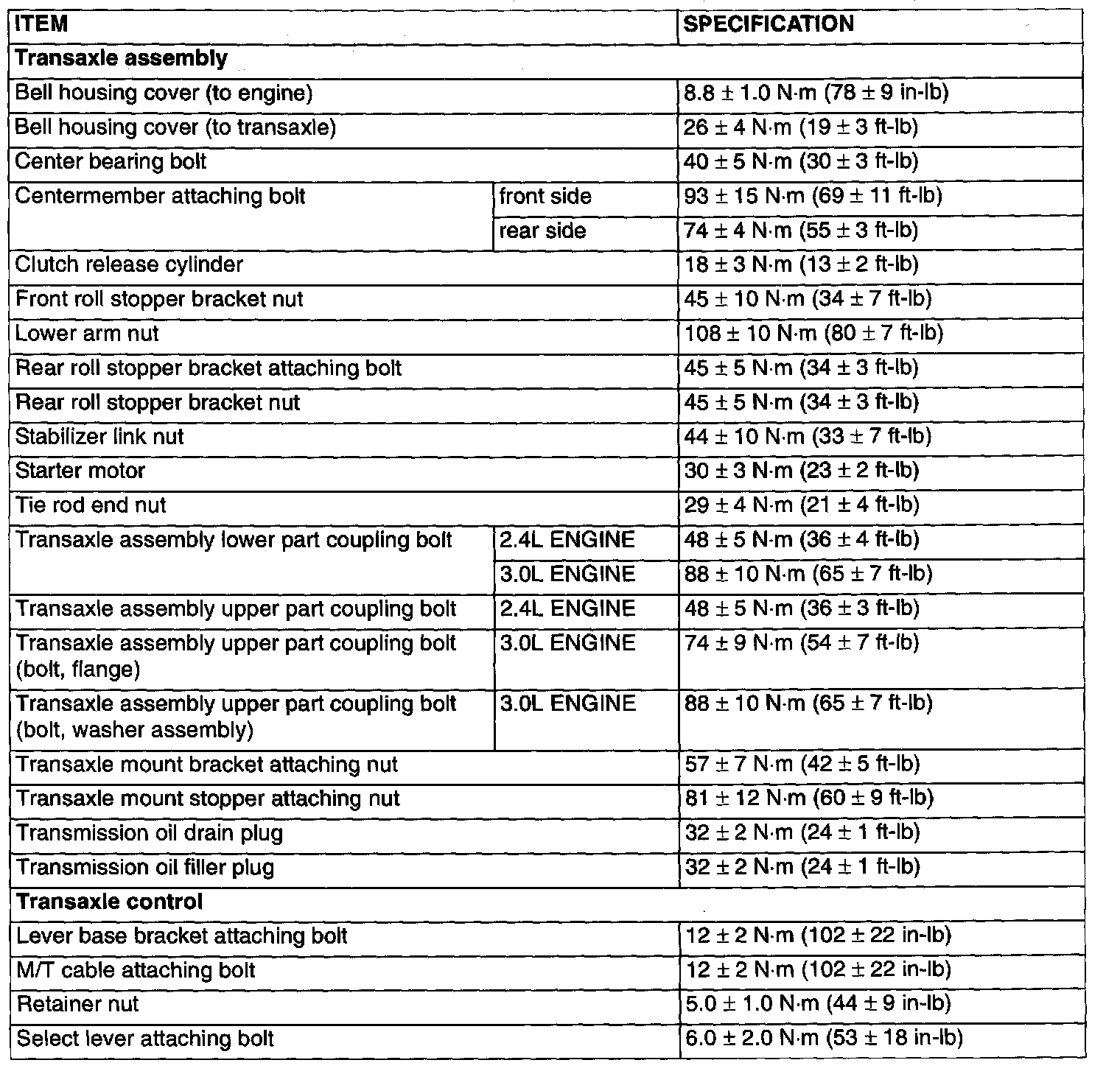

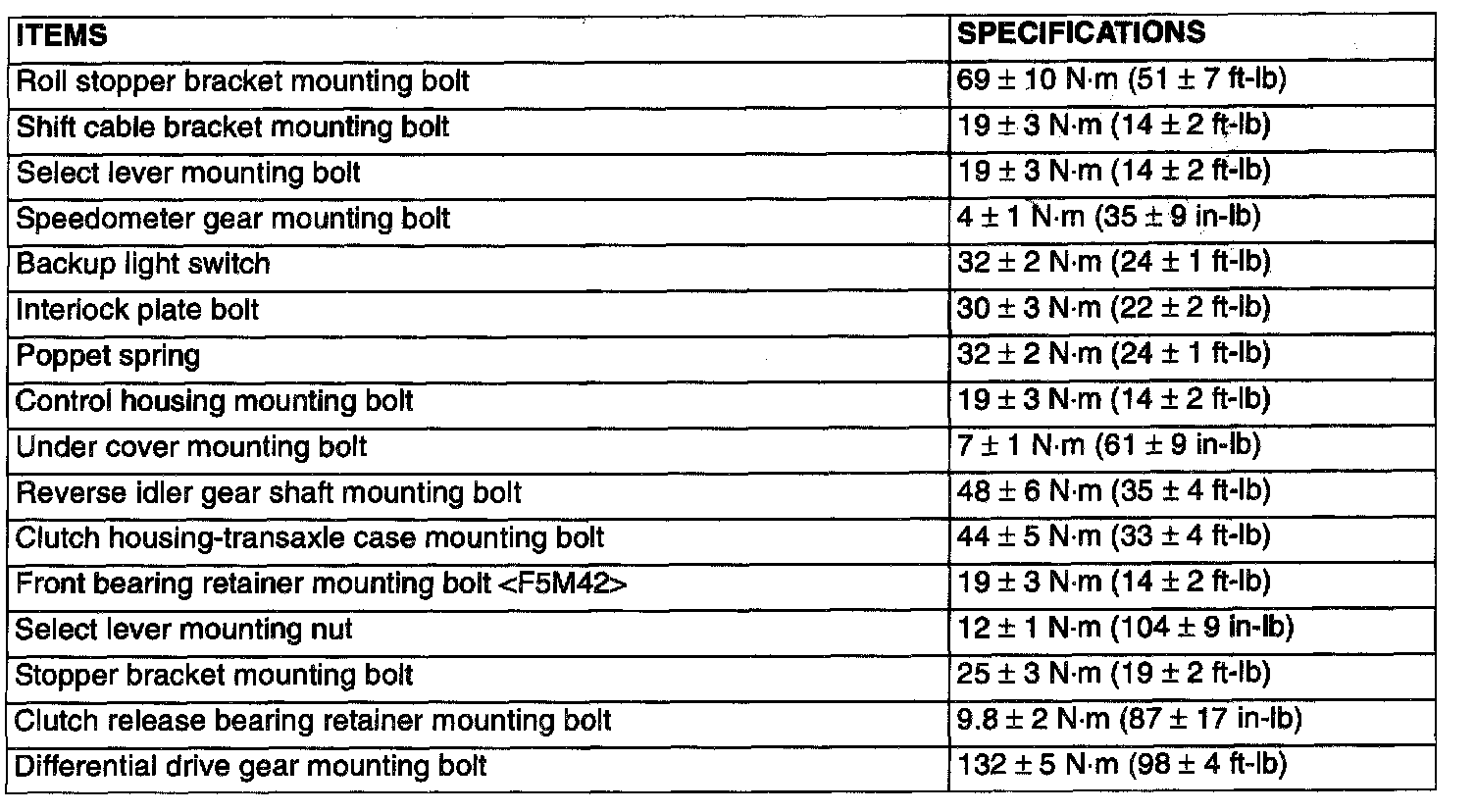

Fastener Tightening Specifications:

Overhaul Fastener Tightening Specifications:

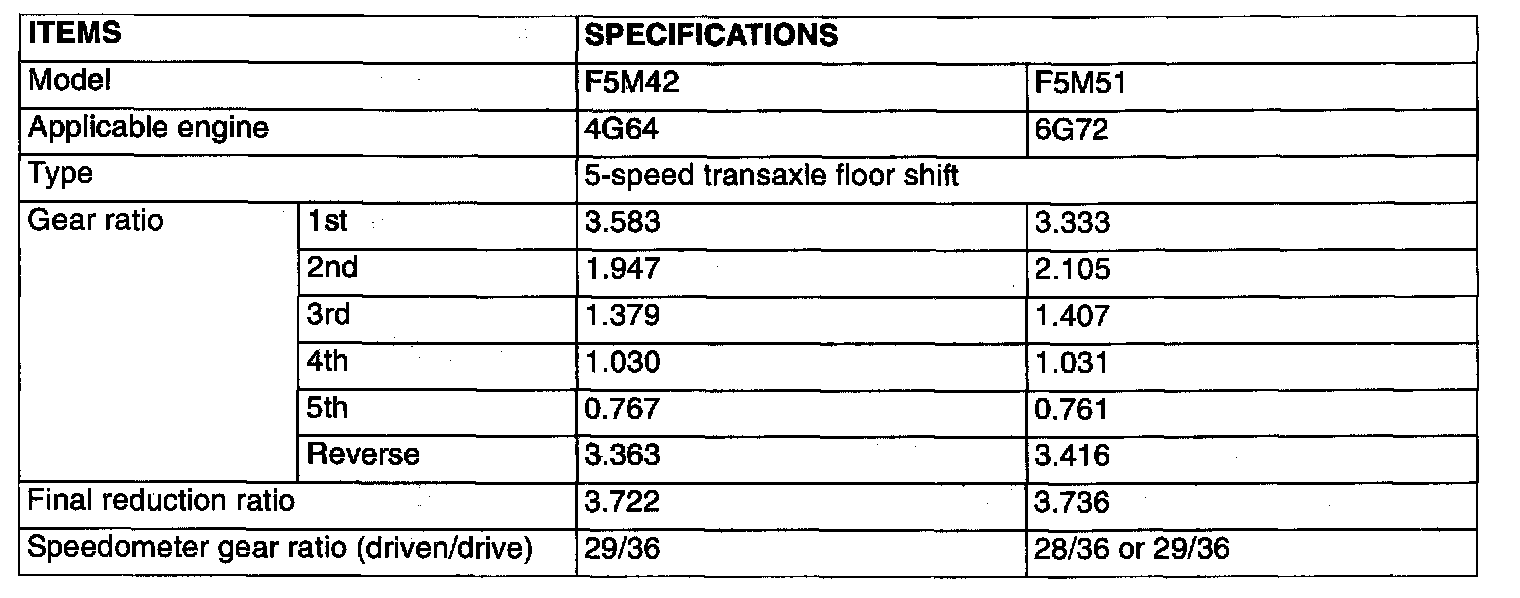

General Specifications:

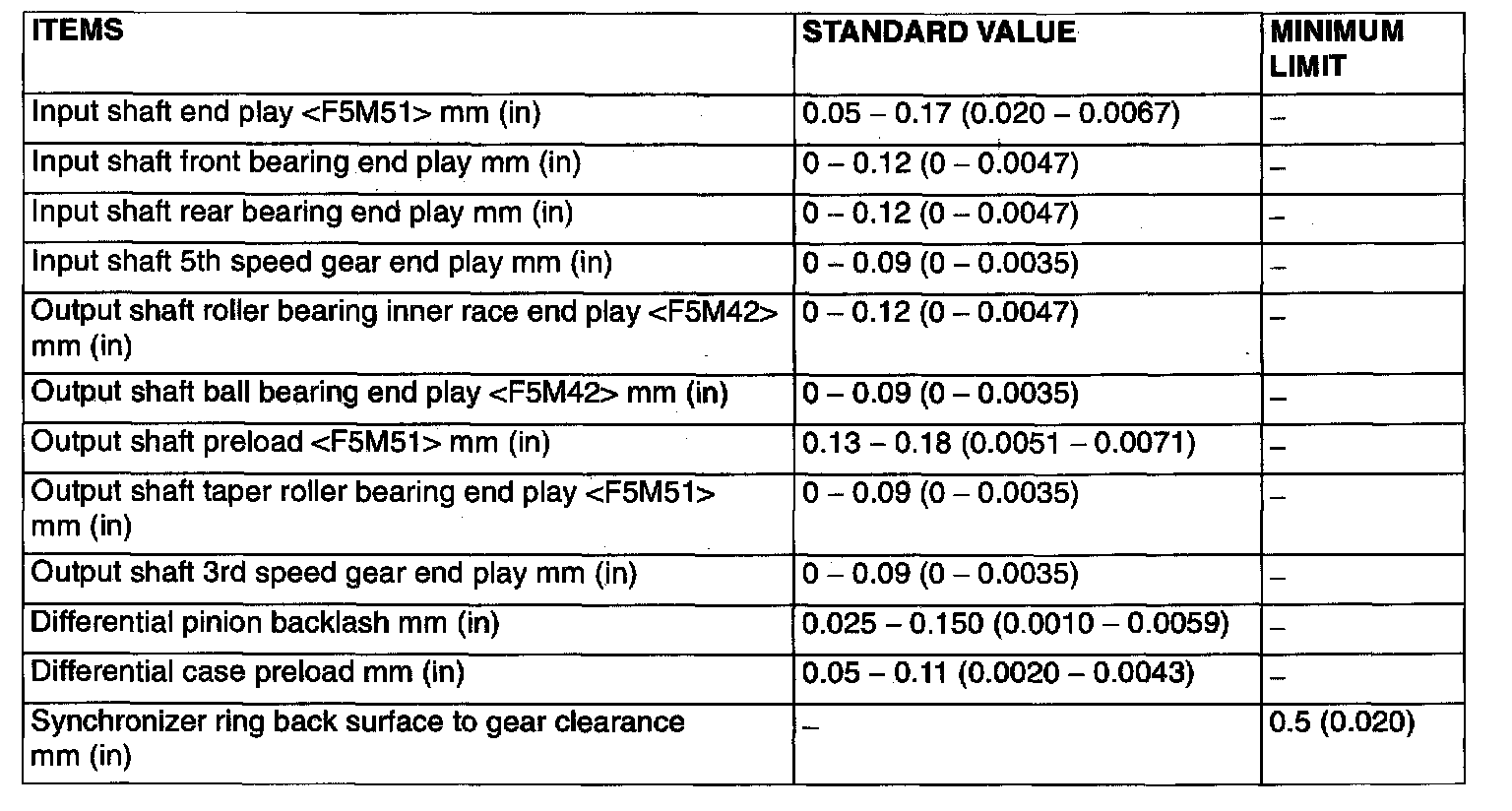

Service Specifications:

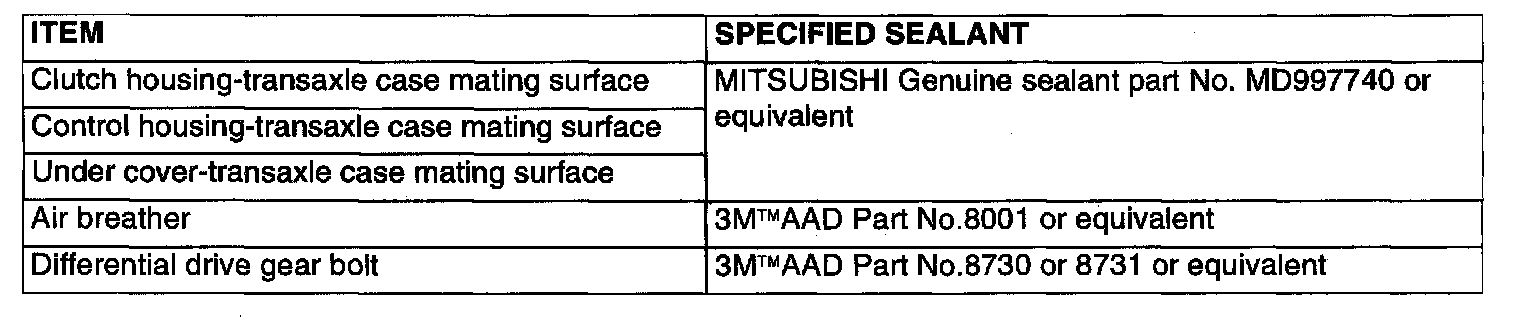

Sealants and Adhesives:

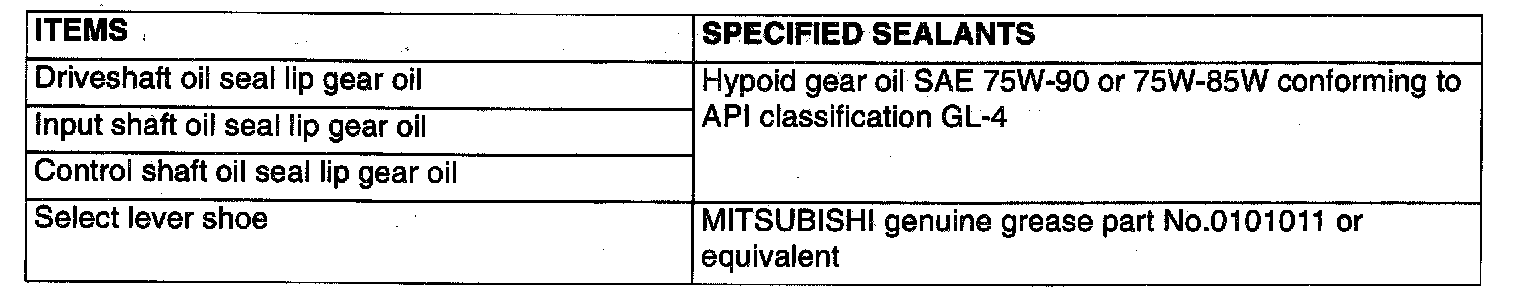

Lubricants:

Snap Rings, Spacers and Thrust Plate for Adjustment

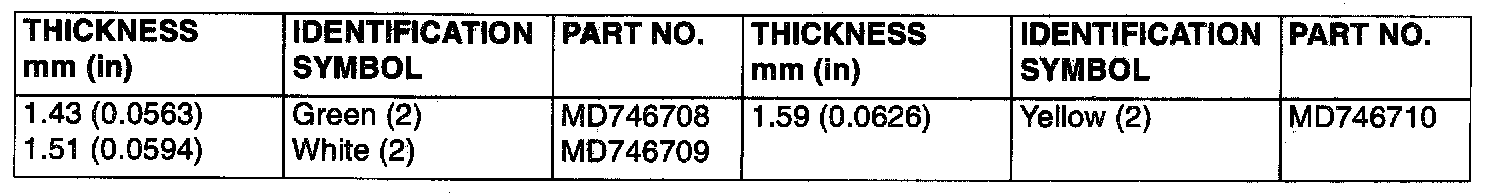

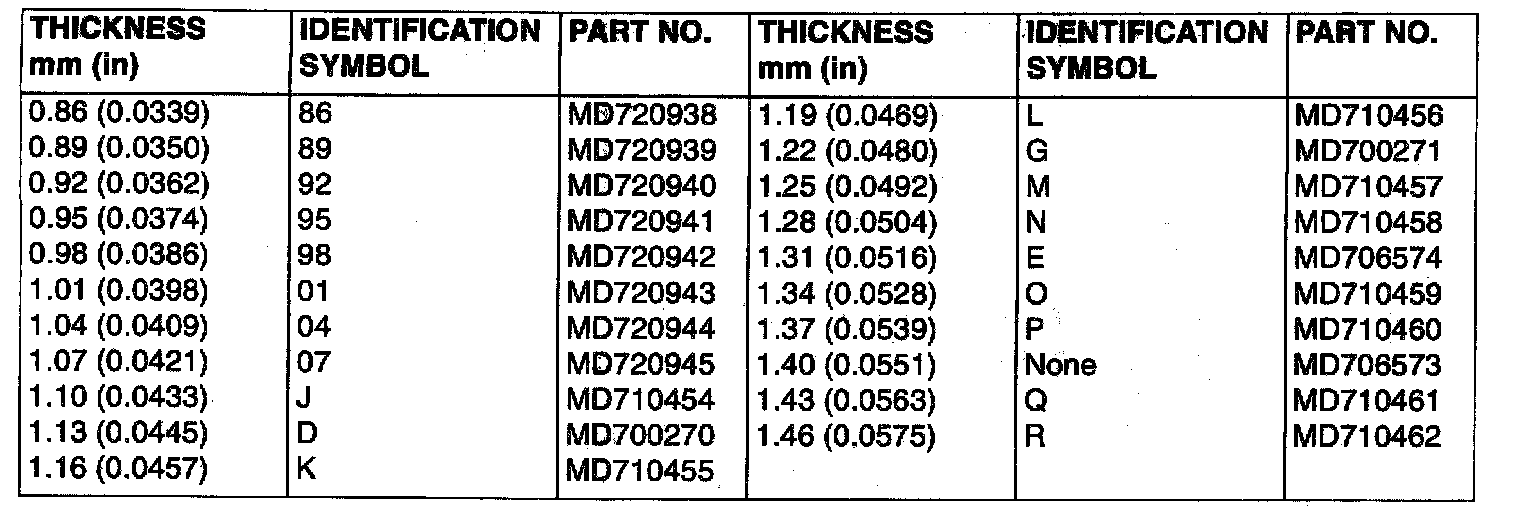

Snap Ring
(For adjustment of input shaft front bearing end play)

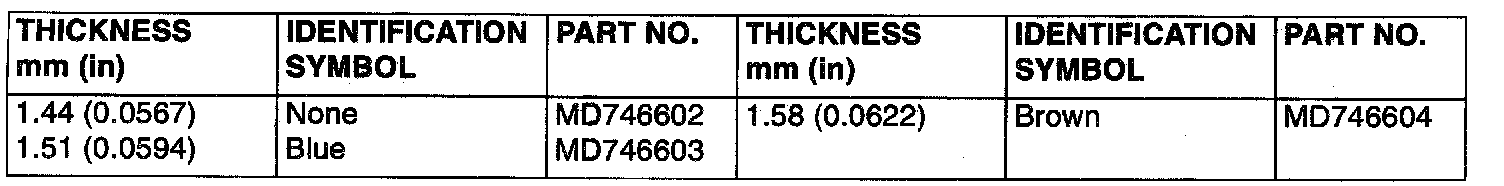

Thrust Plate
(For adjustment of input shaft 5th speed gear end play)

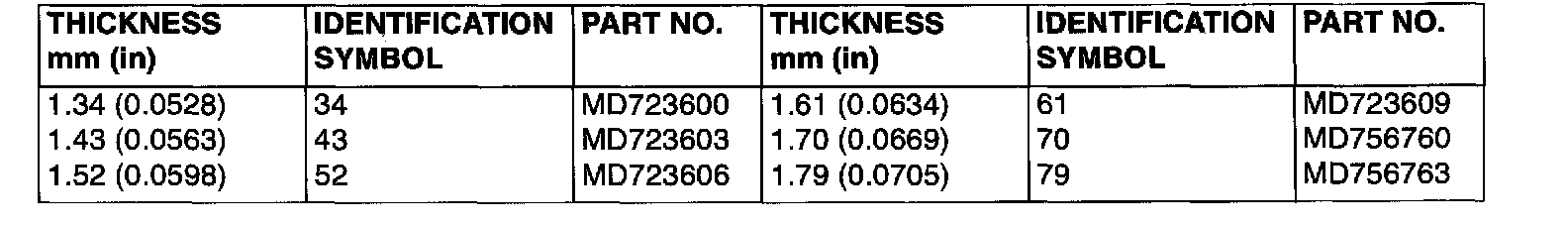

Snap Ring
(For adjustment of input shaft rear bearing end play

Snap Ring
(For adjustment of output shaft 3rd speed gear end play)

Snap Ring
(For adjustment of output shaft rear bearing end play)

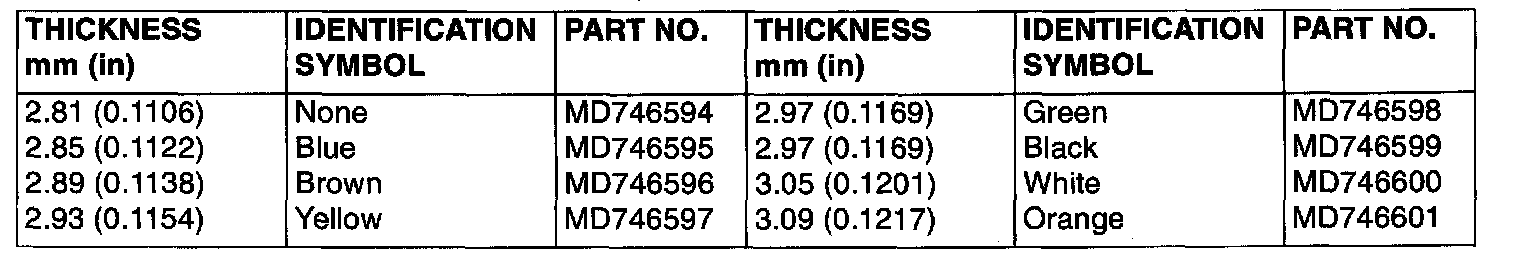

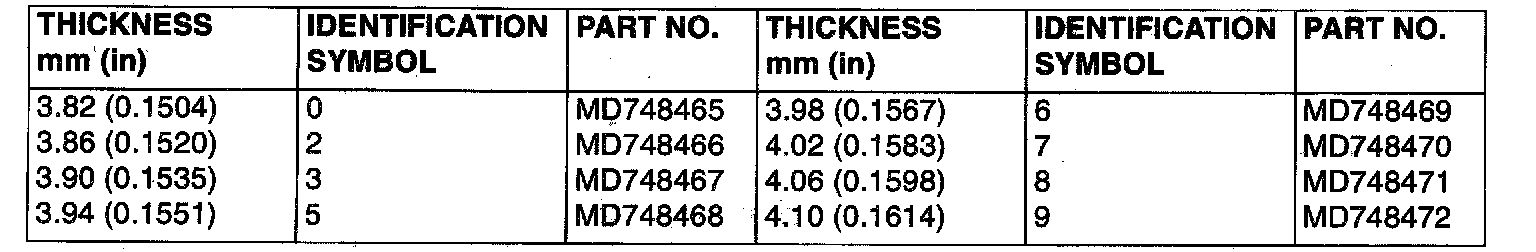

Spacer
(For adjustment of input shaft end play)

Spacer
(For adjustment of output shaft preload)

Spacer
(For adjustment of differential case preload)

Spacer
(For adjustment of differential case backlash)
