Engine Overhaul Specifications

ENGINE OVERHAUL

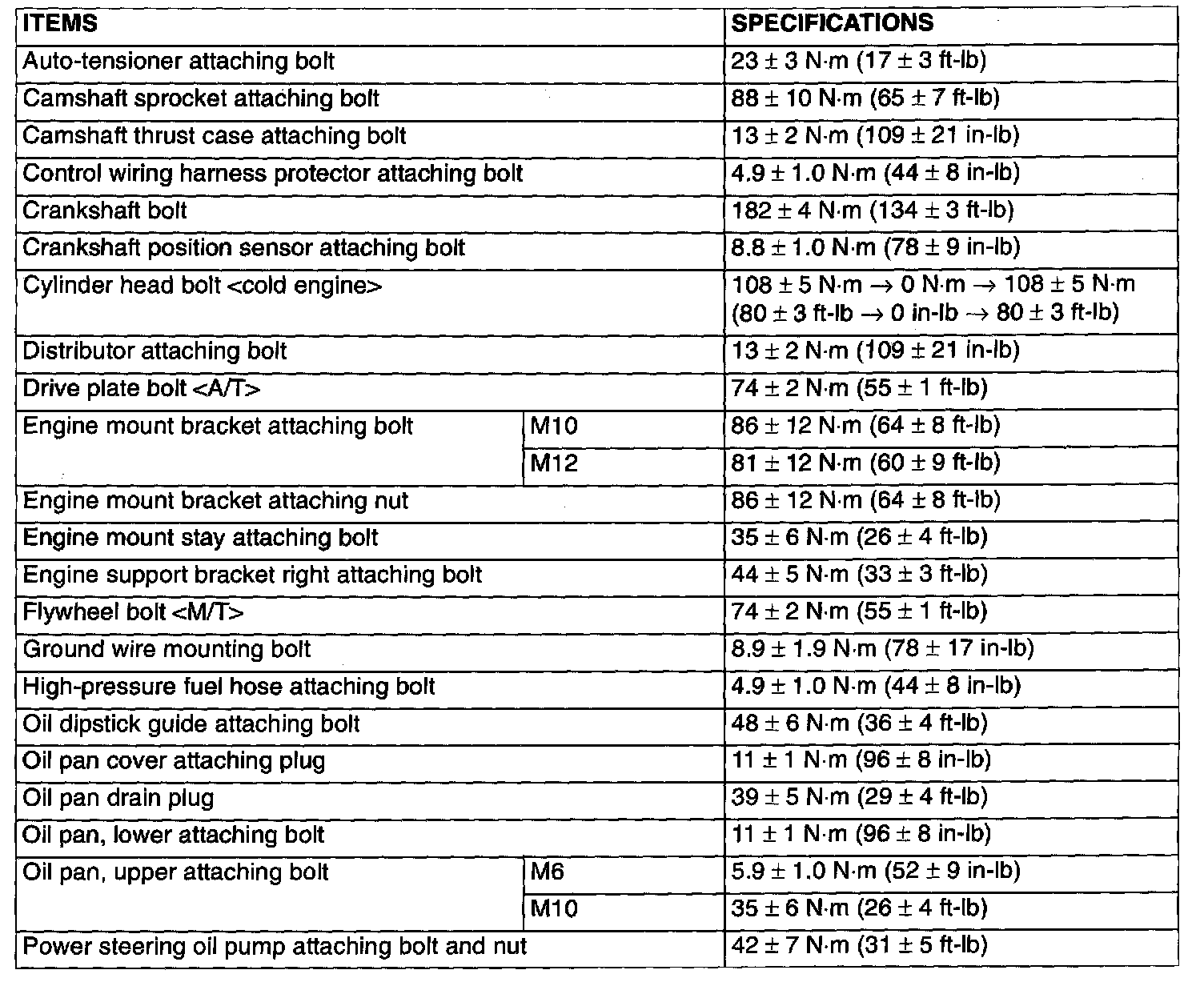

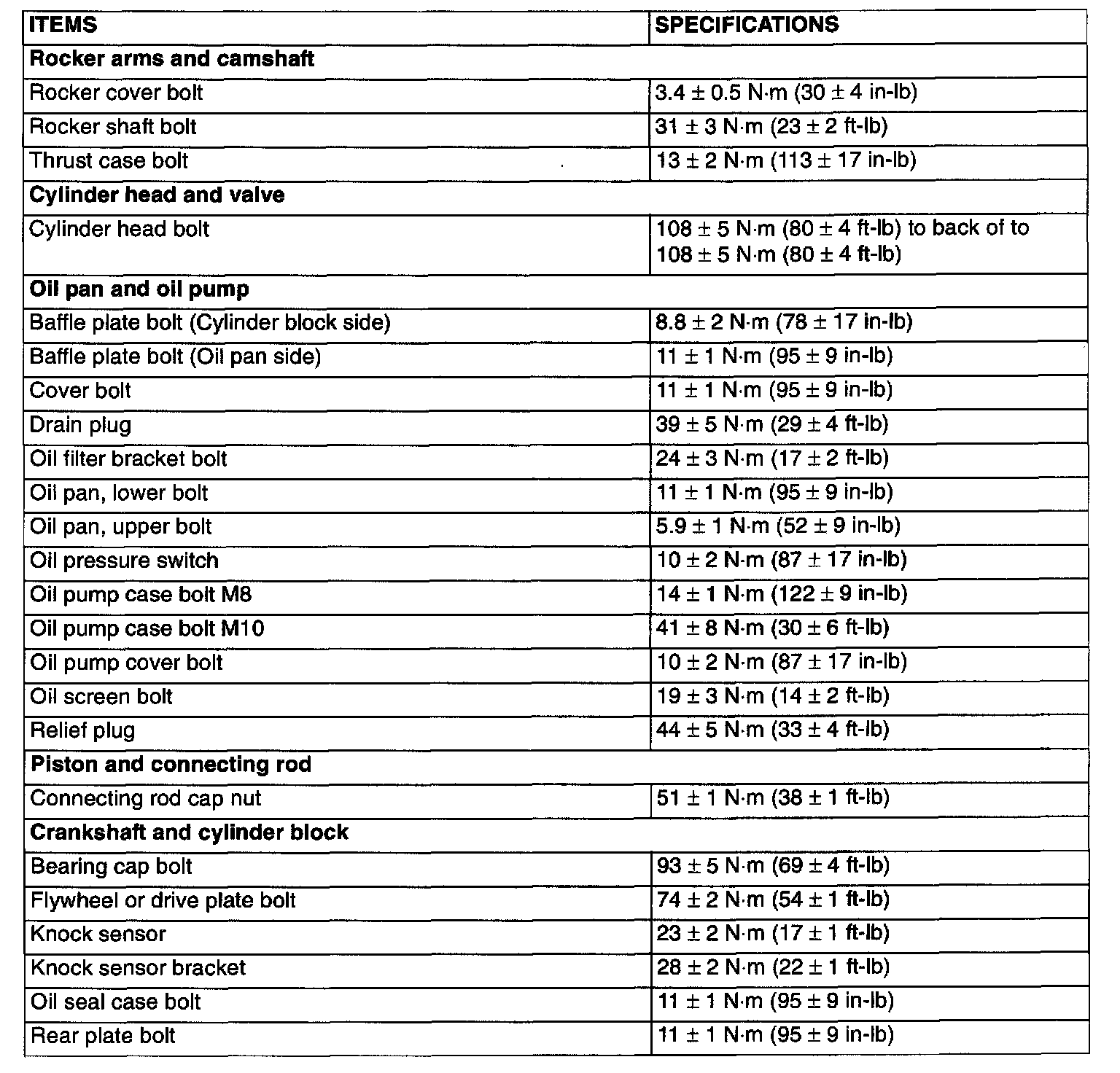

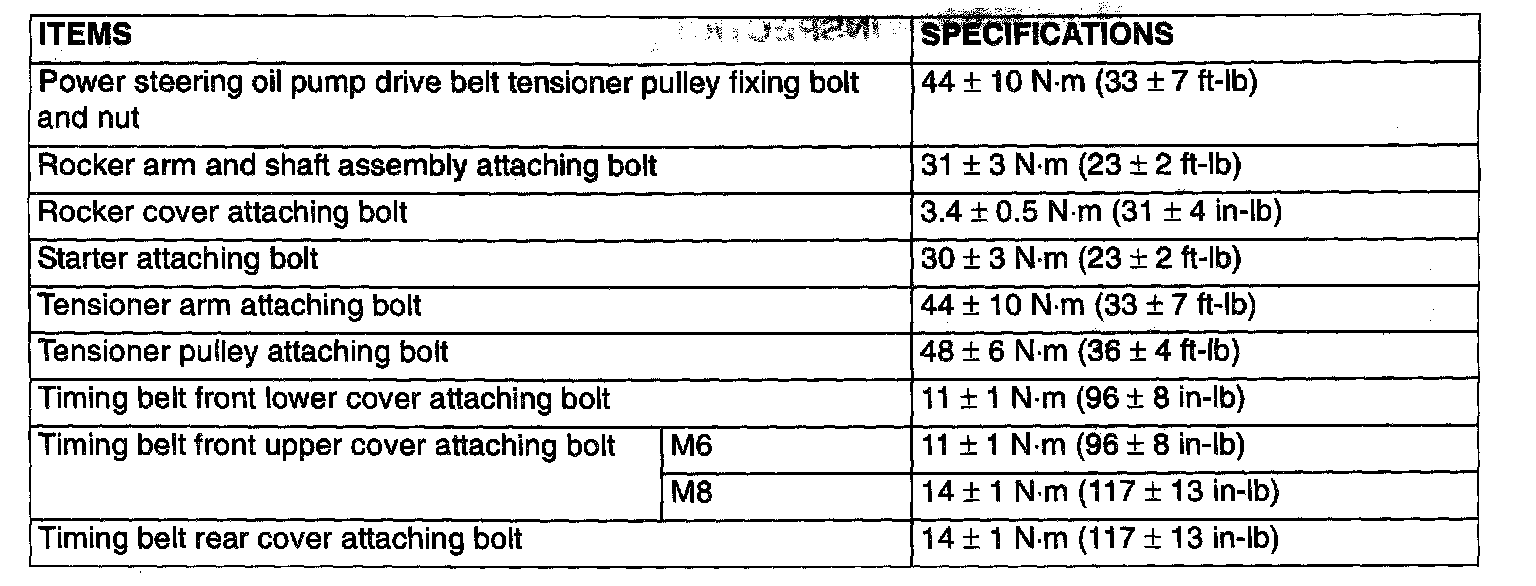

Fastener Tightening Specifications

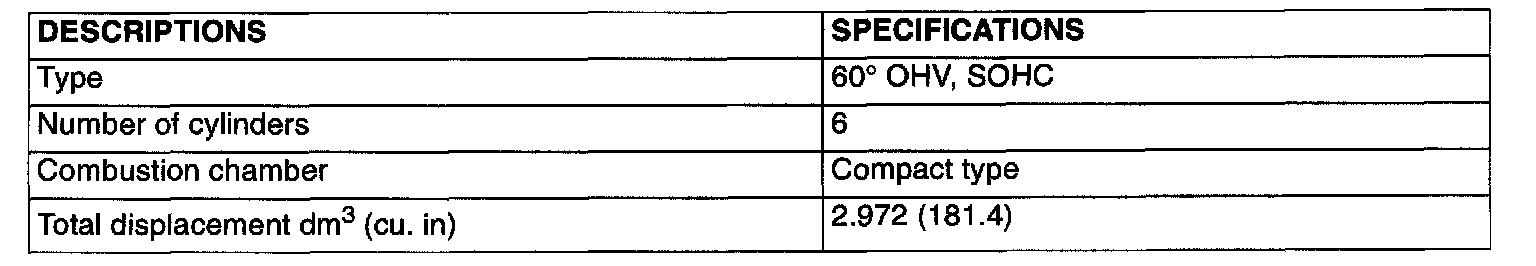

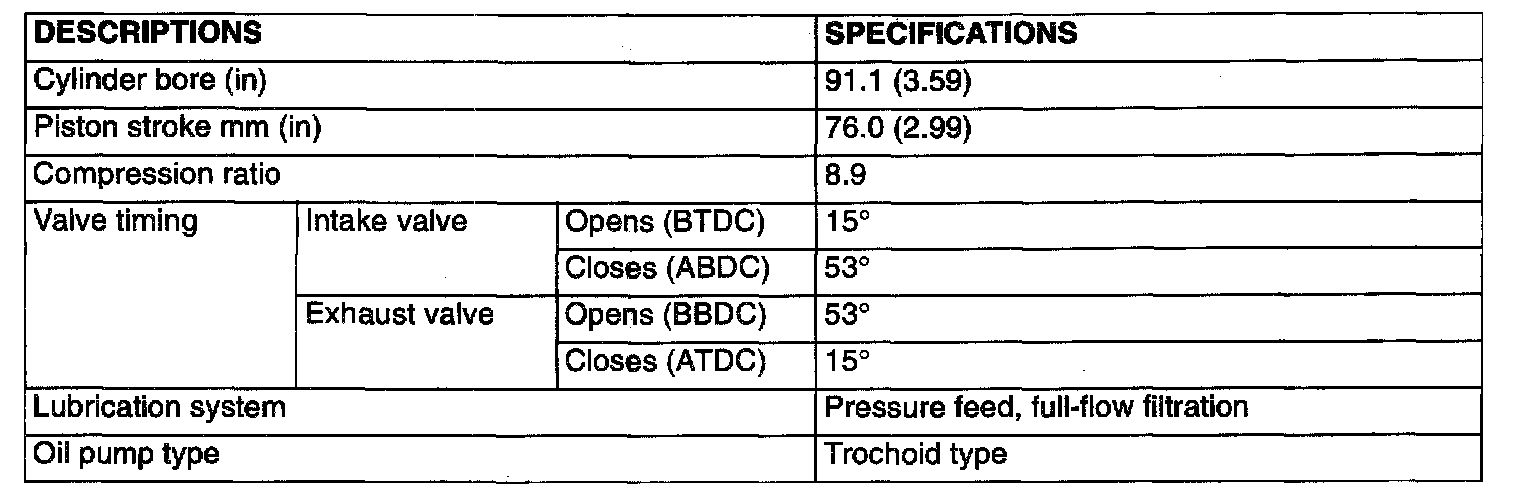

General Specifications

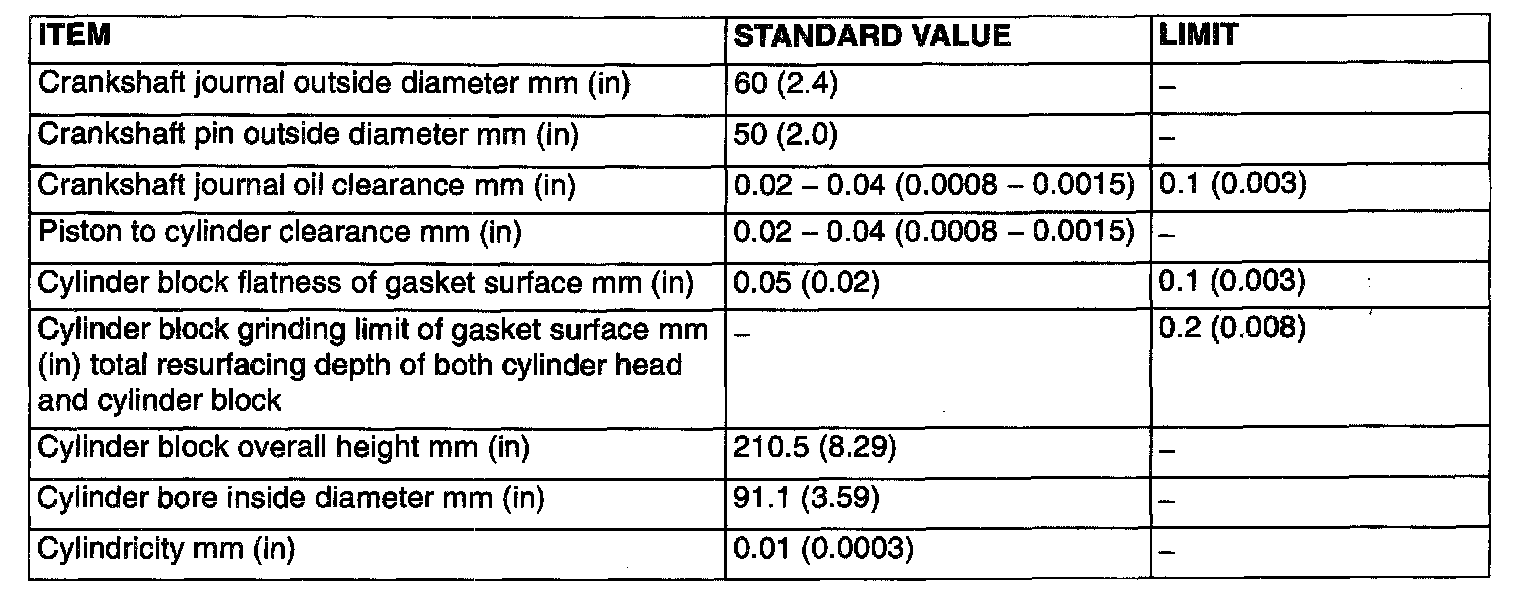

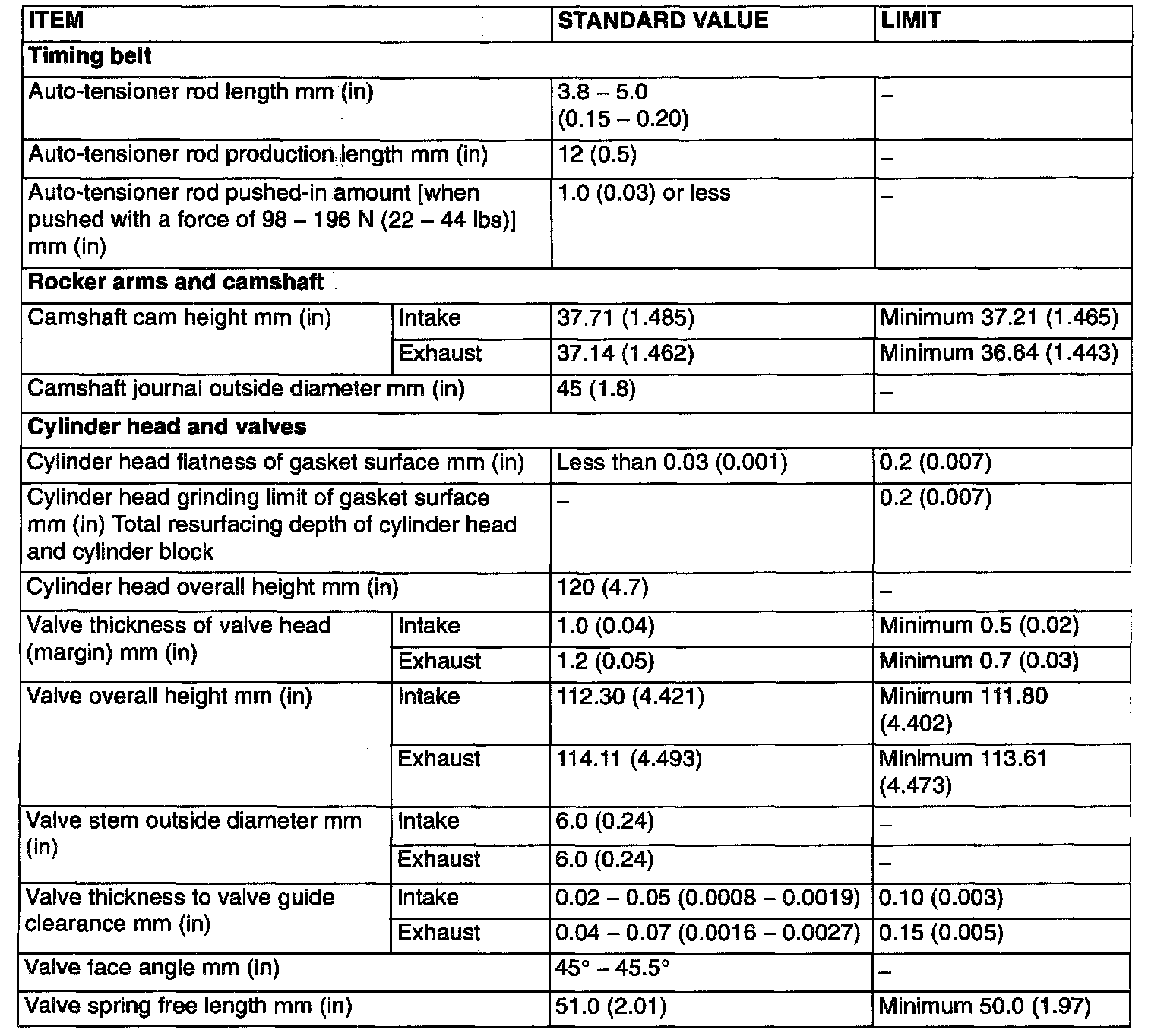

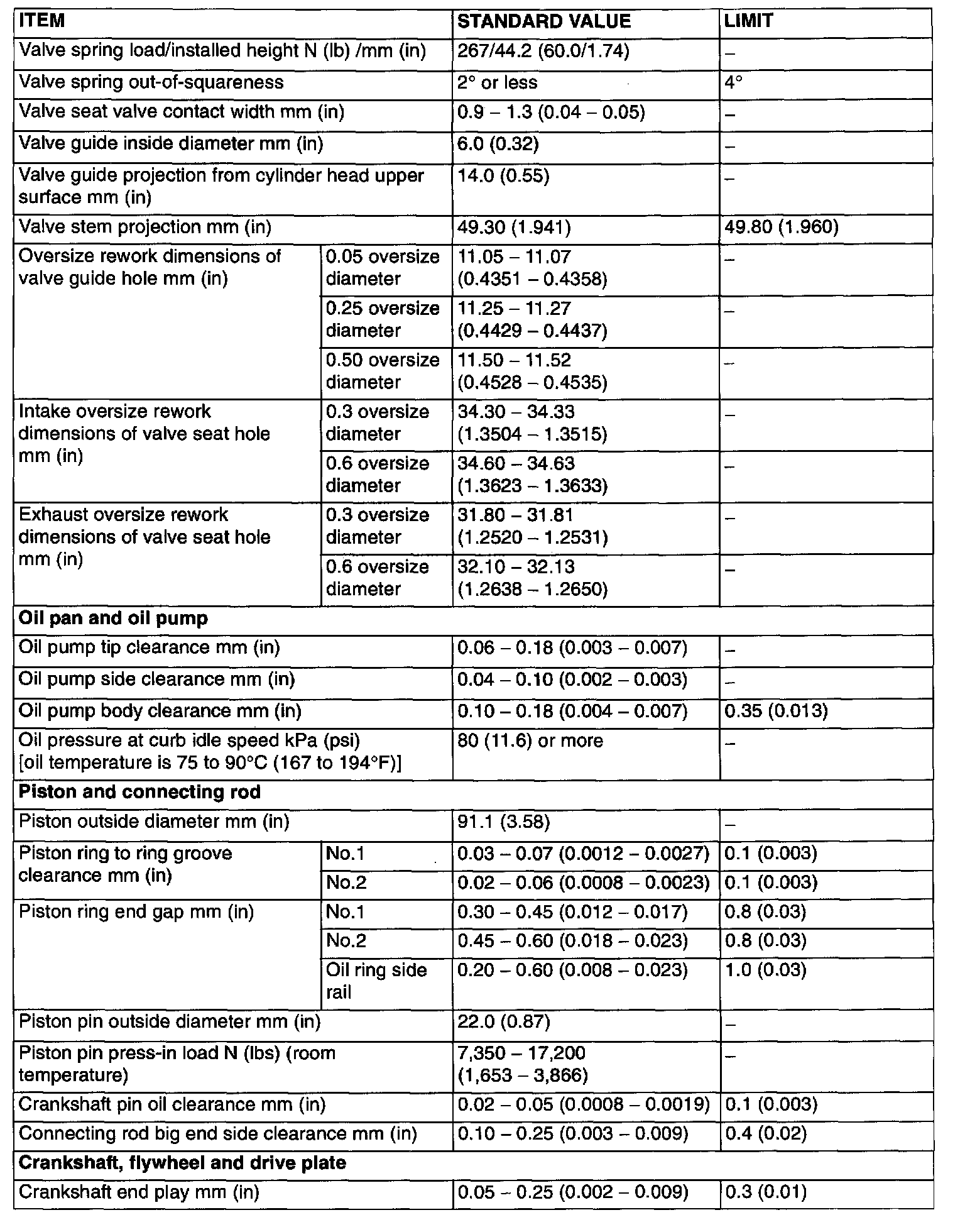

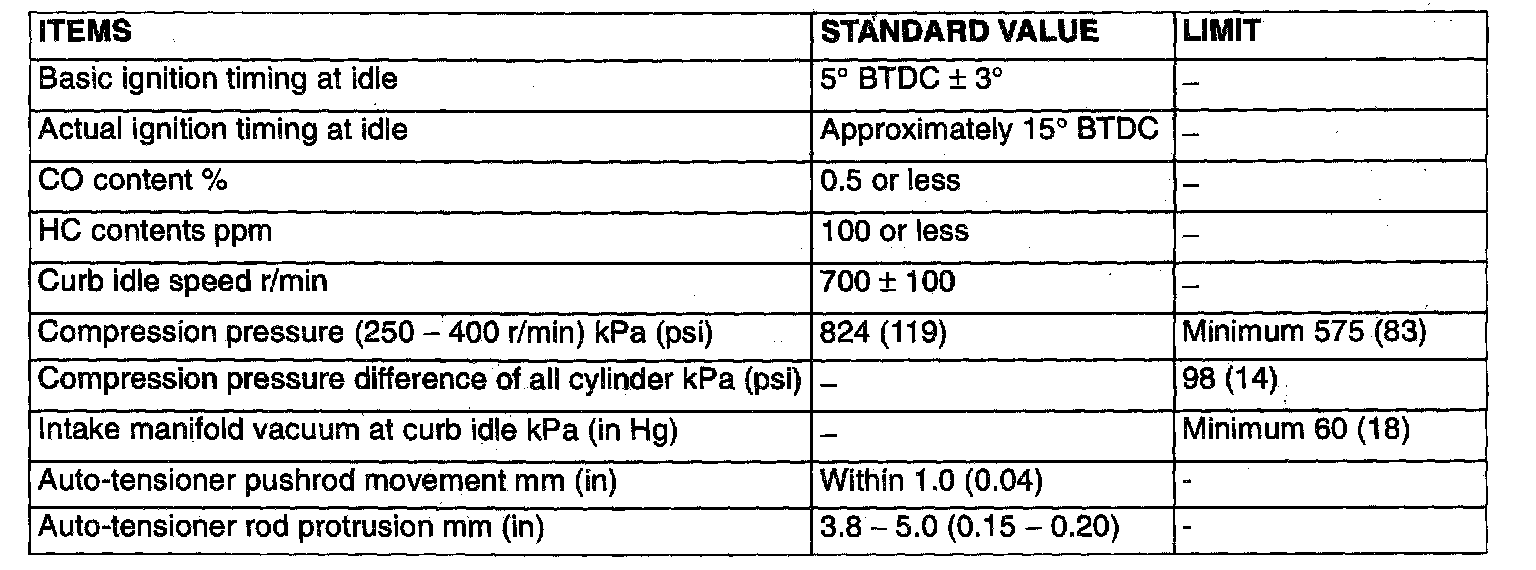

Service Specifications
