Home >> Chrysler >> 2002 >> Sebring LXI Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Key Reminder Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

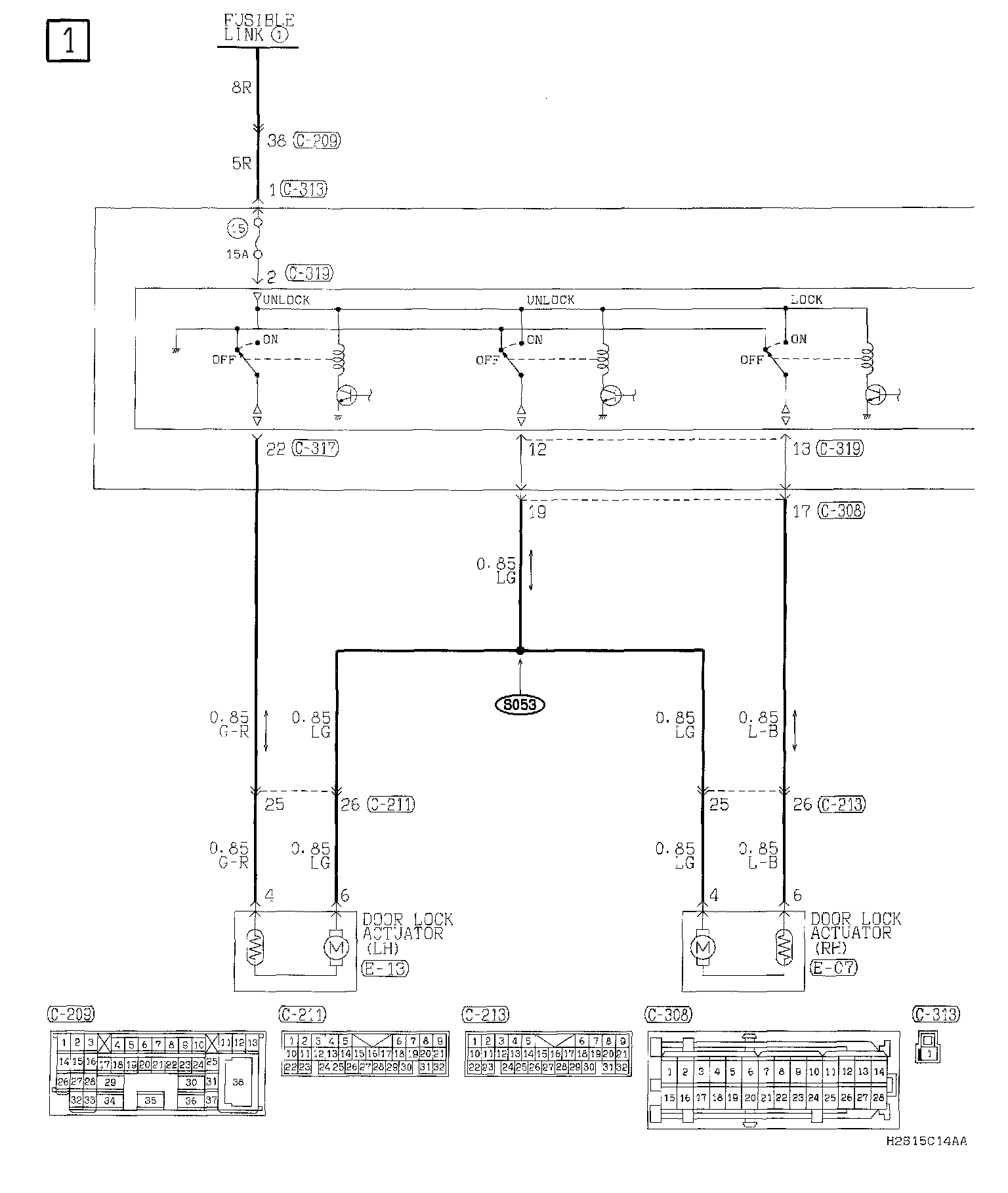

Forgotten Key Prevention Function Part 1:

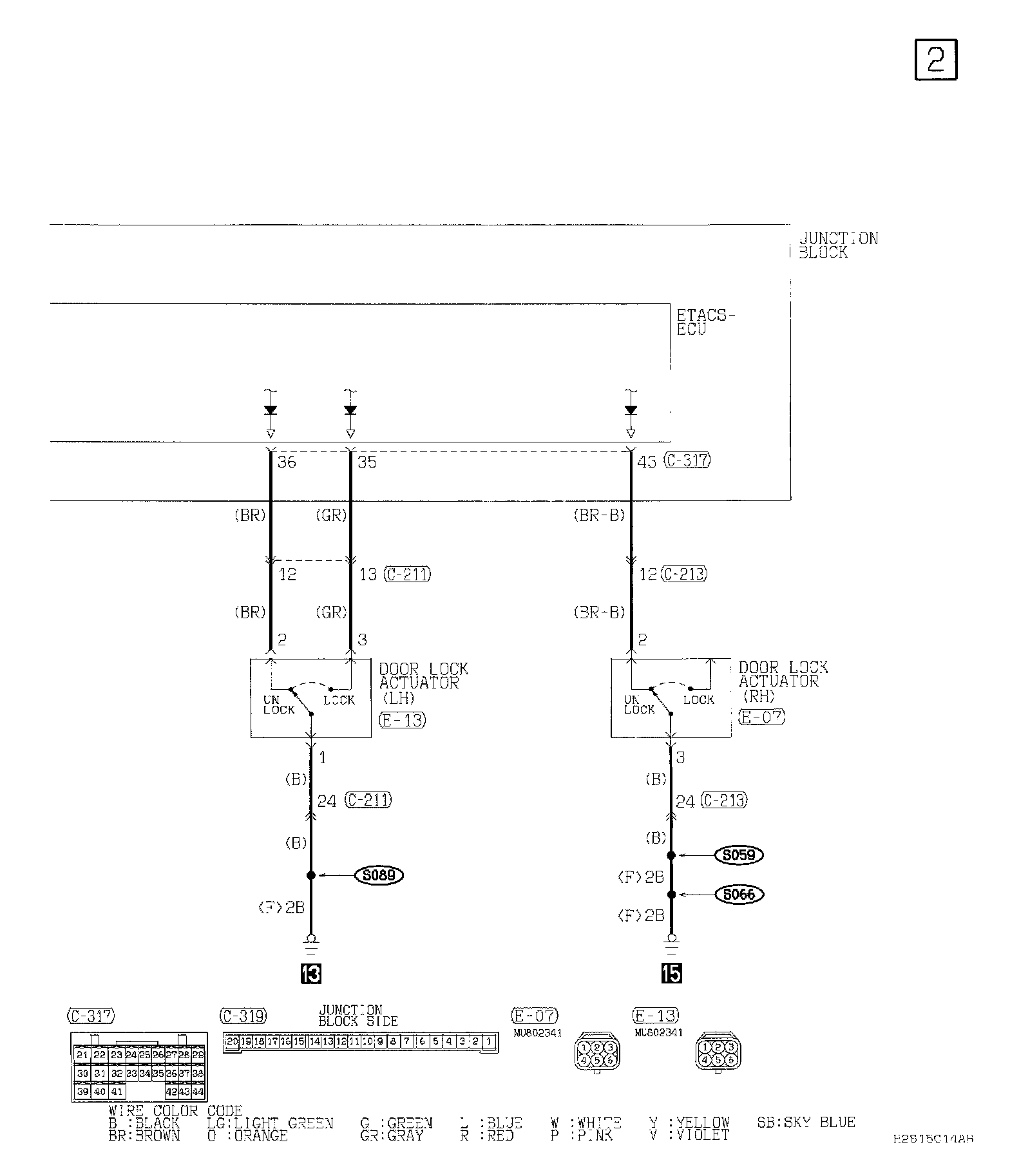

Forgotten Key Prevention Function Part 2:

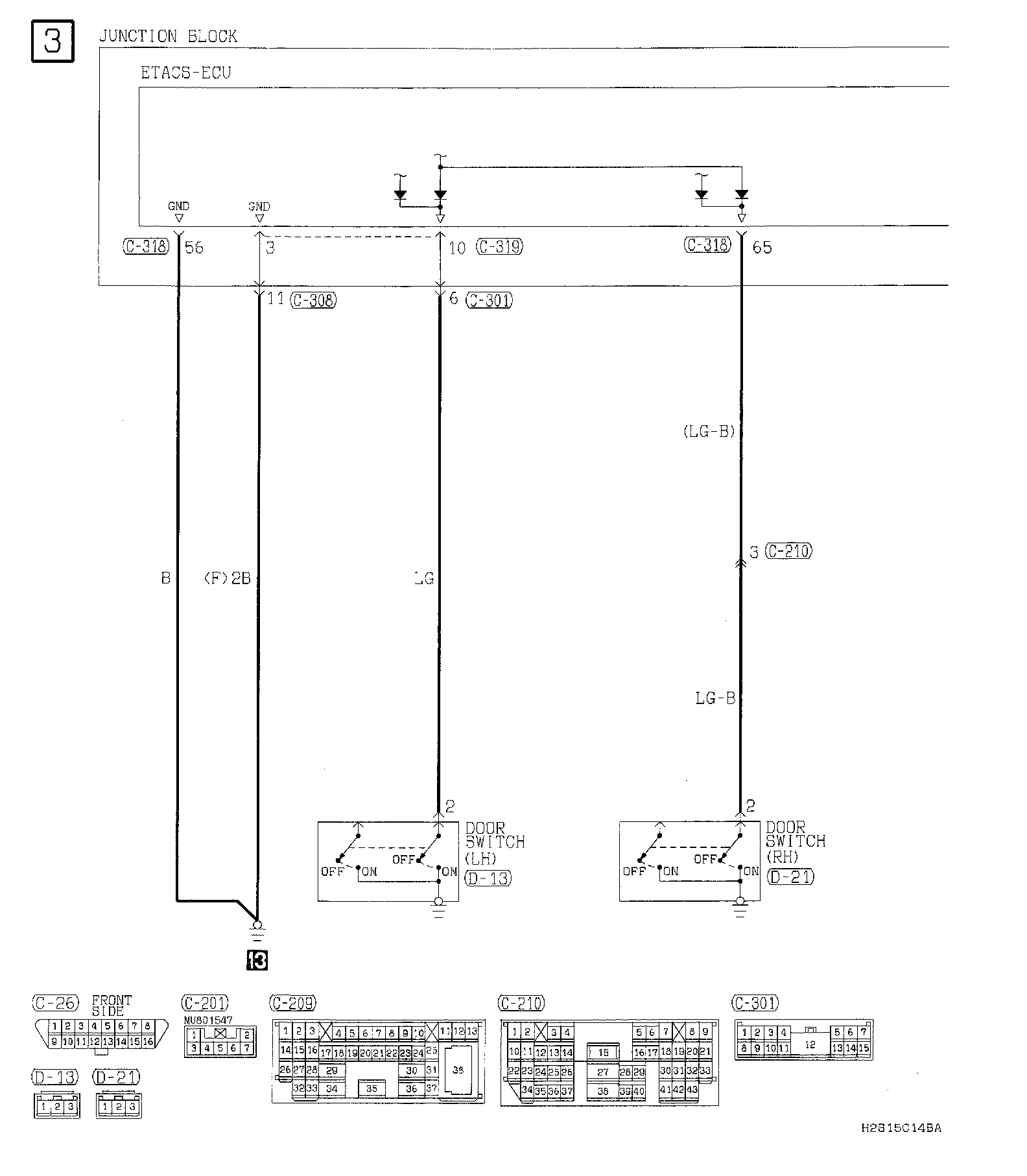

Forgotten Key Prevention Function Part 3:

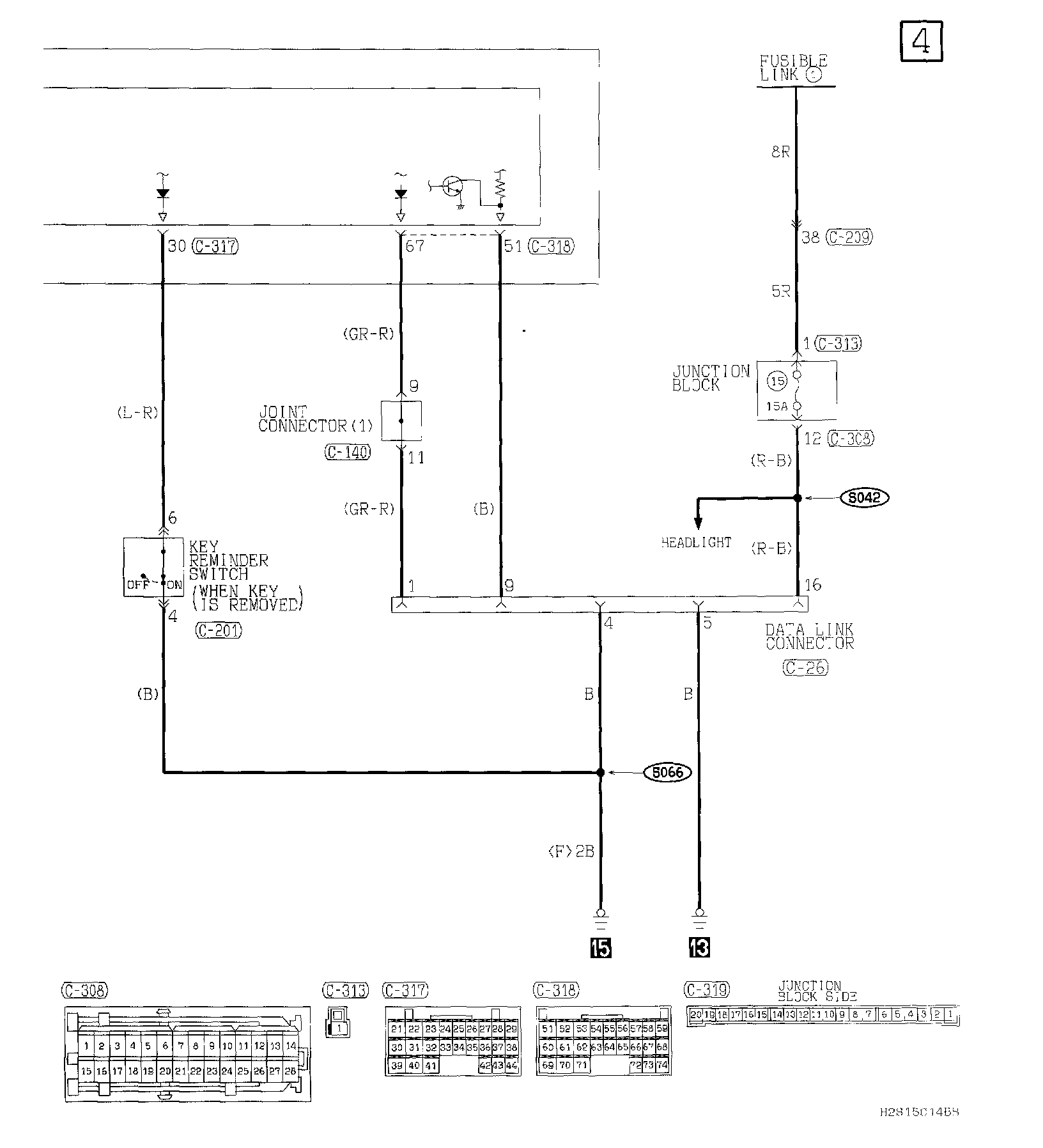

Forgotten Key Prevention Function Part 4:
