Pinout Values and Diagnostic Parameters

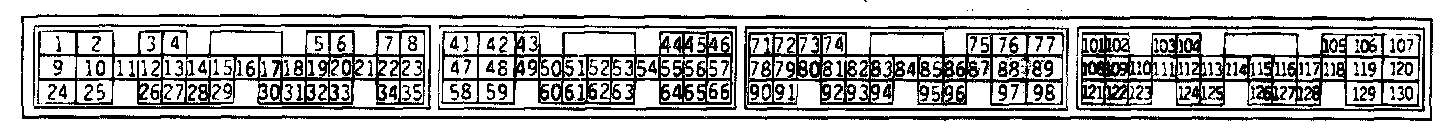

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION Part 1 of 5

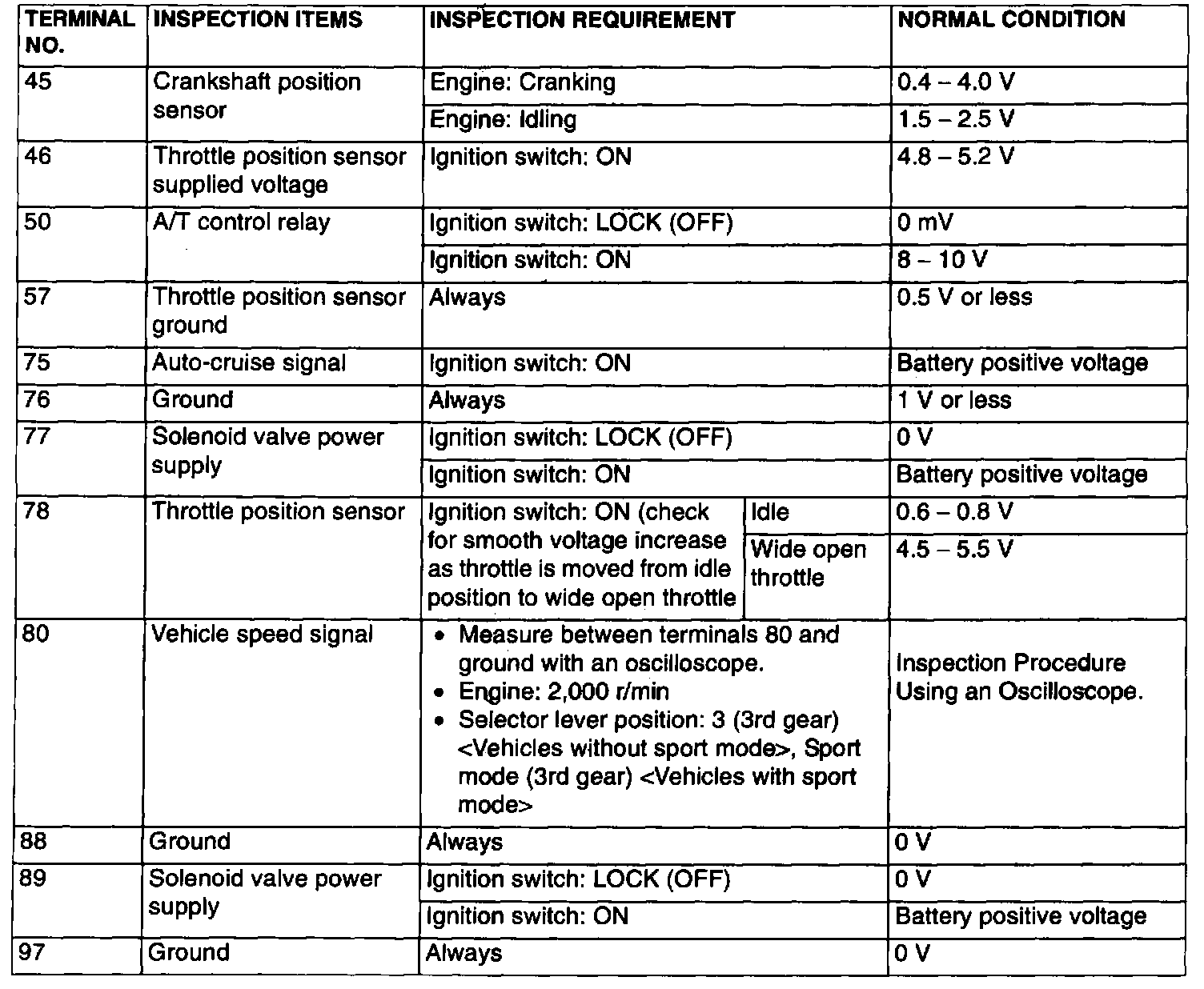

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION Part 2 of 5

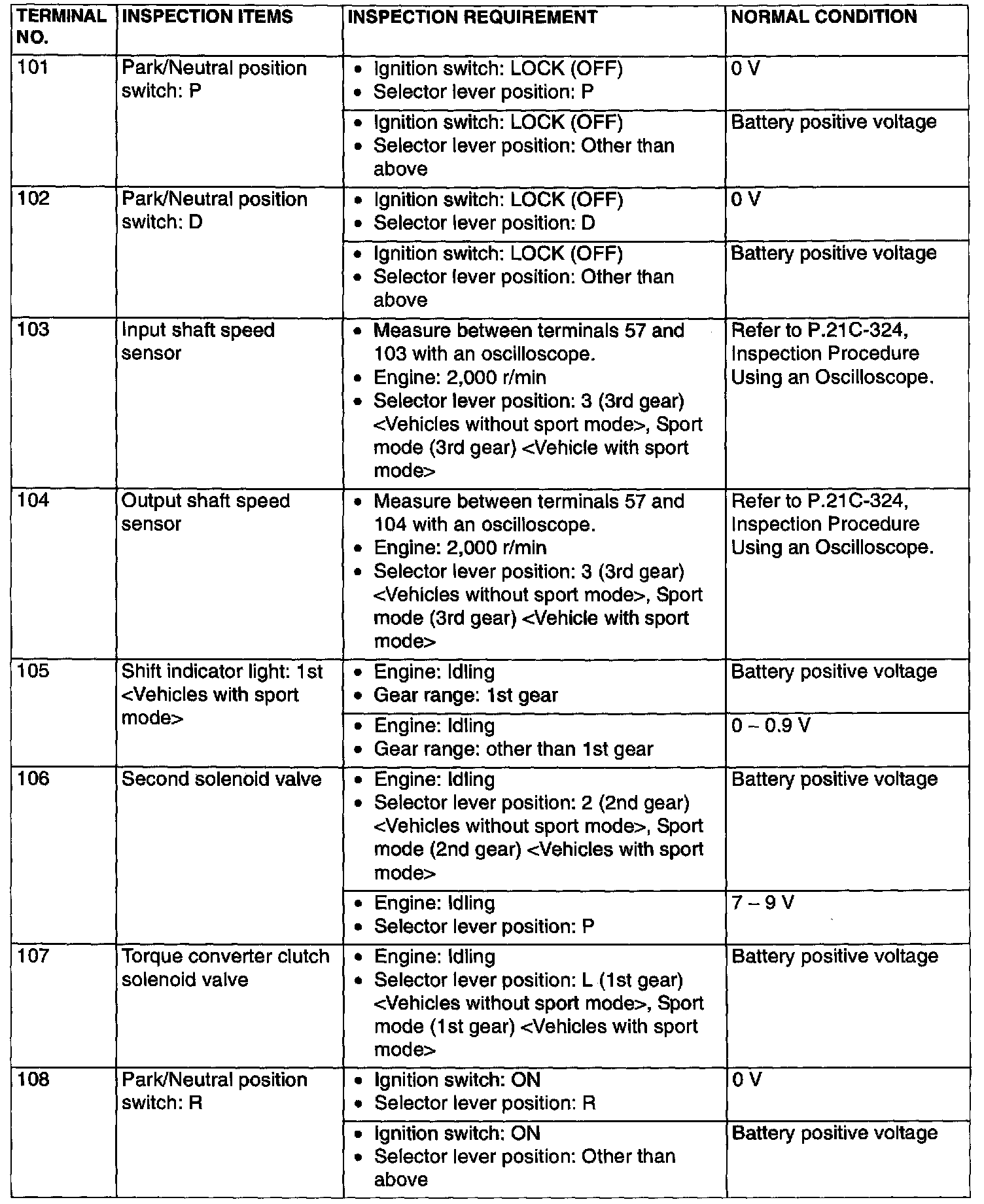

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION Part 3 of 5

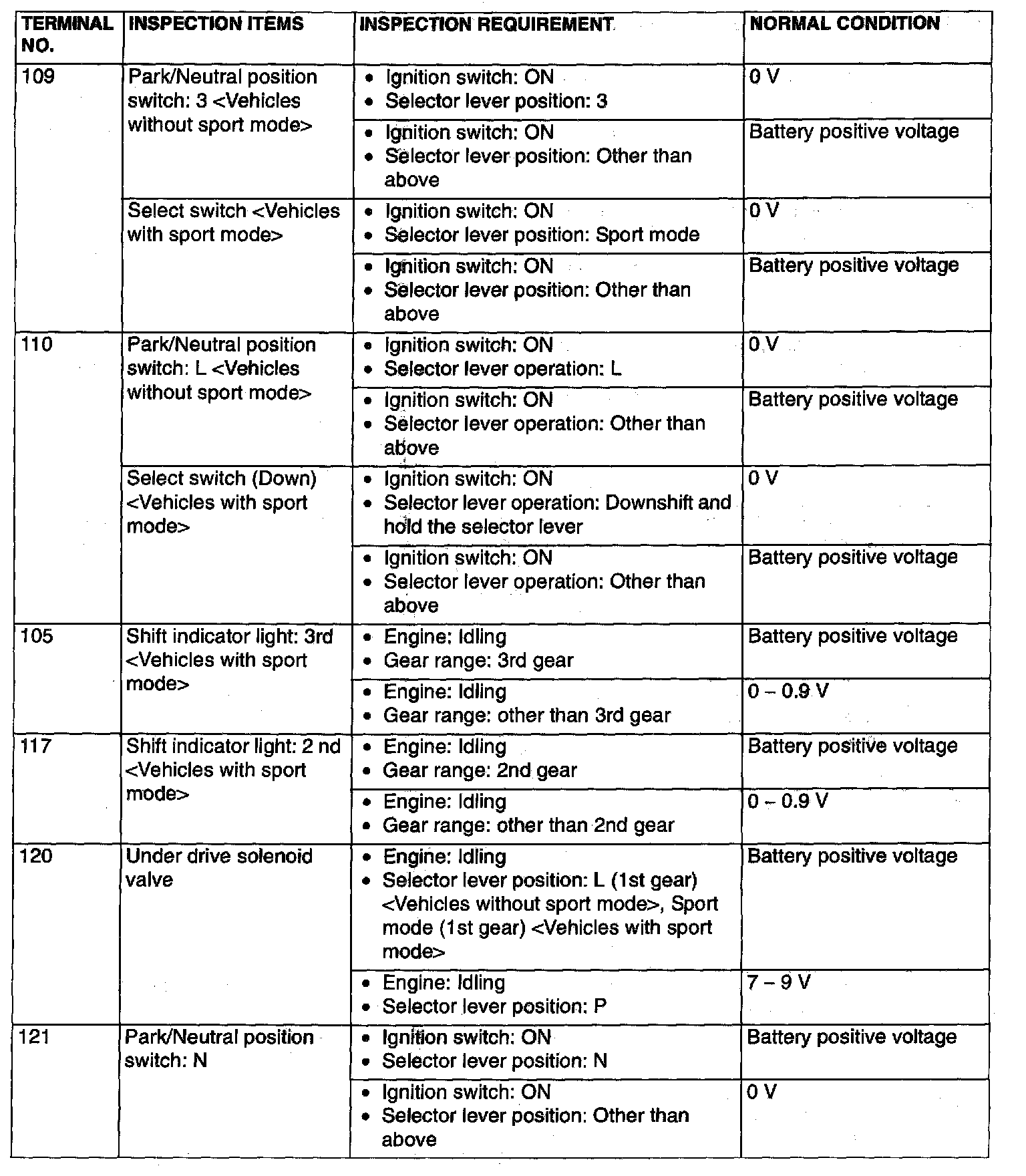

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION Part 4 of 5

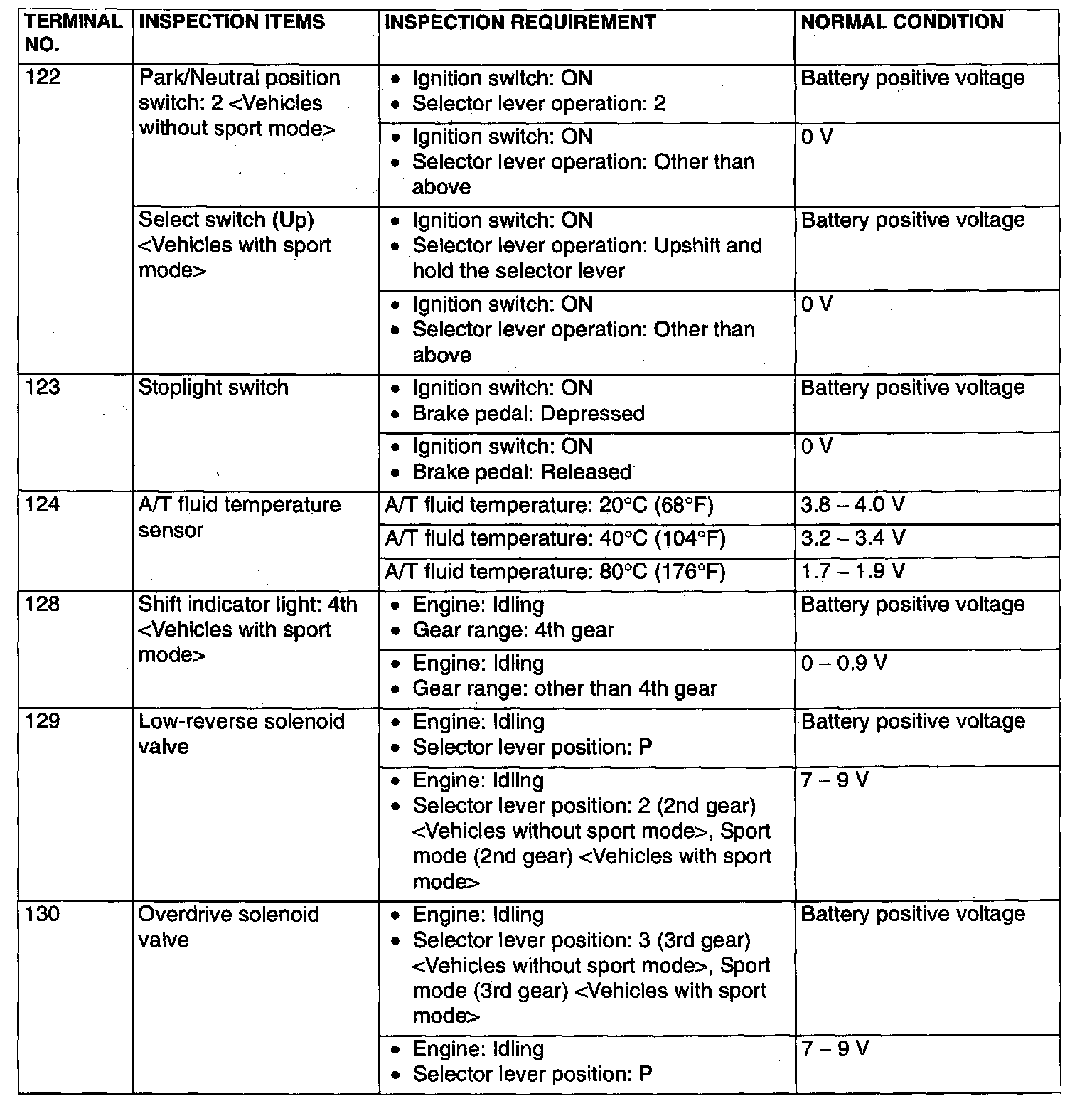

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION Part 5 of 5
