Catalytic Converter: Service and Repair

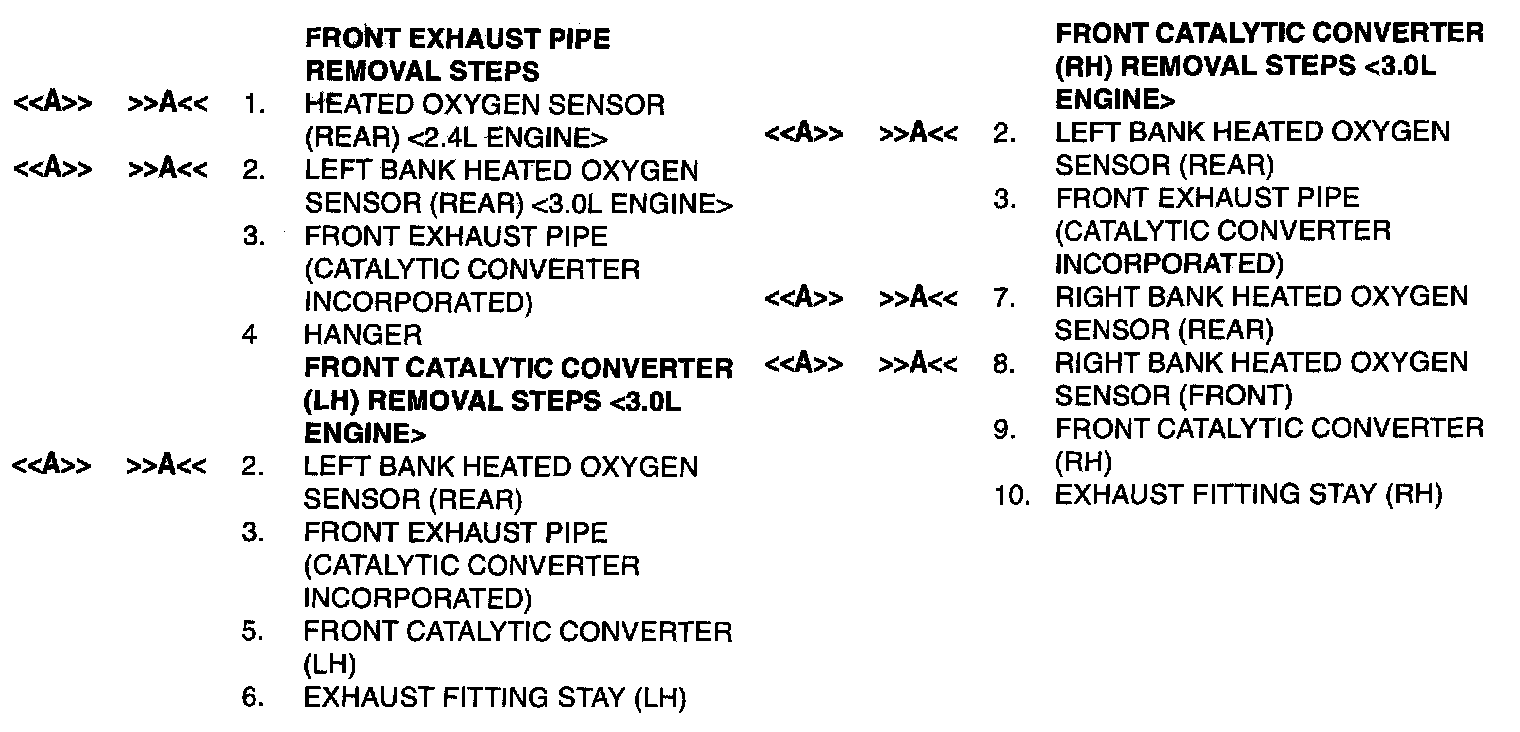

Part 1:




Part 2:










REMOVAL SERVICE POINT

<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

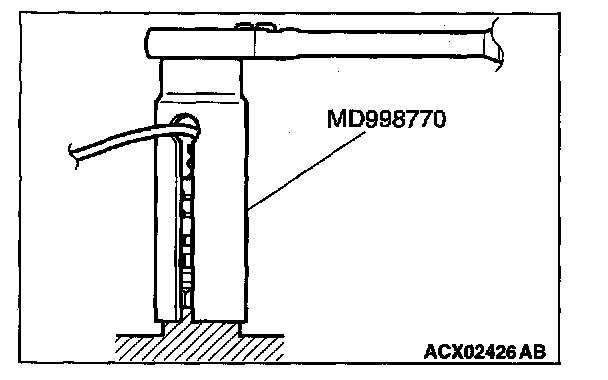

Use special tool MD998770 to remove the oxygen sensor.





INSTALLATION SERVICE POINT
>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)(RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION

Use special tool M0998770 to installation the oxygen sensor.
