Home >> Chrysler >> 2002 >> Sebring LXI Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index - Definitions

Symptom Index - Definitions

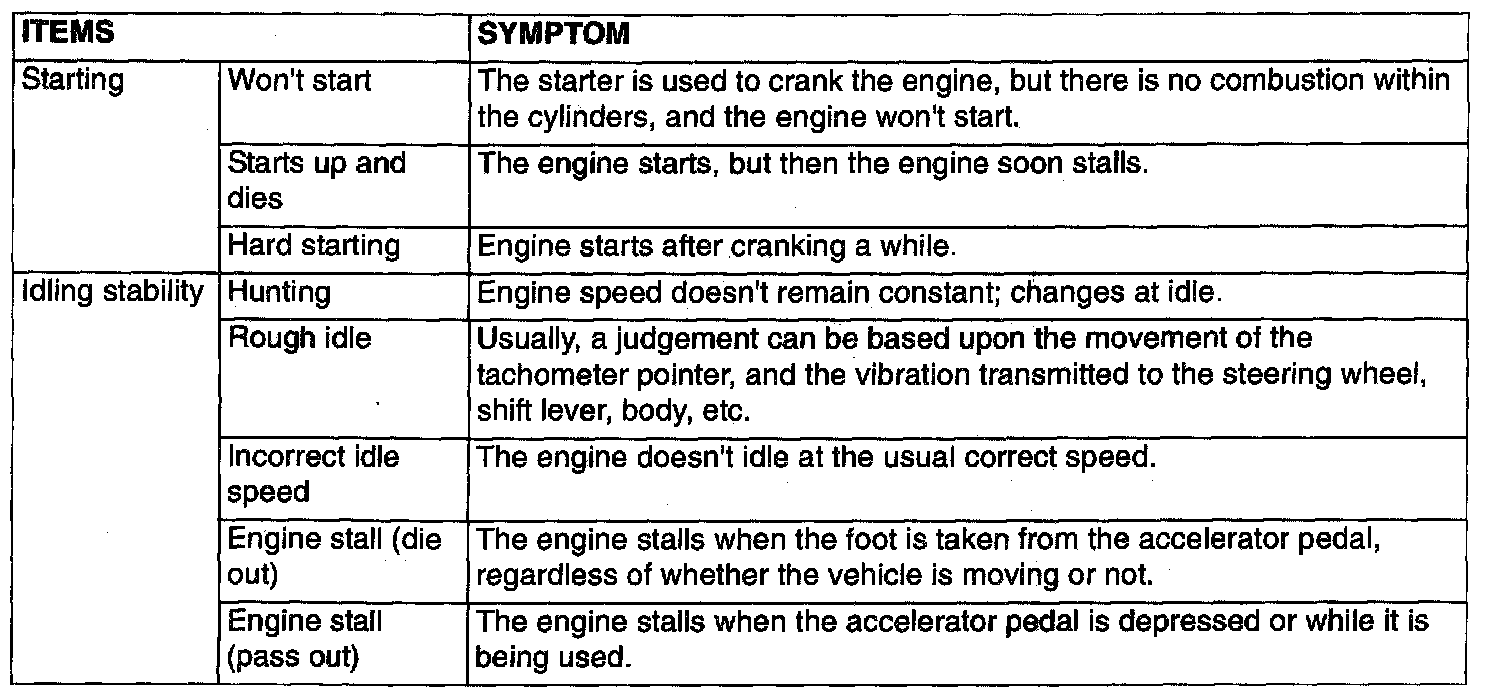

Problem Symptoms Table (Part 1):

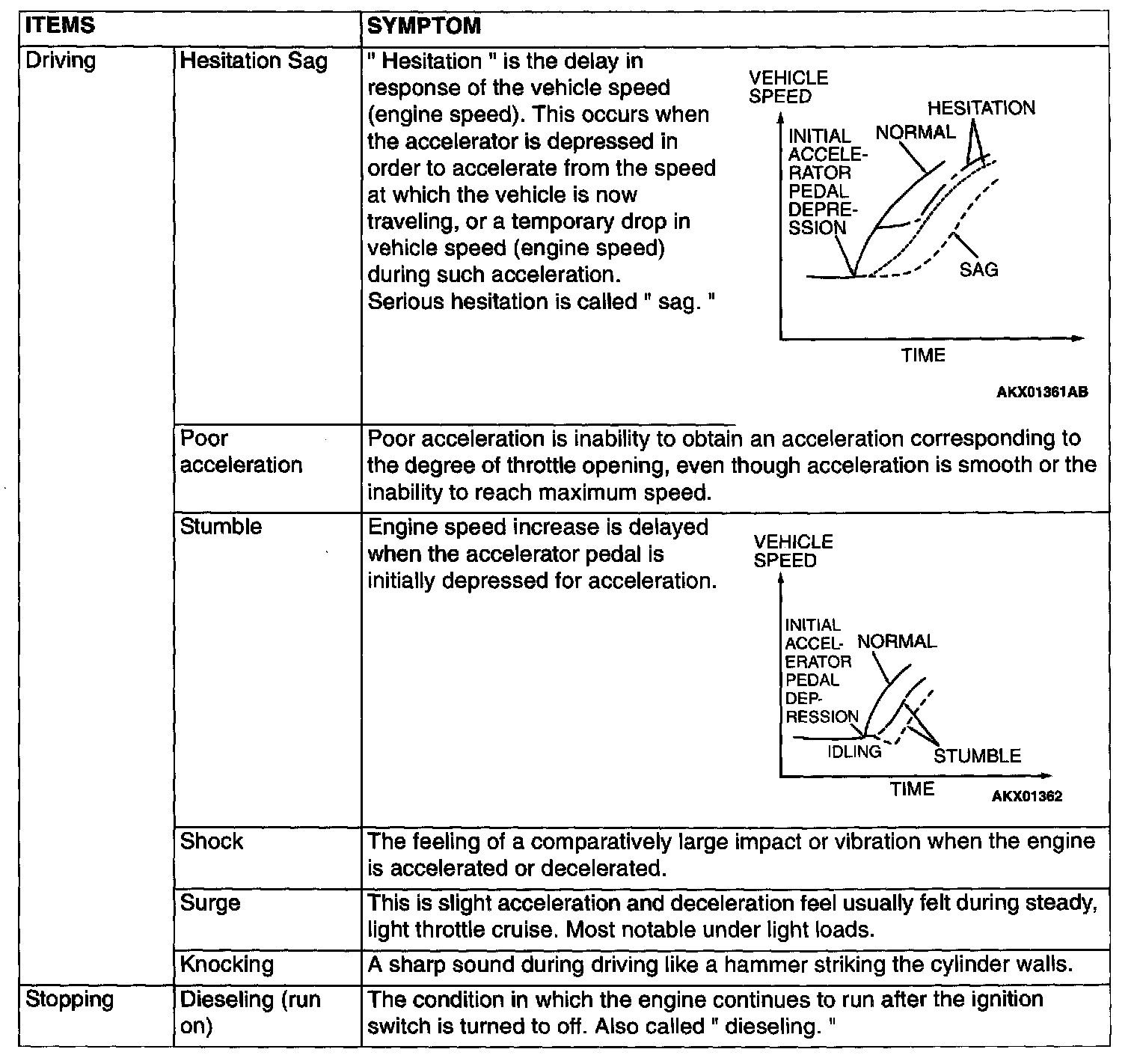

Problem Symptoms Table (Part 2):
