Exhaust Pipe: Service and Repair

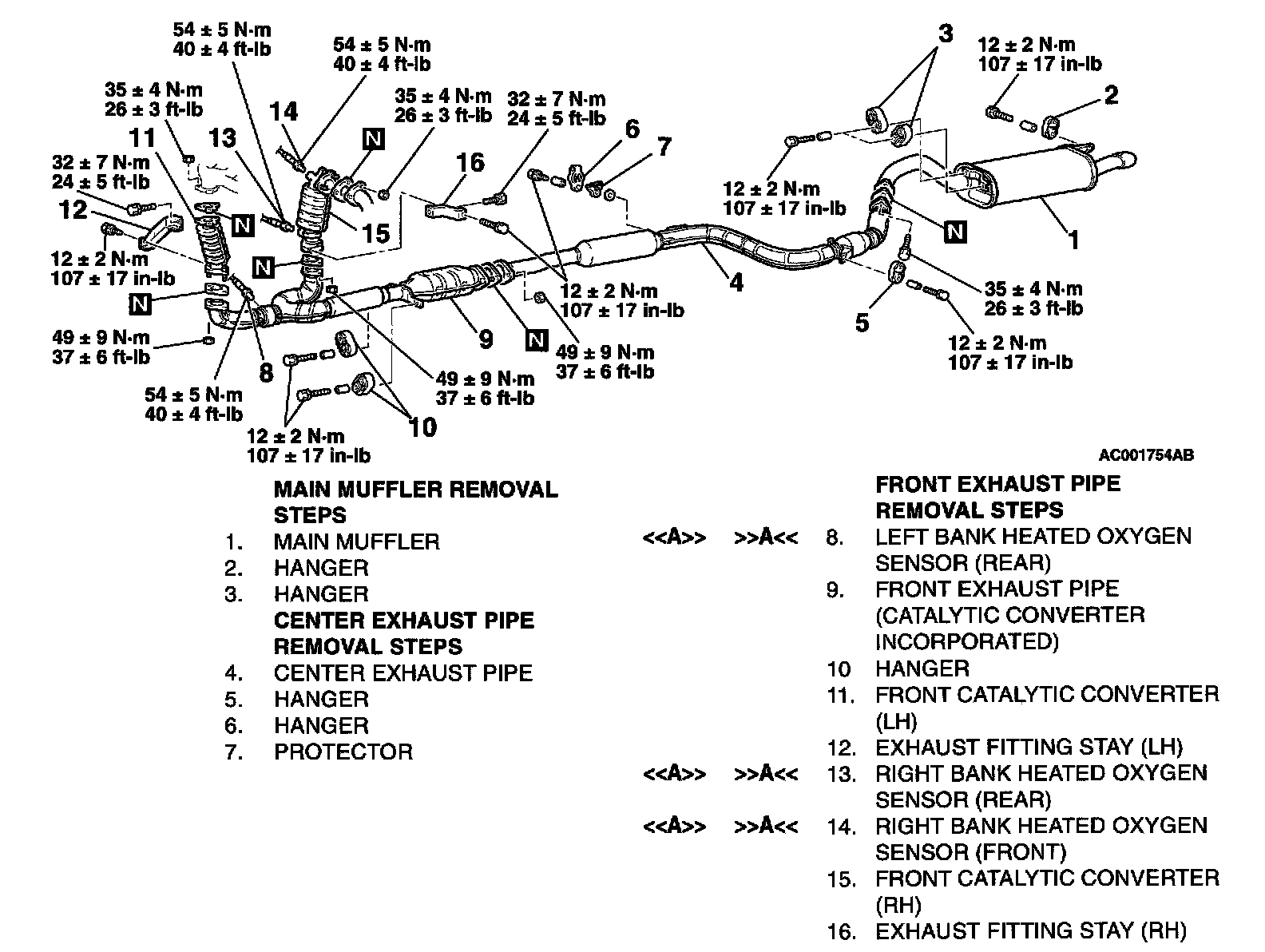

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <3.0L>





REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
<> LEFT BANK HEATED OXYGEN SENSOR (REAR)/ RIGHT BANK HEATED 0XYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL





Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT
>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/ RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION





Use special tool MD998770 to installation the oxygen sensor.
