Curb Idle Speed Check
CURB IDLE SPEED CHECKRequired Special Tool: Scan Tool (MUT-11)
1. Before inspection and adjustment set vehicles in the following condition.
^ Engine coolant temperature: 80 - 95 °C (176 - 203 °F)
^ Lights and all accessories: OFF
^ Transaxle: Neutral (P range on vehicles with A/T)
CAUTION: To prevent damage to scan tool MB991502, always turn the Ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool M13991502.

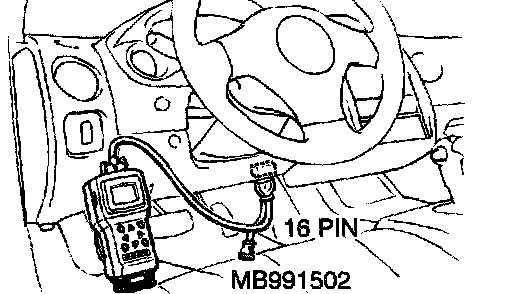

2. Connect scan tool MB991502 to the data link connector.
3. Check the basic ignition timing.
Standard value: 5 °BTDC ± 3 °
4. Start the engine.
5. Run the engine at idle for 2 minutes.
6. Check-the idle speed. Select item number 22 and take a reading of the idle speed.
Curb idle speed: 700 ± 100 rpm
NOTE: The idle speed is controlled automatically by the idle control system.
7. If the idle speed is outside the standard value, refer to Diagnosis - Symptom Chart.
