Engine Compartment Harness - A Connectors
Engine Compartment Harness - A Connectors

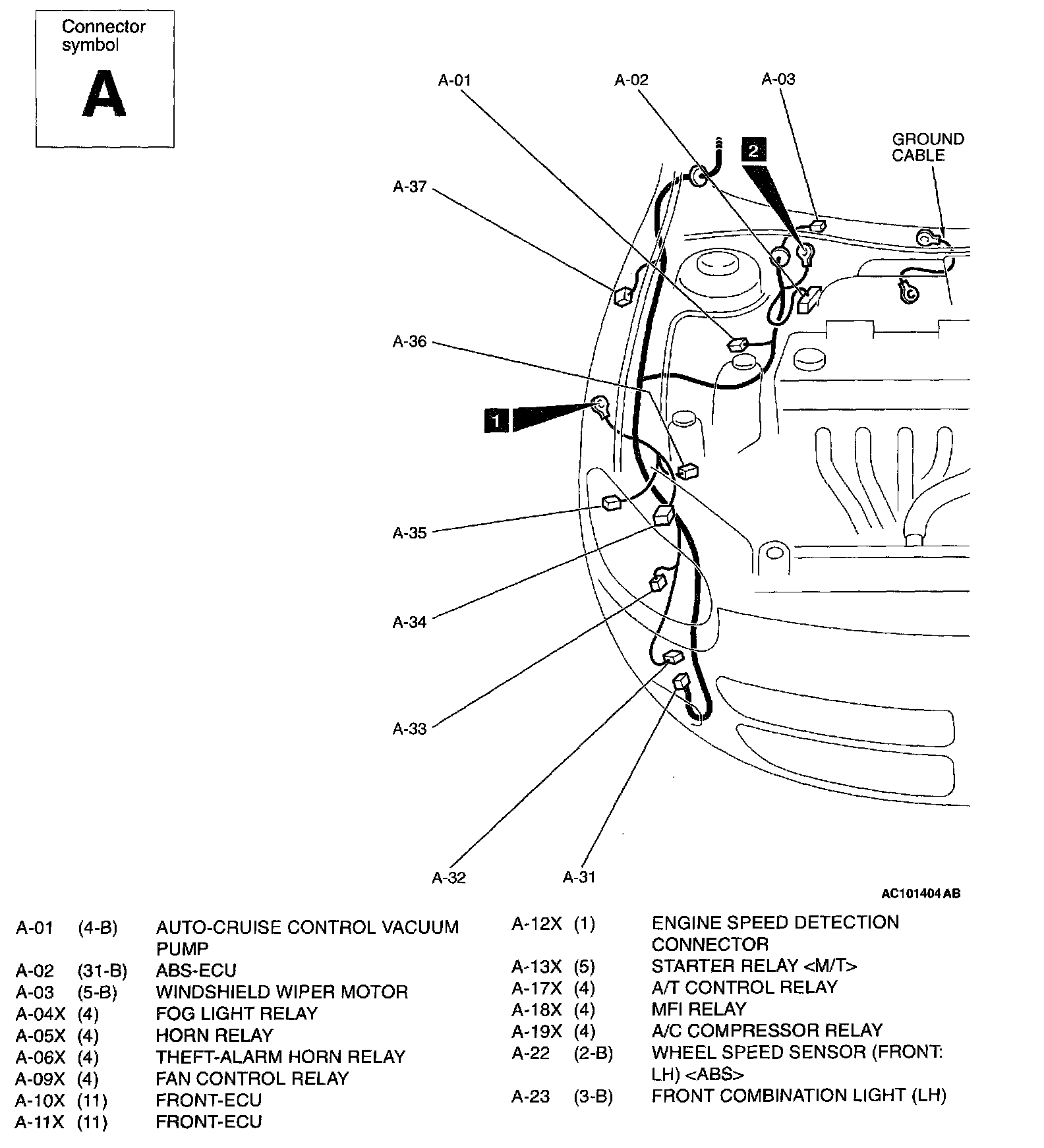

Engine Compartment - A Connector [ 01(4-B) Thru 23(3-B) ]:

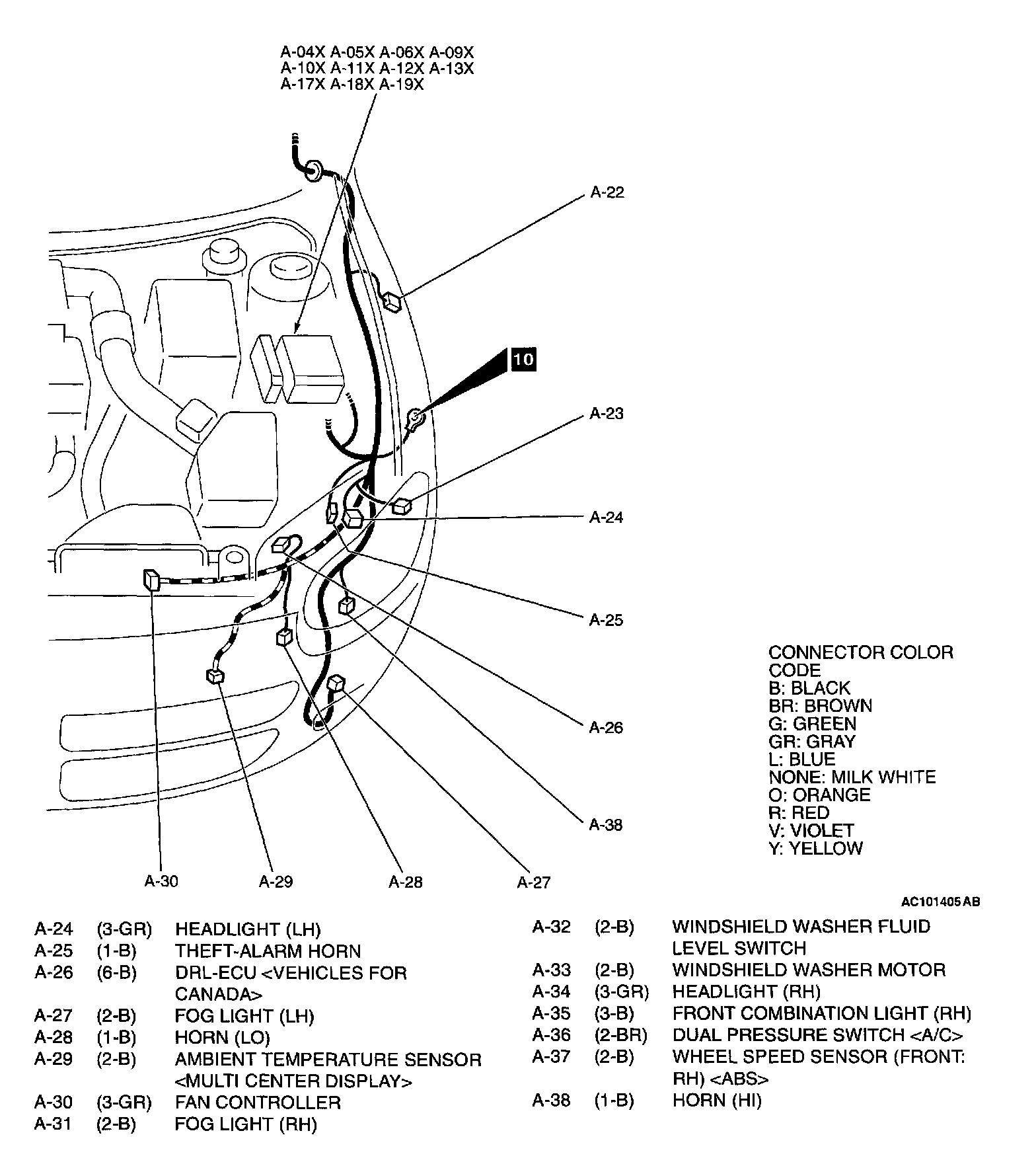

Engine Compartment - A Connector [ 24(3-GR) Thru 38(1-B) ]:
