Pinout Values and Diagnostic Parameters

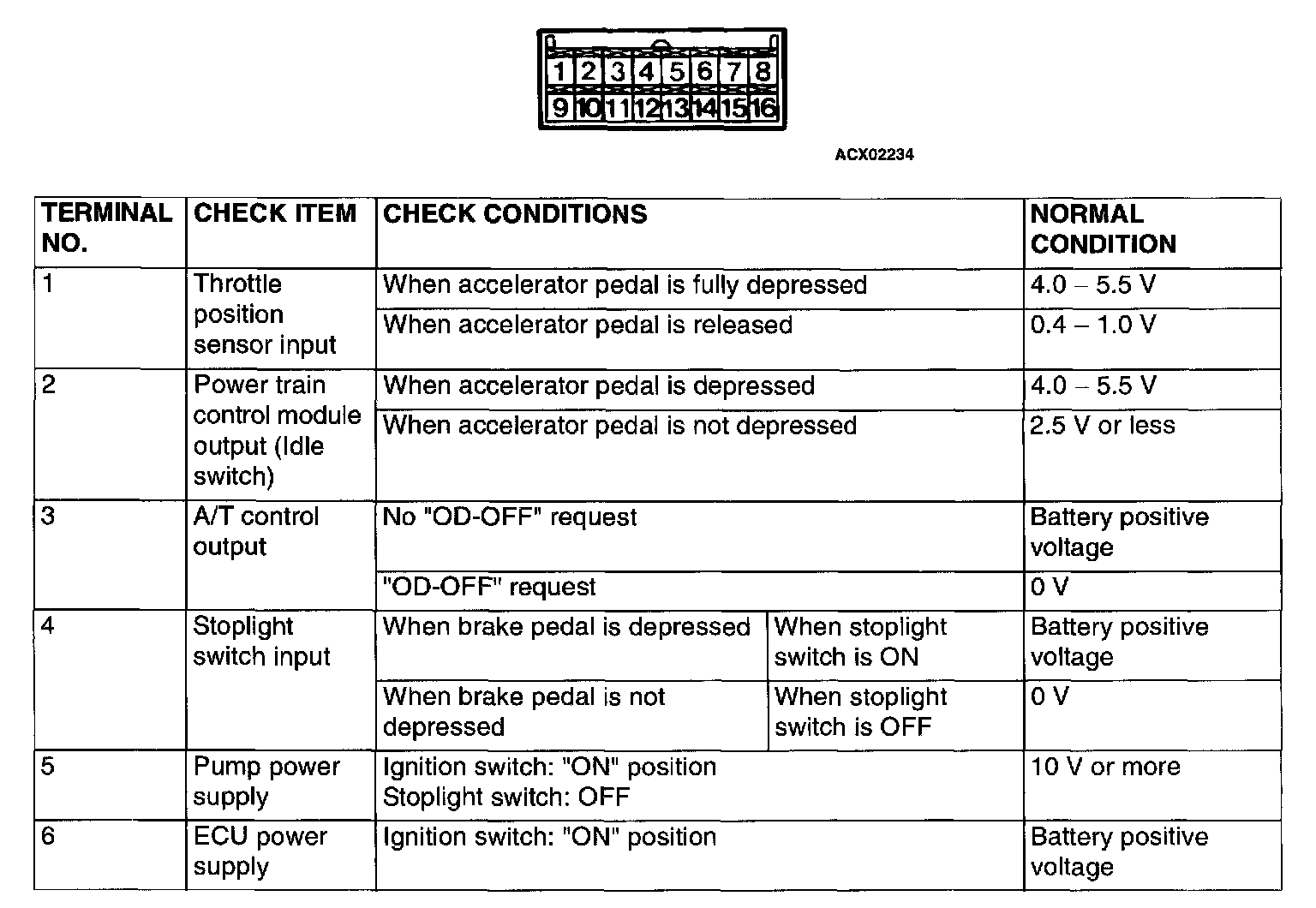

Check Auto-Cruise Control-ECU Terminals (Part 1):

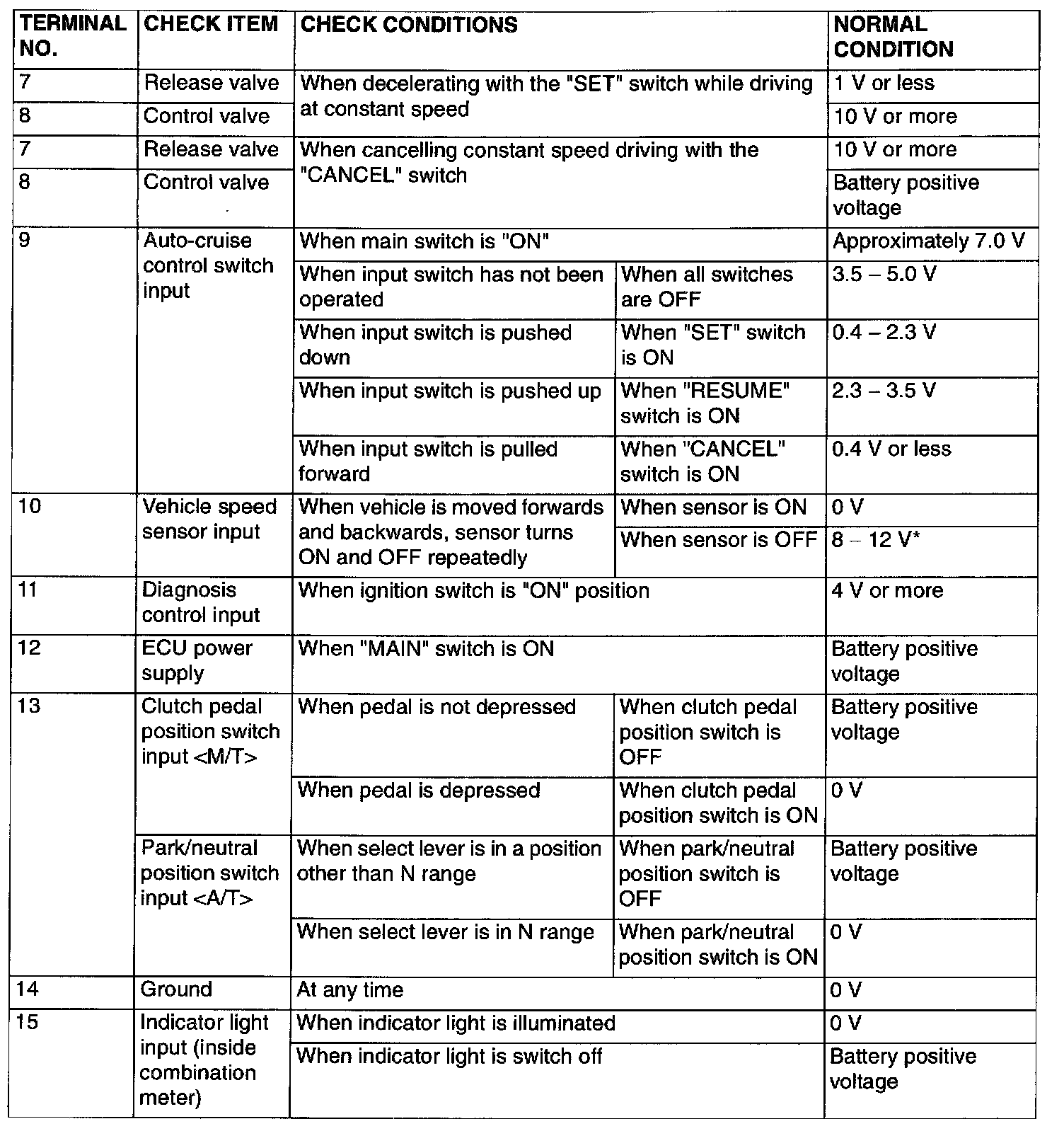

Check Auto-Cruise Control-ECU Terminals (Part 2):

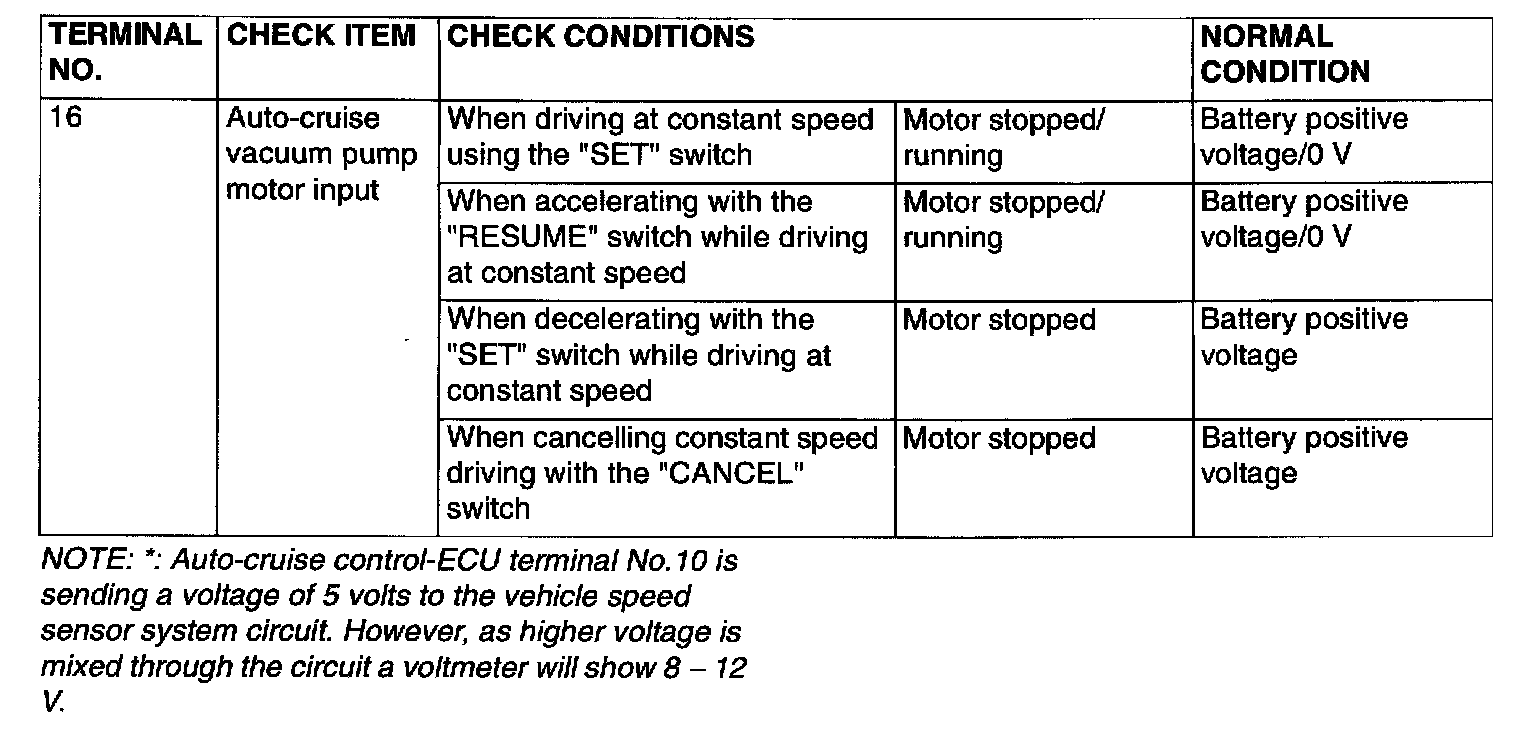

Check Auto-Cruise Control-ECU Terminals (Part 3):
