Inspection Procedure 1

INSPECTION PROCEDURE 1: Communication between the Scan Tool and the ABS-ECU is not Possible.

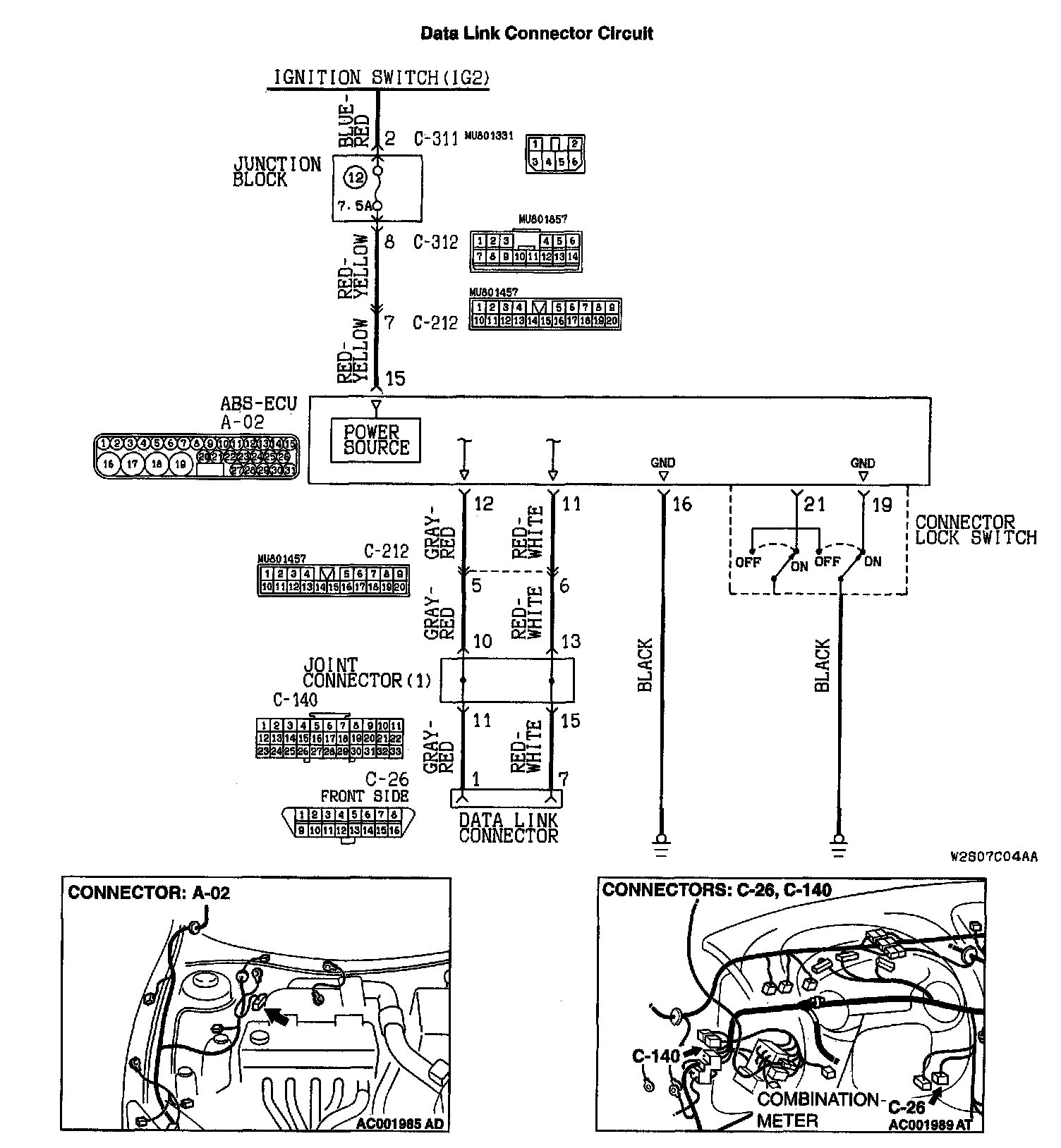

CIRCUIT OPERATION
- The diagnostic output is made from the ABS-ECU (terminal 11) to the diagnostic output terminal (terminal 7) of the data link connector.
- When the data link connector's diagnostic test mode control terminal (terminal 1) is grounded, the ABS-ECU (terminal 12) will go into diagnostic mode.

TECHNICAL DESCRIPTION (COMMENT)
When communication with the scan tool is not possible, the cause is probably an open circuit in the ABS-ECU power circuit or an open circuit in the diagnostic output circuit.

TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Blown fuse
- Damaged wiring harness and connector
- Malfunction of the hydraulic unit (Integrated with ABS-ECU)

DIAGNOSIS
Required Special Tool:
- MB991223: Harness Set





STEP: 1. Check the power supply circuit at ABS-ECU connector A-02.
1. Disconnect connector A-02 and measure at the harness side.
2. Start the engine.
3. Measure the voltage between terminal 15 and ground.
Q:Is voltage approximately 12 volts?
YES:Go to Step 3.
NO:Go to Step 2.
STEP: 2. Check the harness wire between ignition switch (IG2) and ABS-ECU connector A-02

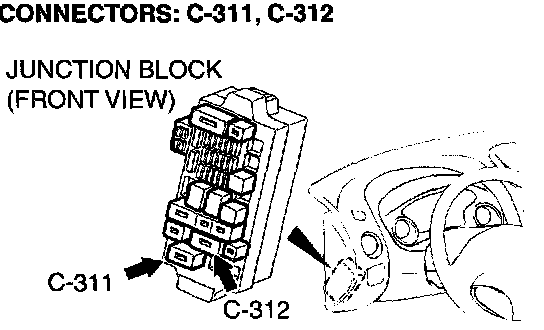

NOTE: After inspecting intermediate connectors C-212, C-311, and C-312, inspect the wire. If intermediate connector C-212, C-311, or C-312 is damaged, repair or replace it. If the connector has been repaired or replaced, go to Step 3.

Q:Is any harness wire between Ignition Switch (IG2) and ABS-ECU connector A-02 damaged?
YES:Repair them and go to Step 5.
NO:Go to Step 3.











STEP: 3. Check the harness wire between ABS-ECU connector A-02 and data link connector C-26.

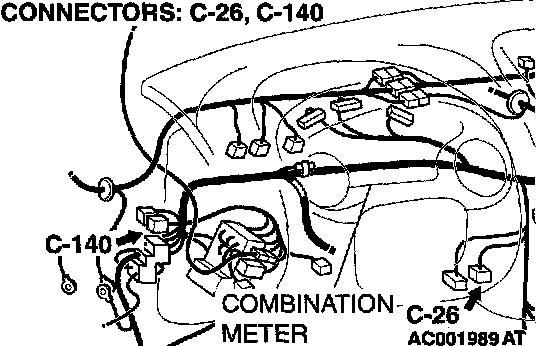

NOTE: After inspecting intermediate connectors C- 140 and C212, inspect the wire. If intermediate connector C-140 or C-212 is damaged, repair or replace it. If the connector has been repaired or replaced, go to Step 4.

Q:Is any harness wire between ABS-ECU connector A-02 and data link connector C-26 damaged?
YES:Repair them and go to Step 5.
NO:Go to Step 4.





STEP: 4. Check the harness wires between ABS-ECU connector A-02 and ground.
Q:Are any harness wires between ABS-ECU connector A02 and ground damaged?
YES:Repair them and then go to Step 5.
NO:Go to Step 5.
STEP: 5. Check symptom.
Q:Does the scan tool communicate with the ABS system?
YES:This diagnosis is complete.
NO:Return to Step 1.
