Home >> Chrysler >> 2002 >> Sebring LXI Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair

Speaker: Service and Repair

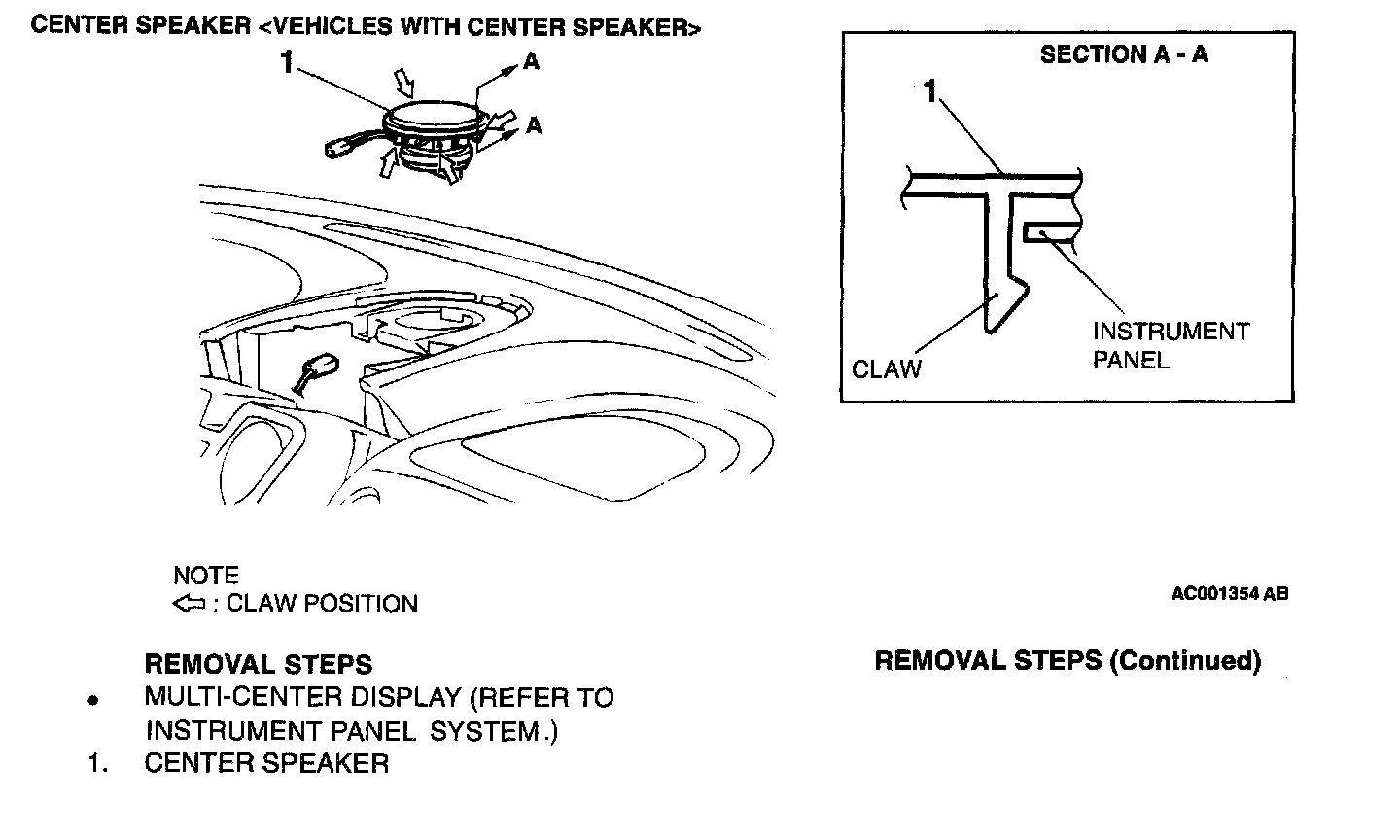

Center Speaker (Vehicles With Center Speaker):

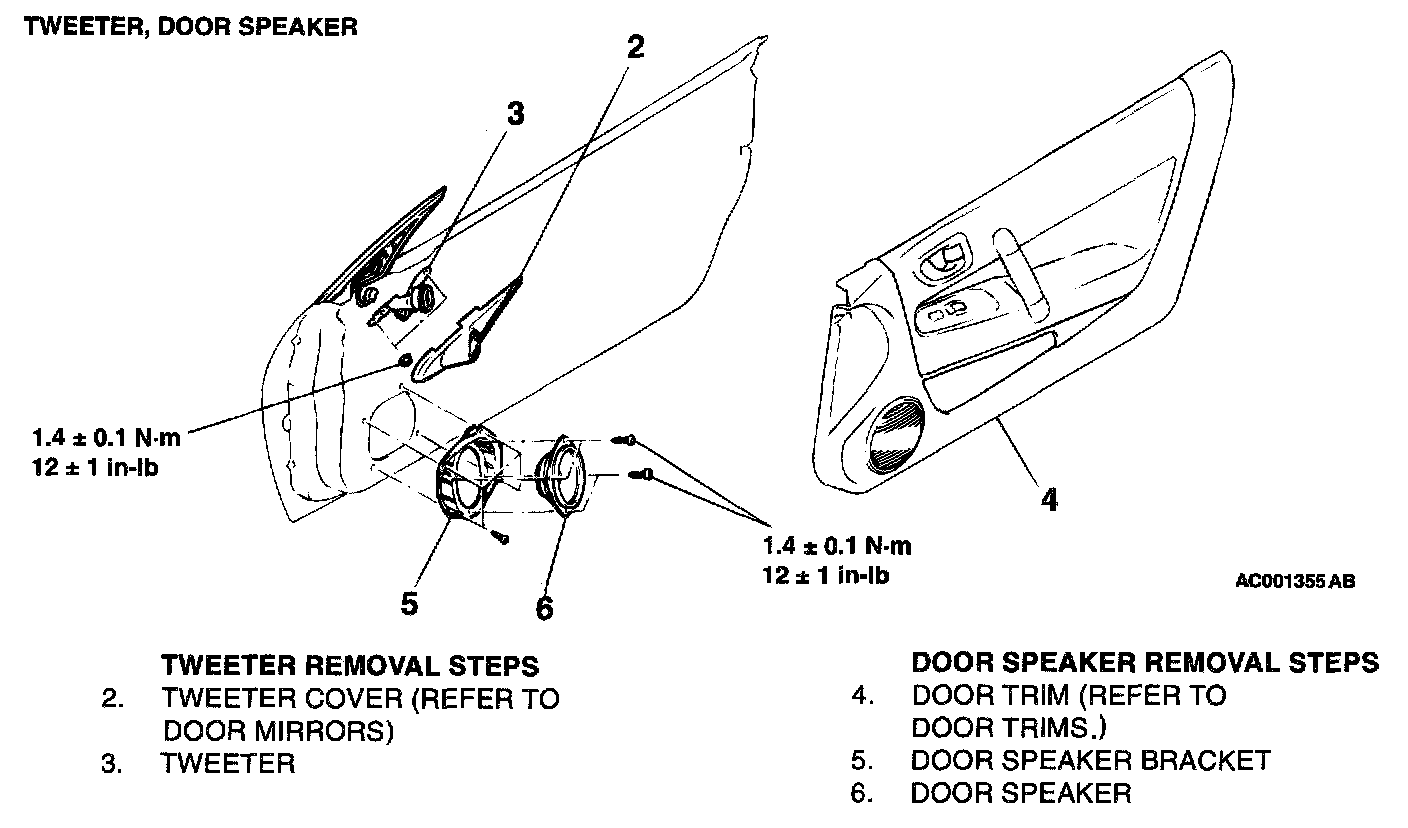

Tweeter, Door Speaker:

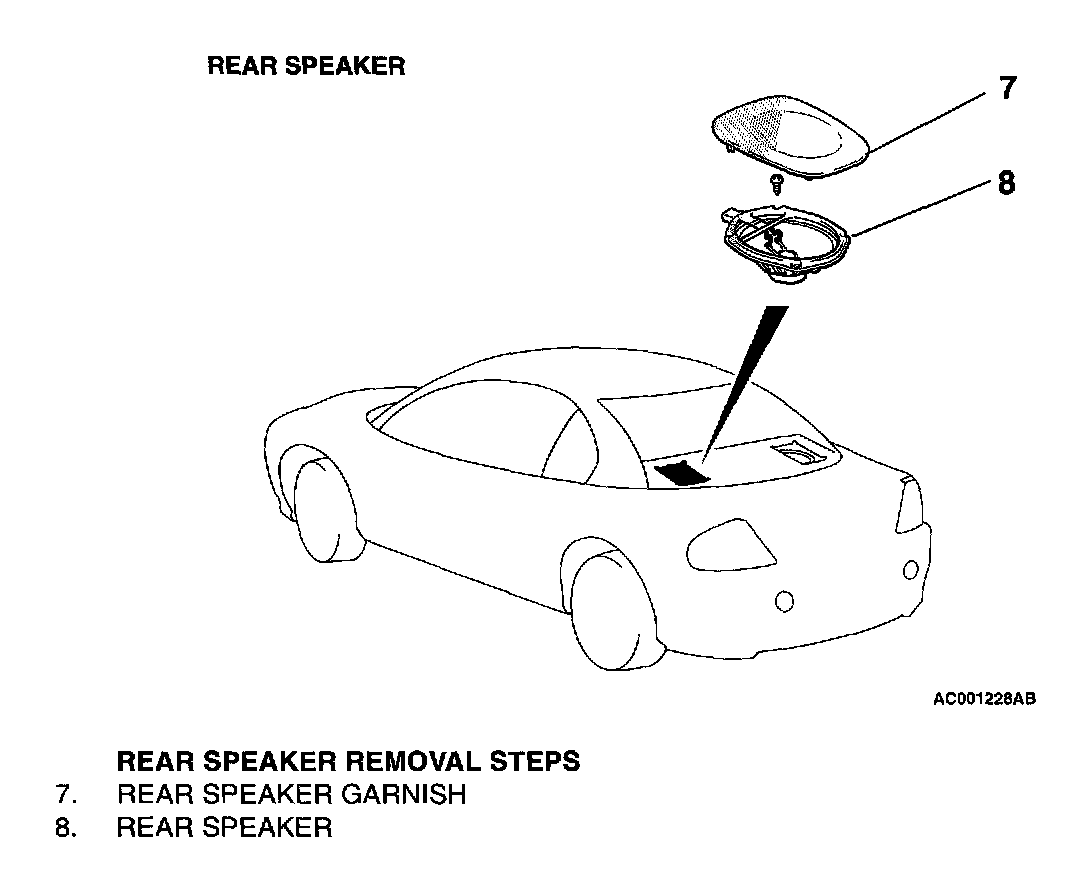

Rear Speaker:
