P1495

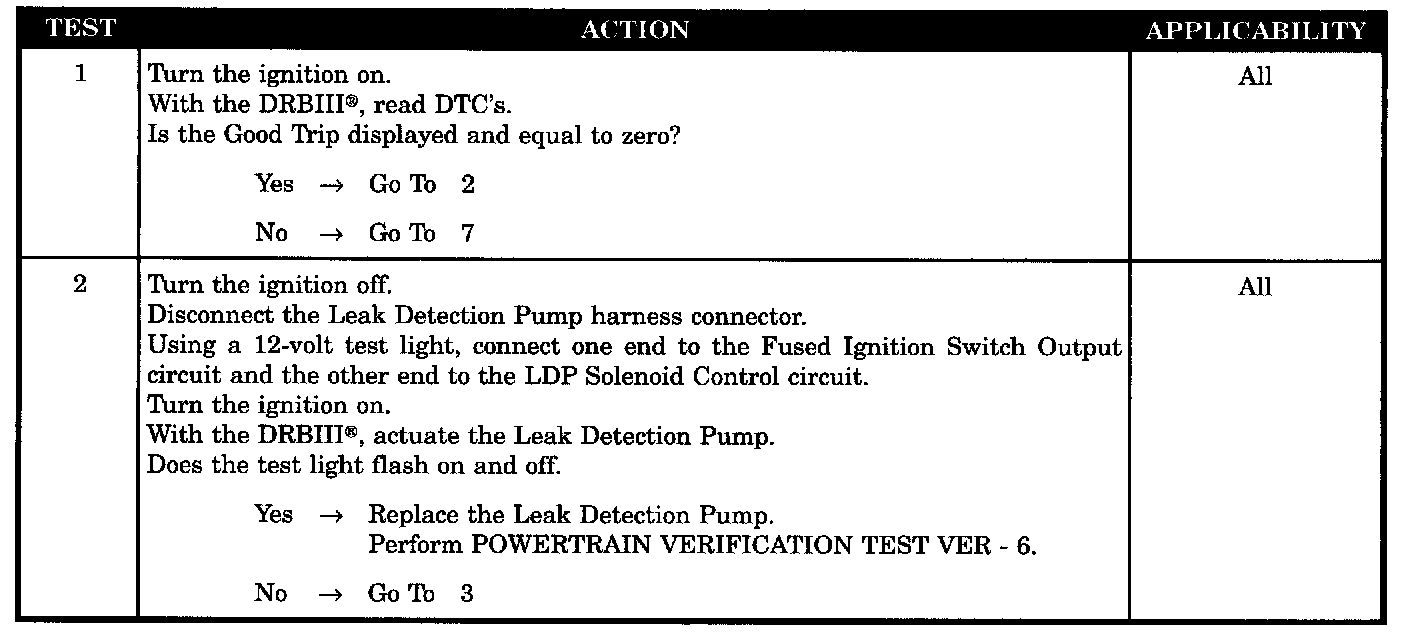

Tests 1 - 2:

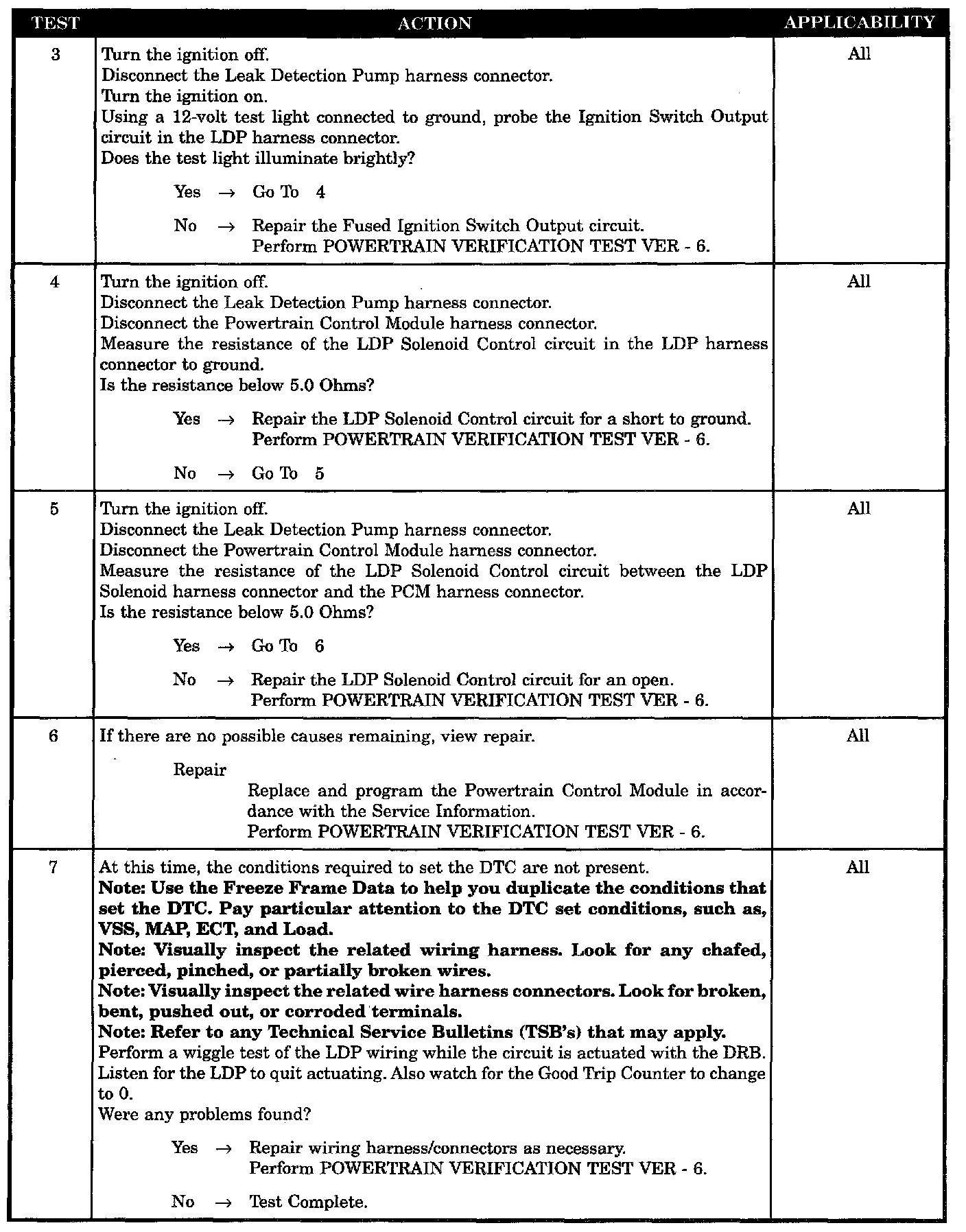

Tests 3 - 7:

SYMPTOM
P1495-LEAK DETECTION PUMP SOLENOID CIRCUIT

WHEN MONITORED
Immediately after a cold start, with battery/ambient temperature between 4.4 °C (40 °F). F and 32 °C (90 °F). Coolant temperature within -6.6 °C (20 °F) of battery/ambient.

SET CONDITION
The state of the solenoid circuit does not match the PCM's desired state.

POSSIBLE CAUSES
- Wiring Harness Intermittent
- Leak Detection Pump
- Fused Ignition Switch Output
- LDP Solenoid Control Circuit Shorted To Ground
- LDP Solenoid Control Circuit Open
- PCM
