No Response From ORC (Occupant Restraint Controller Module)

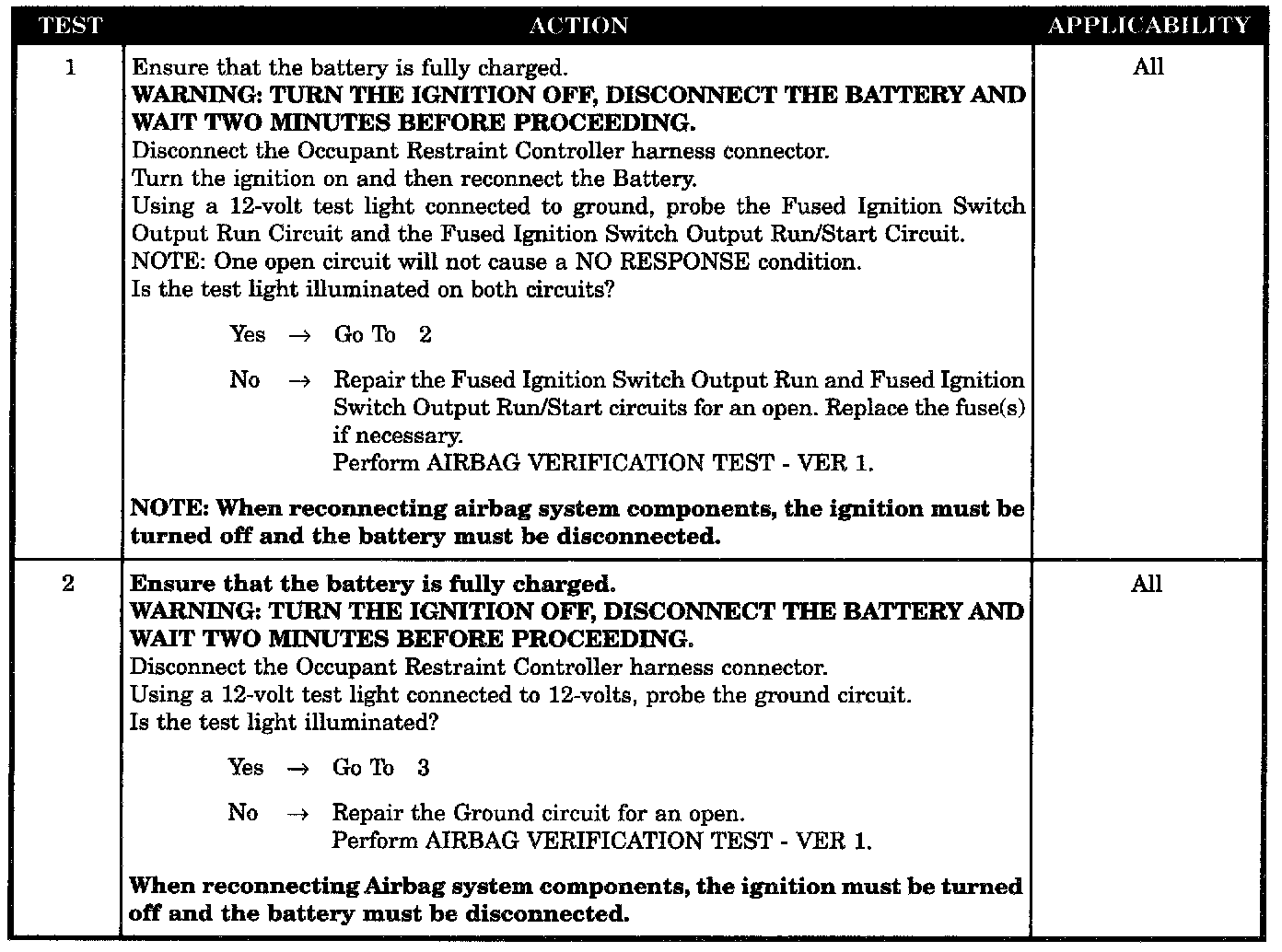

Test 1 - 2:

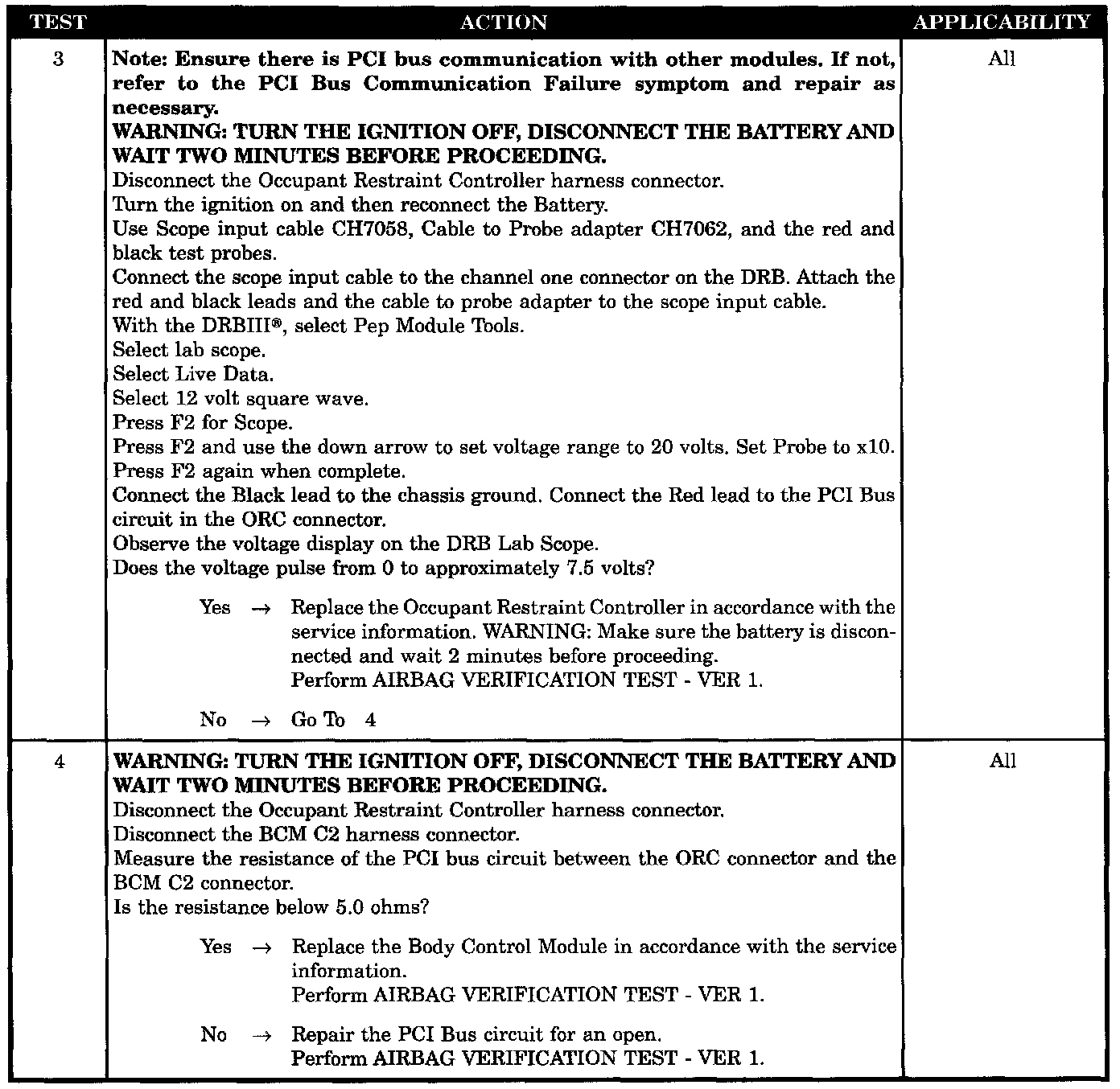

Test 3 - 4:






SYMPTOM
NO RESPONSE FROM ORC

POSSIBLE CAUSES
- Checking for voltage at ORC
- ORC ground circuit open
- Occupant restraint controller
- PCI BUS circuit open
- Body control module
