Removal

Output Shaft / <F5M51> 3.0L:

REMOVAL SERVICE POINTS






<< A >>
BALL BEARING REMOVAL
1. Using special tool MD998917, support the ball bearing, and then set them on the press.
2. Push down on the output shaft with the press, and take out the ball bearing.







<< B >>

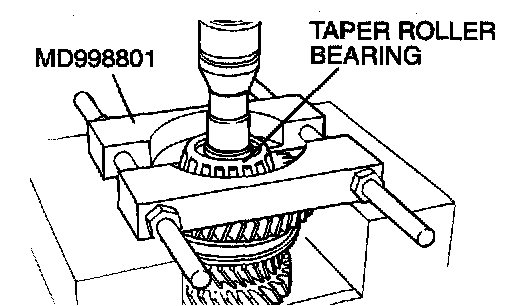

TAPER ROLLER BEARING REMOVAL
1. Using special tool MD998801, support the taper roller bearing, and then set them on the press.
2. Push down on the output shaft with the press, and take out the taper roller bearing.






<< C >>

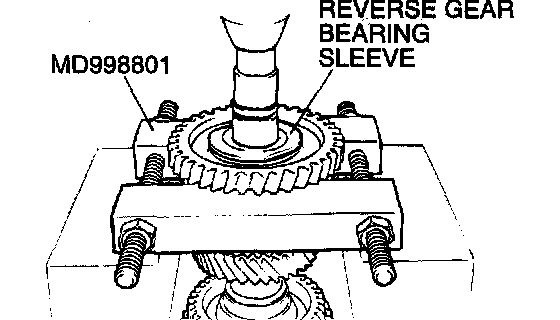

REVERSE GEAR BEARING SLEEVE REMOVAL
1. Using special tool MD998801, support the reverse gear, and then set them on the press.
2. Push down on the output shaft with the press and remove the reverse gear bearing sleeve.







<< D >>
5TH SPEED-REVERSE SYNCHRONIZER HUB REMOVAL
1. Using special tool MD998801, support the 4th speed gear, and then set them on the press.
2. Push down on the output shaft with the press and remove the 5th speed-reverse synchronizer hub.







<< E >>

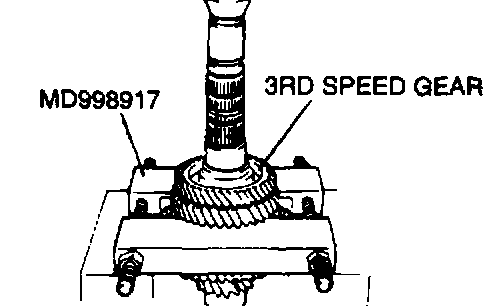

3RD SPEED GEAR REMOVAL
1. Using special tool MD998917, support the 2nd speed gear, and then set them on the press.
2. Push down the output,shaft with the press and remove 3rd speed gear.







<< F >>

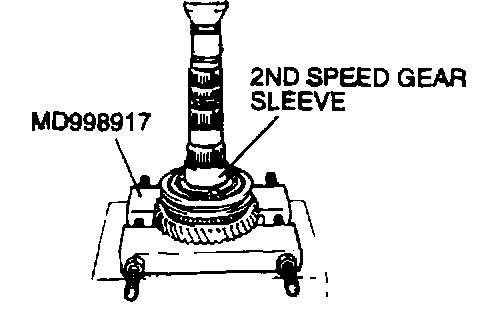

2ND SPEED GEAR- SLEEVE REMOVAL
1. .Using special tool MD998917, support the 1st speed gear, And then set them on the press.
2. Push down on the output shaft with the press and remove the 2nd speed gear sleeve.










<< G >>
1ST SPEED GEAR SLEEVE REMOVAL
1. Using special tool MD998801, support the 1st speed gear sleeve and, then set them on the press.
2. Push down on the output shaft with the press and remove the 1st speed gear sleeve.







<< H >>
ROLLER BEARING INNER RACE REMOVAL
1. Using special tool MD998917, support the roller bearing inner race, and then set them on the press.
2. Push down on the output shaft with the press and remove the roller bearing inner race.







<< I >>
TAPER ROLLER BEARING REMOVAL
1. Using special tool MD998801, support the taper roller bearing, and then set them on the press.
2. Push down on the output shaft with the press and remove the taper roller bearing.
