Shift Interlock: Service and Repair

F4A51 - Automatic Transmission
A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

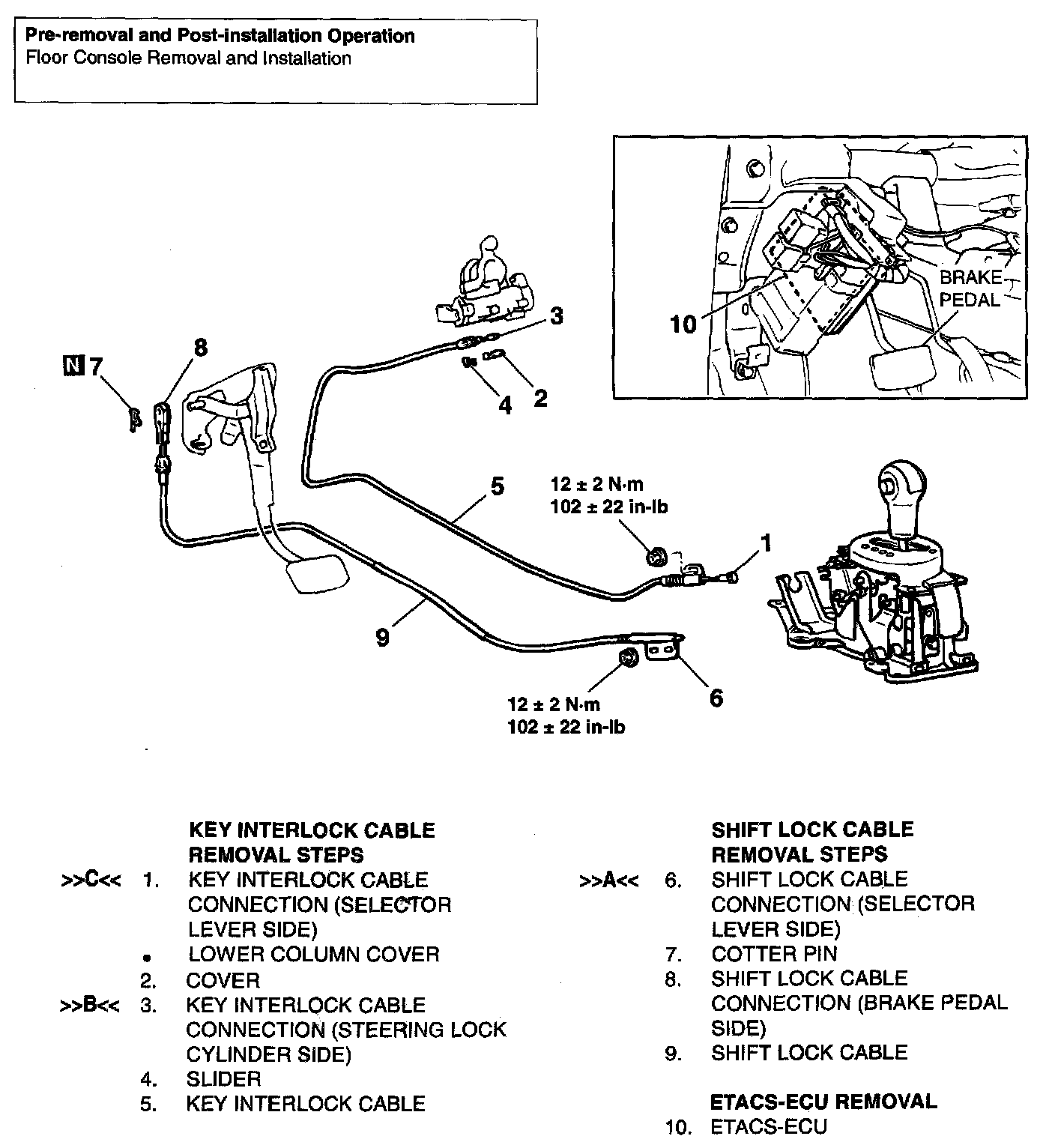

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS - REMOVAL AND INSTALLATION:

>> A <<
SHIFT LOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION
1. Place the selector lever in "P" position.






2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red" mark.



>> B <<
KEY INTERLOCK CABLE (STEERING LOCK CYLINDER SIDE) INSTALLATION
Turn the ignition key to the "LOCK" (OFF) position and install the key interlock cable.






>> C <<
KEY INTERLOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION

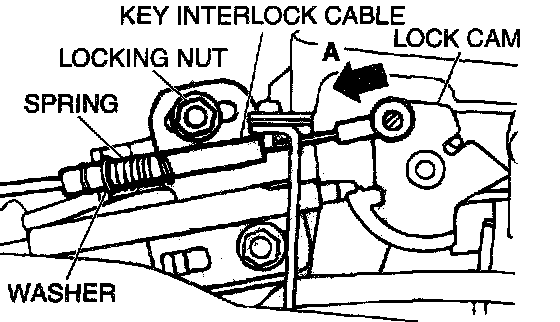

1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the locking nut to the specified torque.


Tightening torque:...........12 ± 2 Nm (102 ± 22 inch lbs.)

INSPECTION
Check the cable assembly for function and for damage.
