Seals and Gaskets: Service and Repair

Drive Shaft Oil Seal:

DRIVE SHAFT OIL SEAL

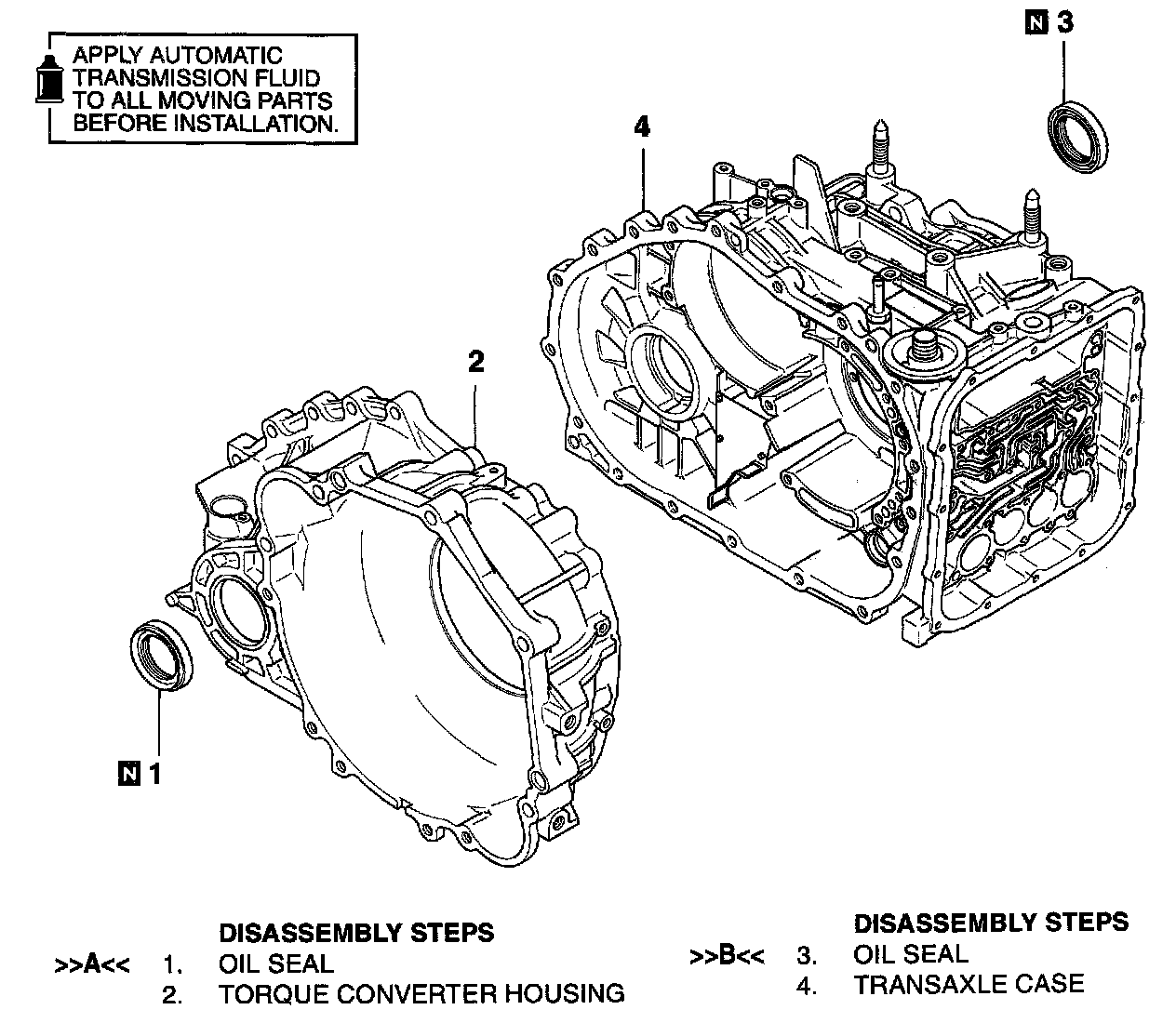

DISASSEMBLY AND ASSEMBLY






>> A <<
OIL SEAL INSTALLATION

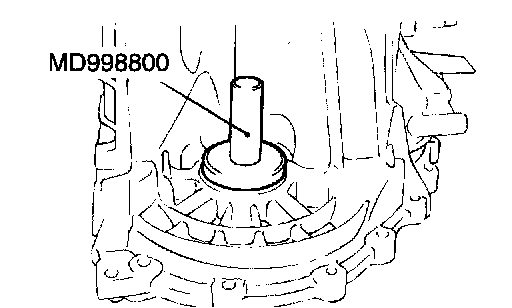

Use special tool MD998800 to tap the oil seal into the torque converter housing.






>> B <<
OIL SEAL INSTALLATION
Use special tool MD998800 to tap the oil seal in the transaxle case.
