Wiring Diagrams

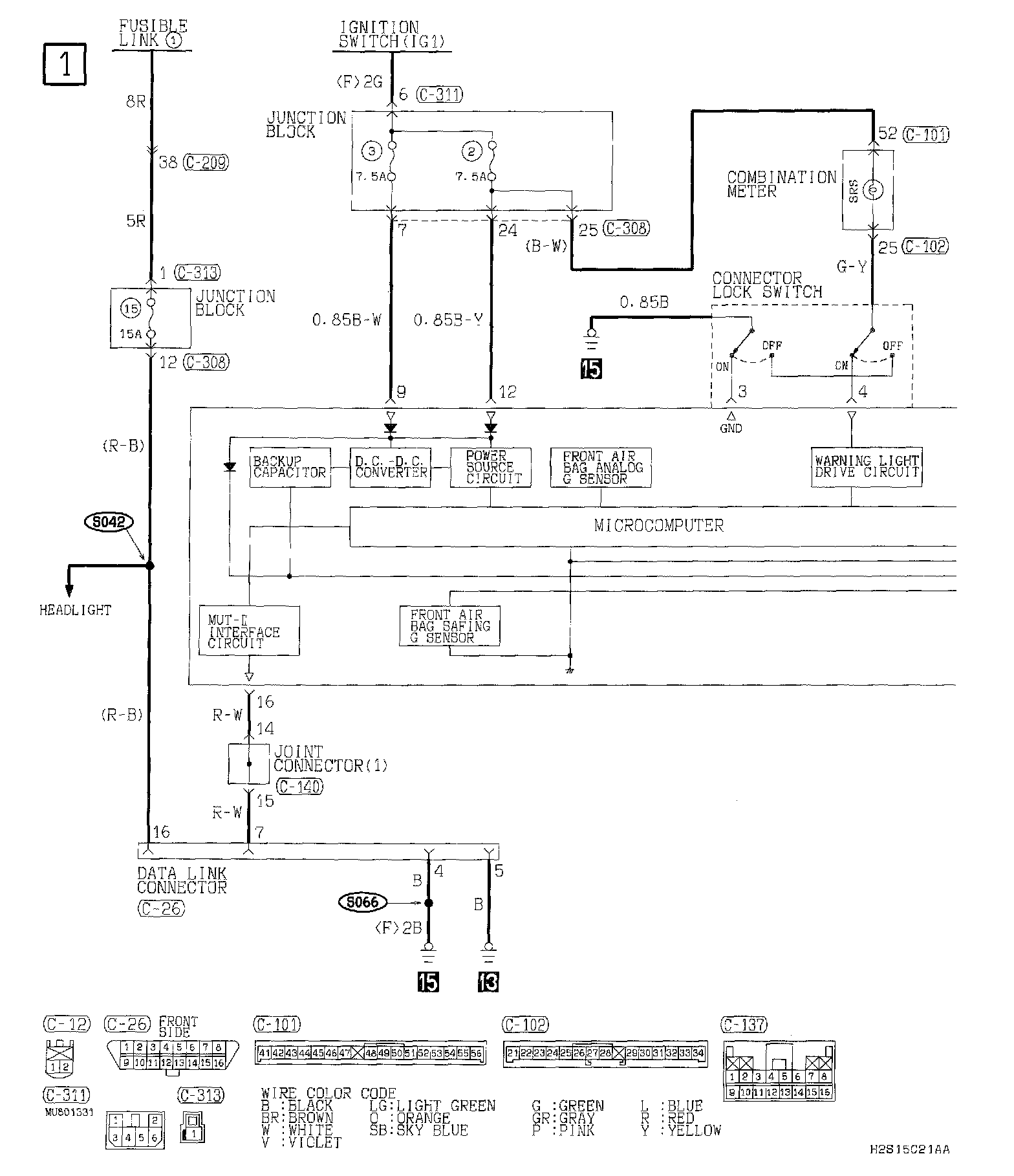

Supplemental Restraint System (SRS) Part 1:

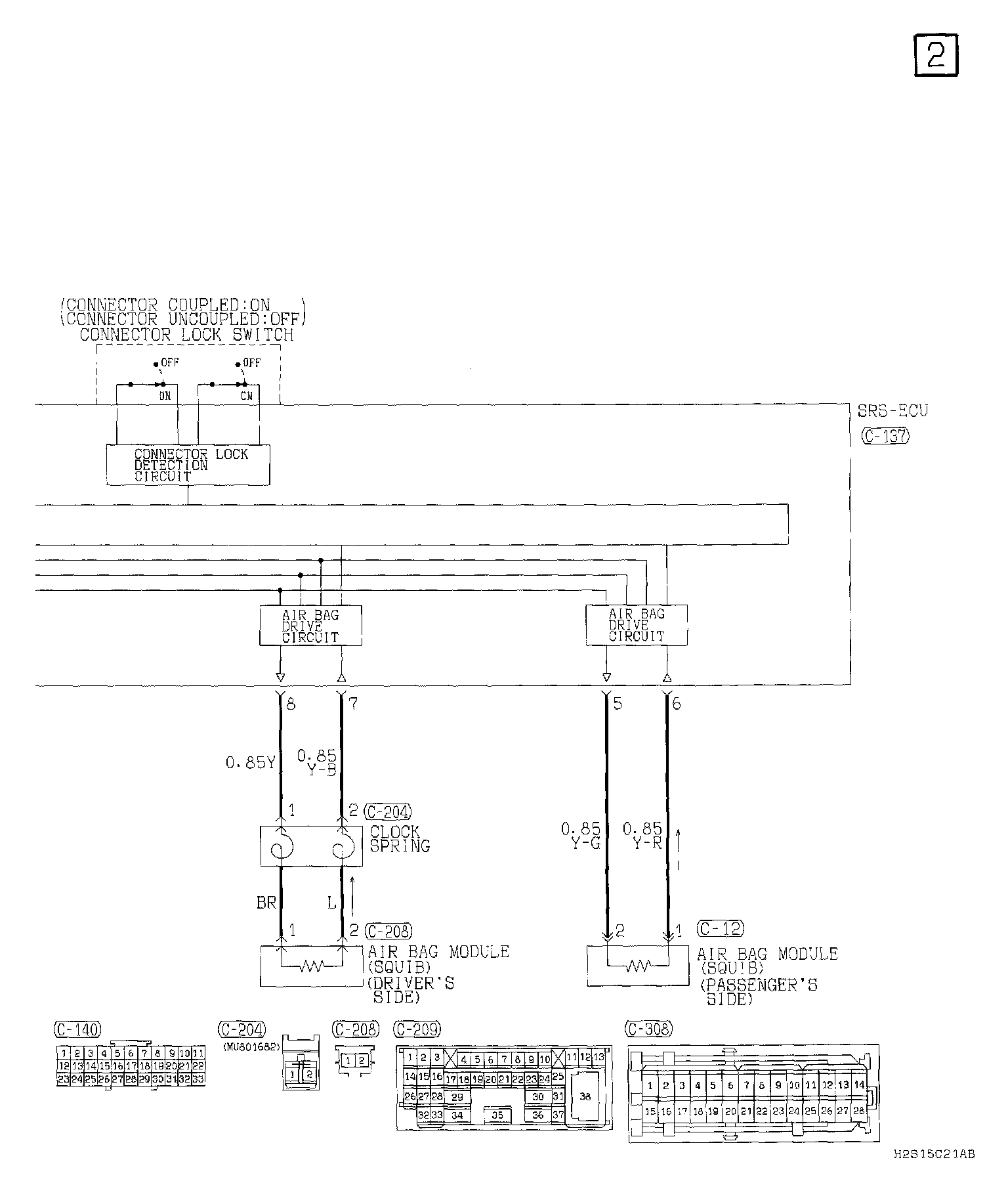

Supplemental Restraint System (SRS) Part 2:
