Vehicles For Canada

Headlight Part 1:

Headlight Part 2:

Headlight Part 3:

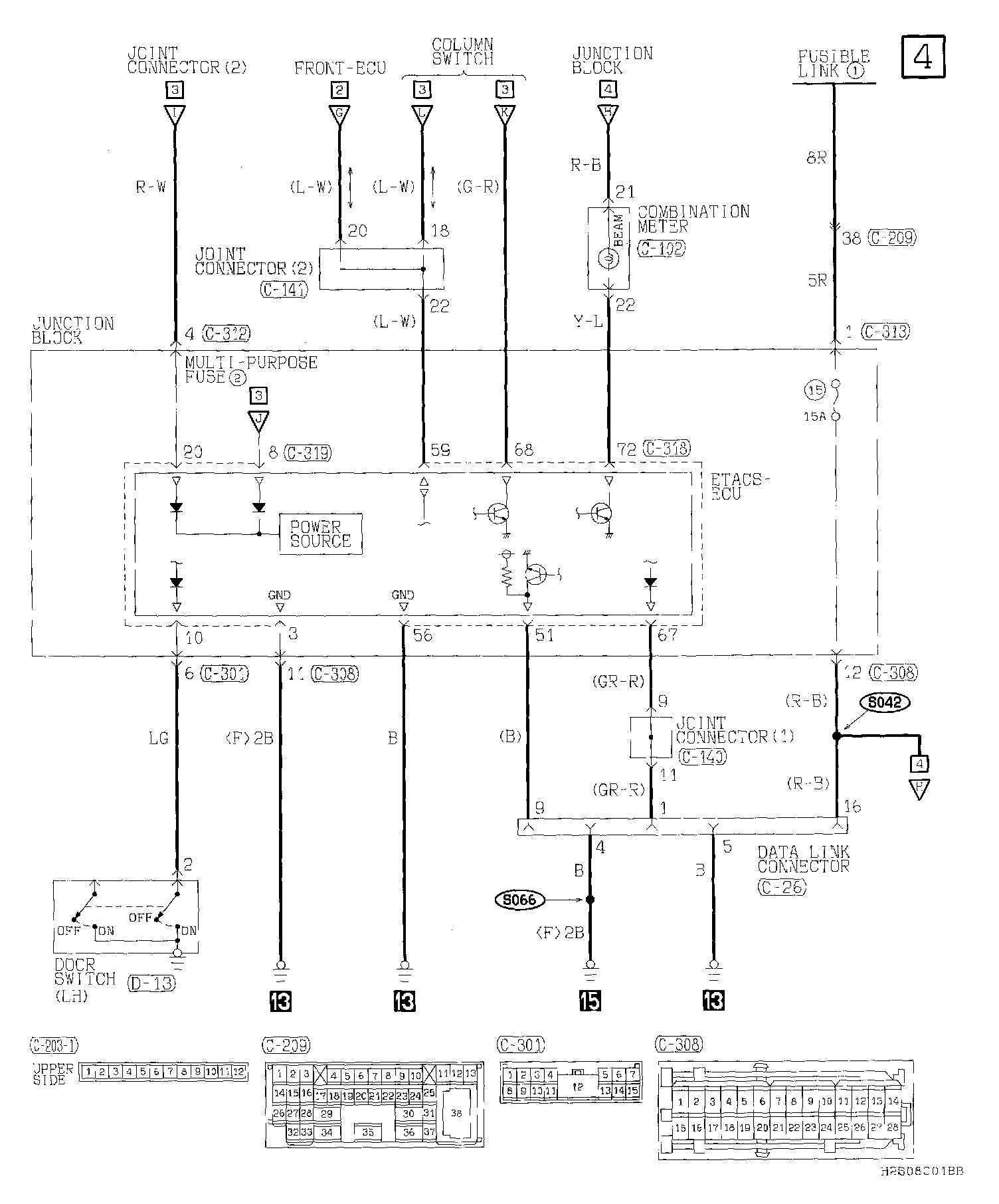

Headlight Part 4:

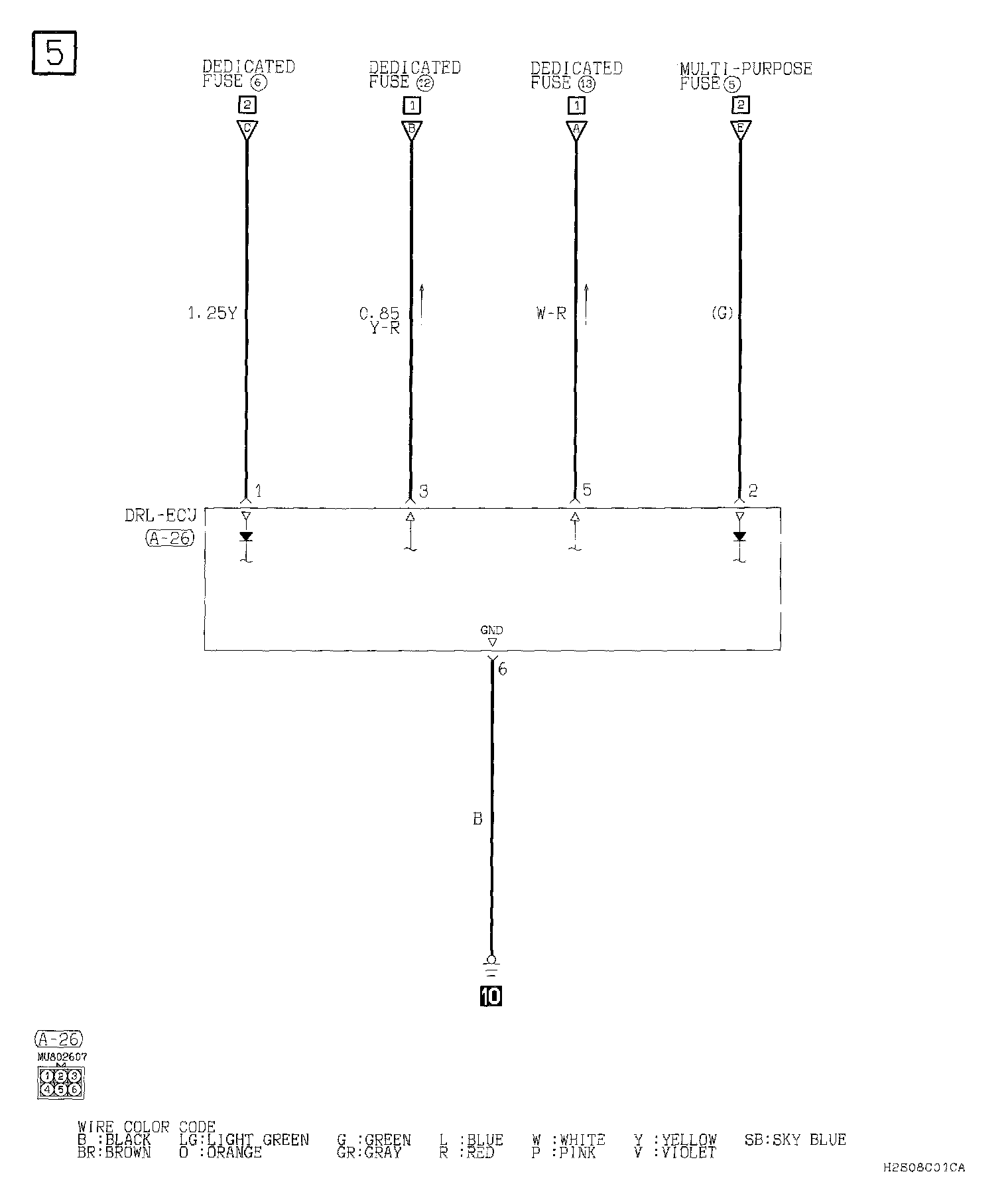

Headlight Part 5:
