Inspection Procedure 5

The Ambient Temperature and Compass Screen do not Change.

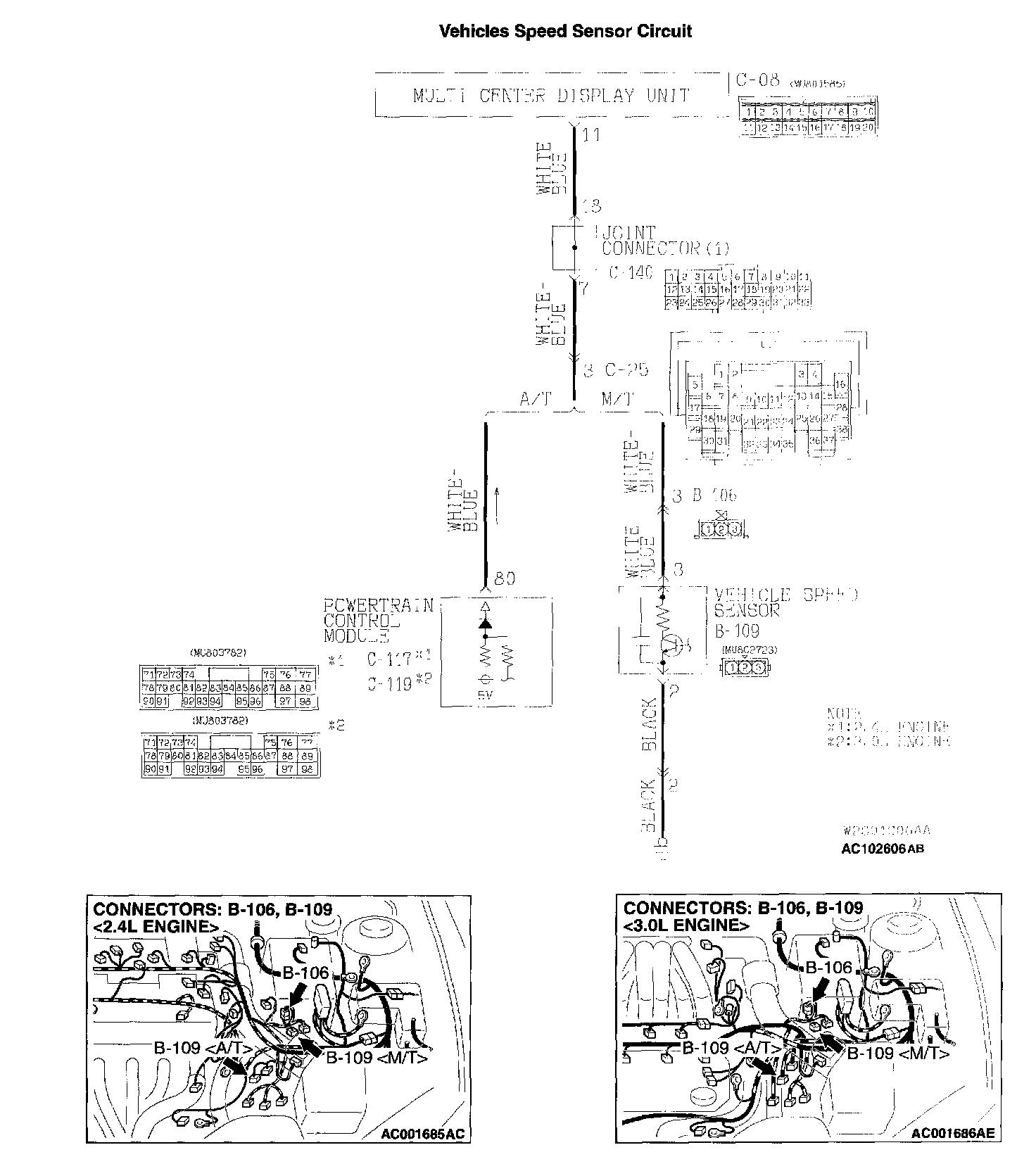

Vehicle Speed Sensor Circuit:

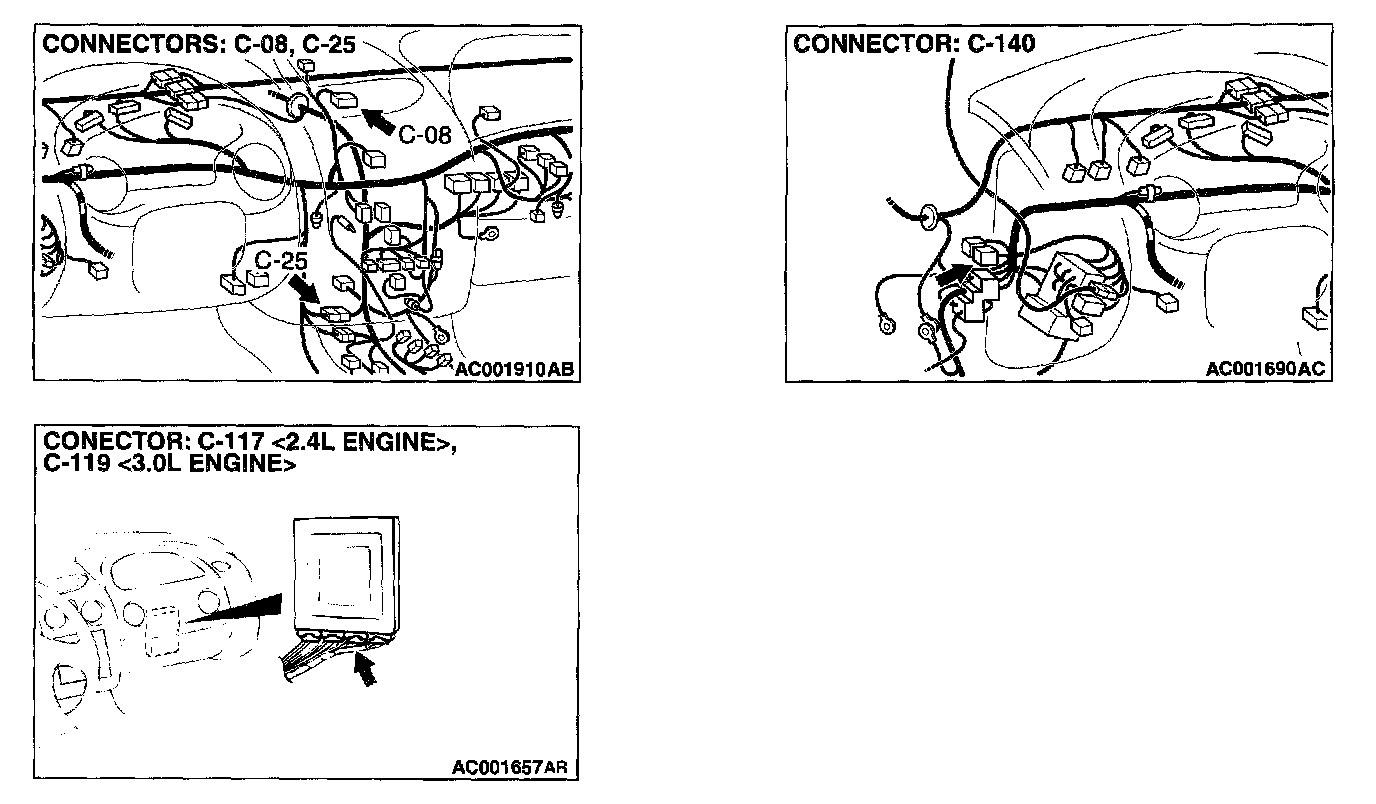

Connectors:

CIRCUIT OPERATION
Vehicle speed sensor signal is sent to multi-center display.

TECHNICAL DESCRIPTION (COMMENT)
Ambient temperature and compass display on multi-center display won't be updated until vehicle speed gets 10 kph (6.2 mph) or more.

TROUBLESHOOTING HINTS
- Malfunction of the vehicles speed sensor.
- Malfunction of the multi-center display.
- Damaged harness wires and connectors

DIAGNOSIS

STEP 1. Check the speedometer

Q: Is the speedometer in good condition?

YES: Go to Step 2.
NO: Refer to combination meter - Troubleshooting.










STEP 2. Check the connector between vehicles speed sensor connector B-109 and multi-center display connector C-08 for damage.

Q: Are the vehicles speed sensor connector B-109 and multi-center display connector C-08 in good condition?

YES: Go to Step 3.
NO: Repair or replace it. Refer to Harness Connector Inspection.













STEP 3. Check the harness wires between vehicles speed sensor connector B-109 and multi-center display connector C-08.

NOTE: After checking intermediate connector C-25, B-106 , joint connector C-140, check the wires. If intermediate connector C-25, B-106 , joint connector C-140 are damaged, repair or replace them. Refer to Harness Connector Inspection.

Q: Is the harness wires between vehicles speed sensor connector B-109 and multi-center display connector C-08 in good condition?

YES: Replace the multi-center display.
NO: Repair or replace it. Refer to Harness Connector Inspection.
