Home >> Chrysler >> 2002 >> Sebring LX Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Components >> Other Devices

Other Devices

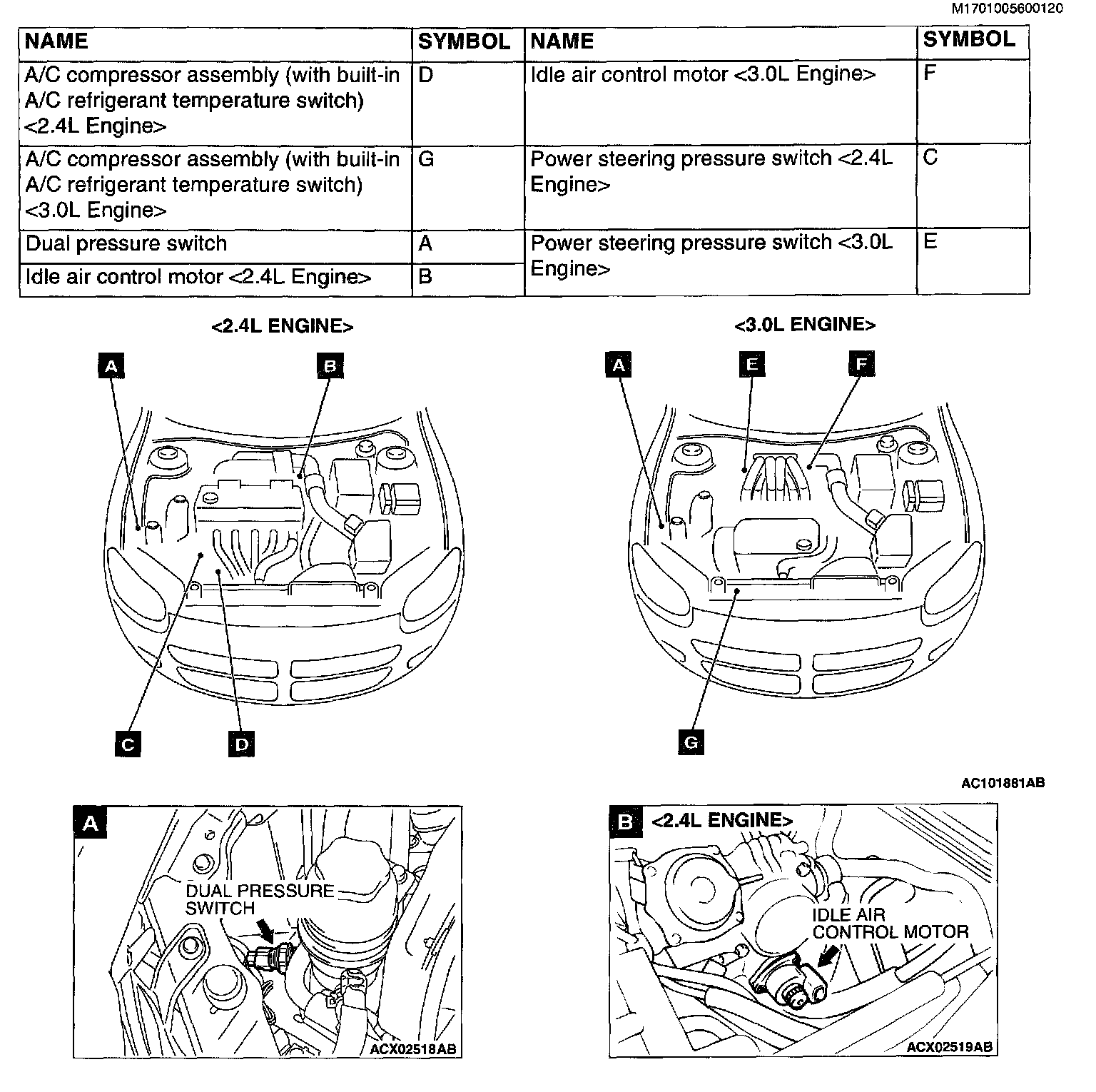

Other Devices Location Index, Overall Views And Views A - B:

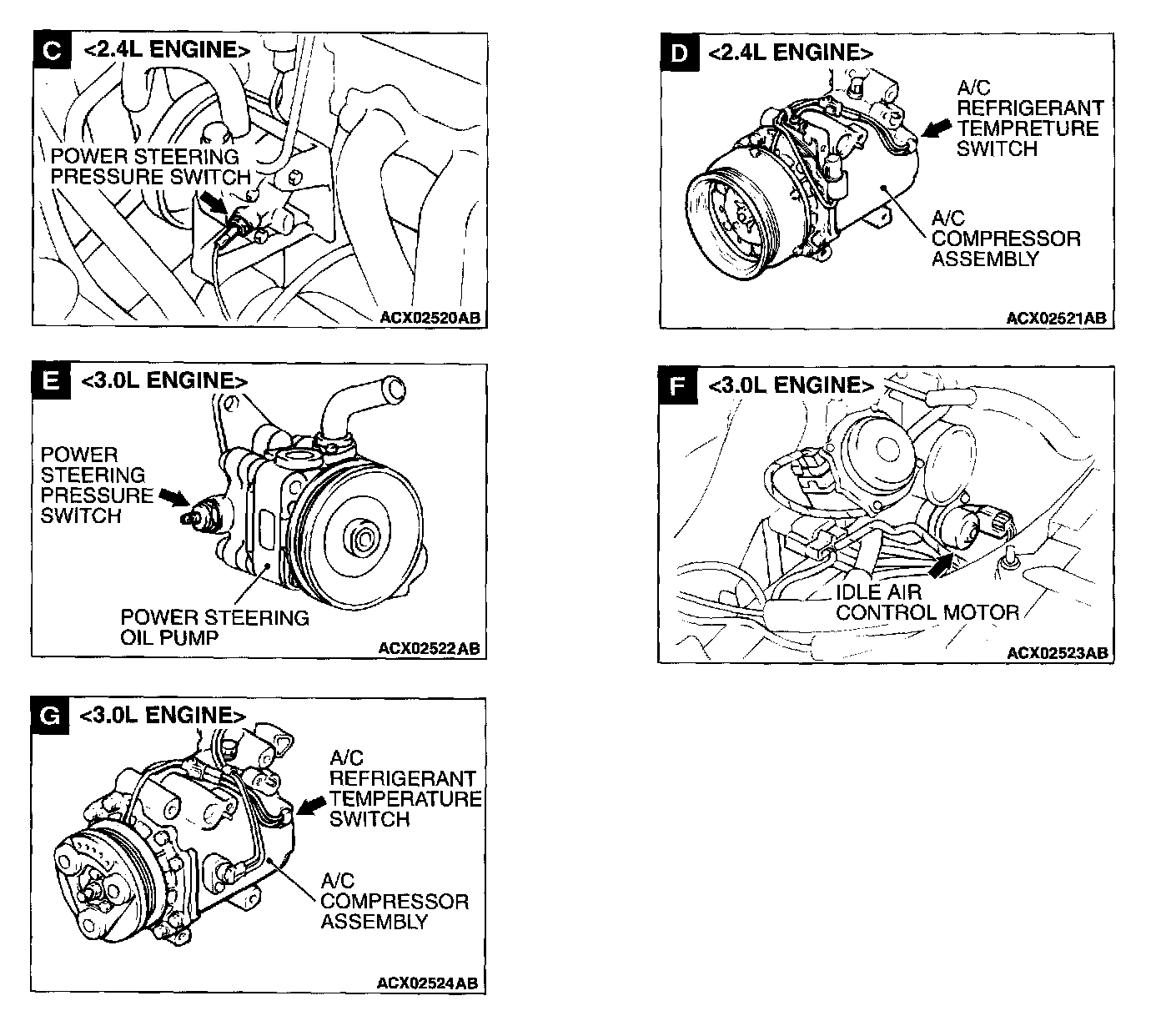

Views C - G:
