Adjustment Before Assembly
ADJUSTMENT BEFORE ASSEMBLY
SPACER SELECTION FOR DIFFERENTIAL CASE PRELOAD ADJUSTMENT

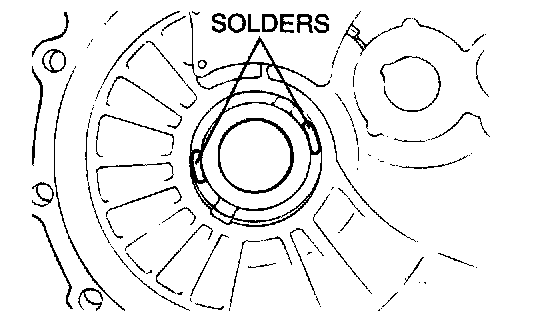

1. Put solders [1.6 mm (0.063 inch) diameter, about. 10 mm (0.39 inch) long] in the illustrated positions of the transaxle case.
2. Install the taper bearing outer race and differential assembly into the transaxle case.
NOTE: If necessary, replace the differential case and taper bearing before carrying out these adjustments.
3. Install the clutch housing and tighten the bolts to the specified torque.
Tightening torque:............44 ± 5 Nm (33 ± 4 ft. lbs.)
4. Remove the clutch housing, and then remove the differential assembly.
5. Remove the outer race and take out crushed solders.

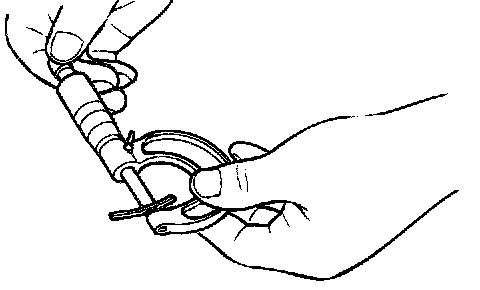

6. Measure the thickness of the crushed solder with a micrometer and select a spacer that will provide the standard preload value.
Standard value:.............0.05 - 0.11 mm (0.0020 - 0.0043 inch) preload
