Electrical Diagrams

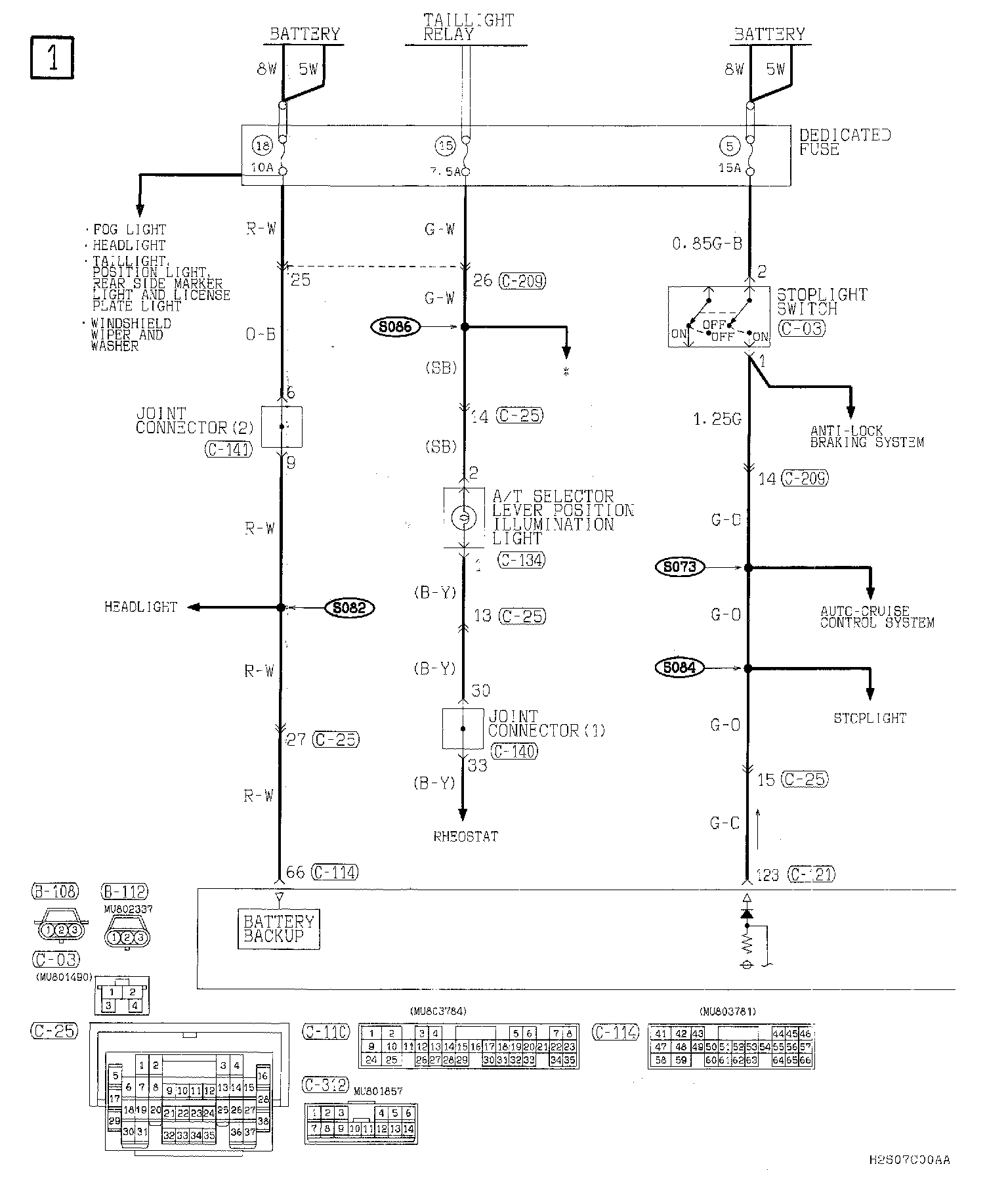

IVECS-II 4A/T <2.4L Engine> - Part 1:

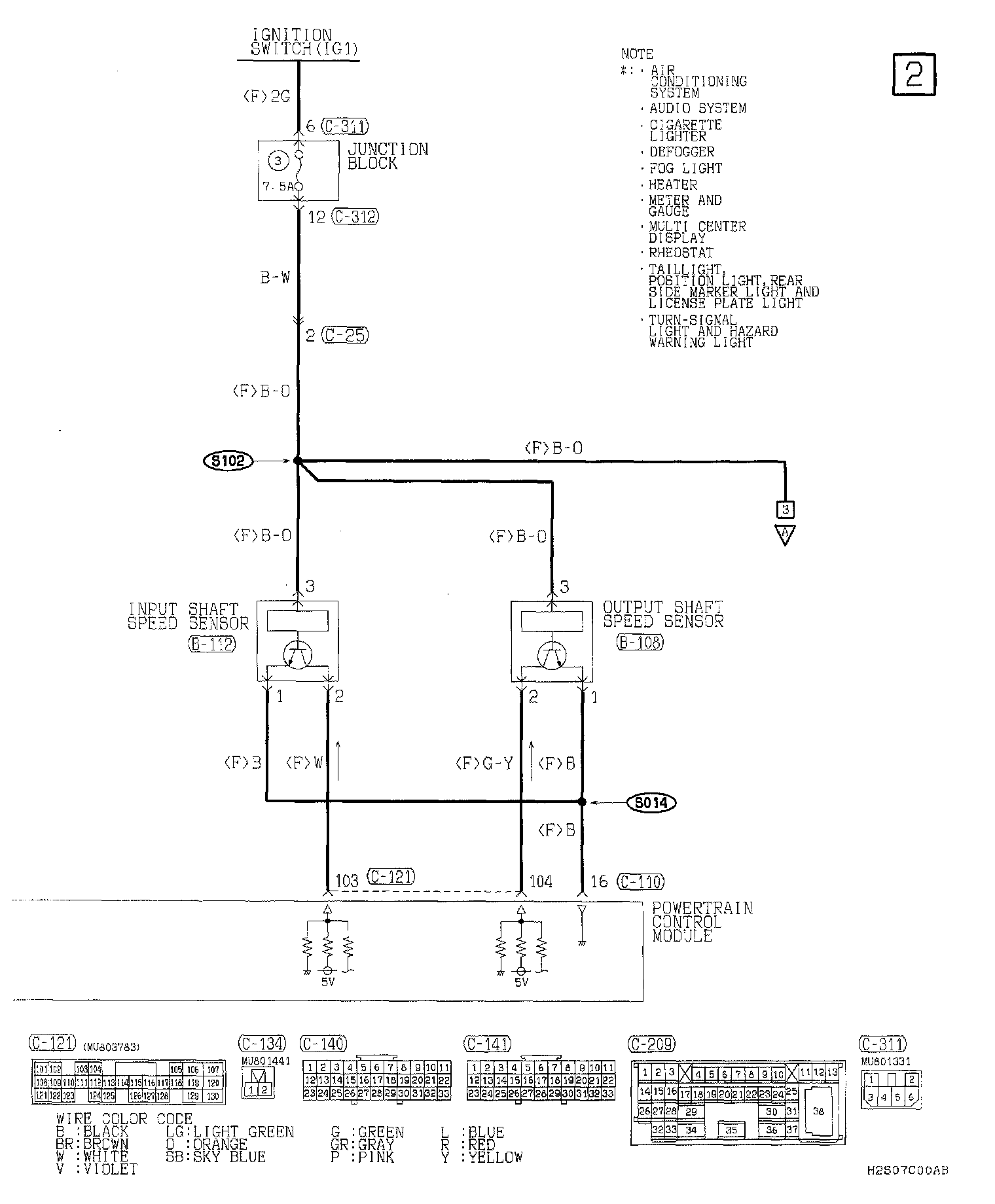

IVECS-II 4A/T <2.4L Engine> - Part 2:

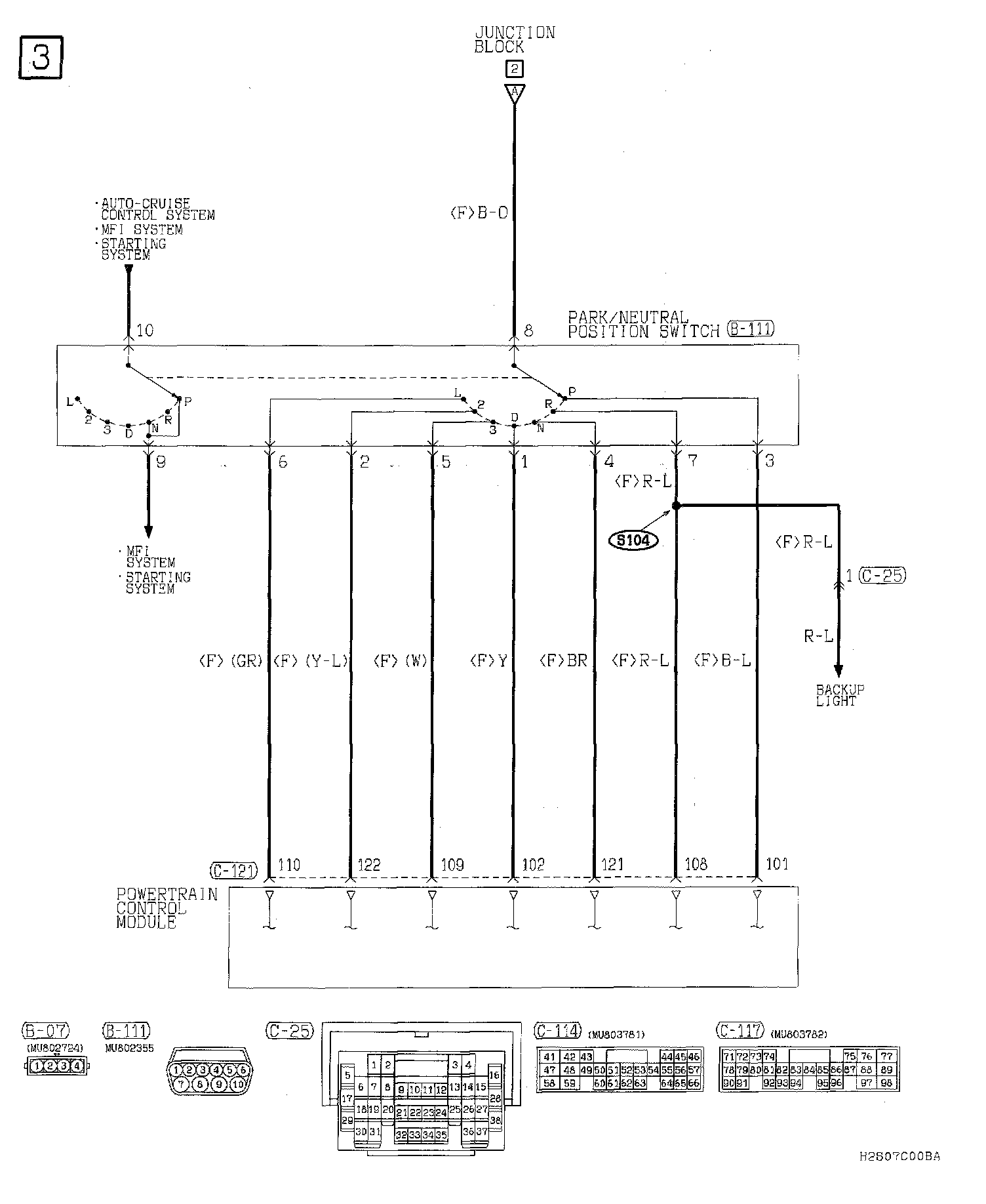

IVECS-II 4A/T <2.4L Engine> - Part 3:

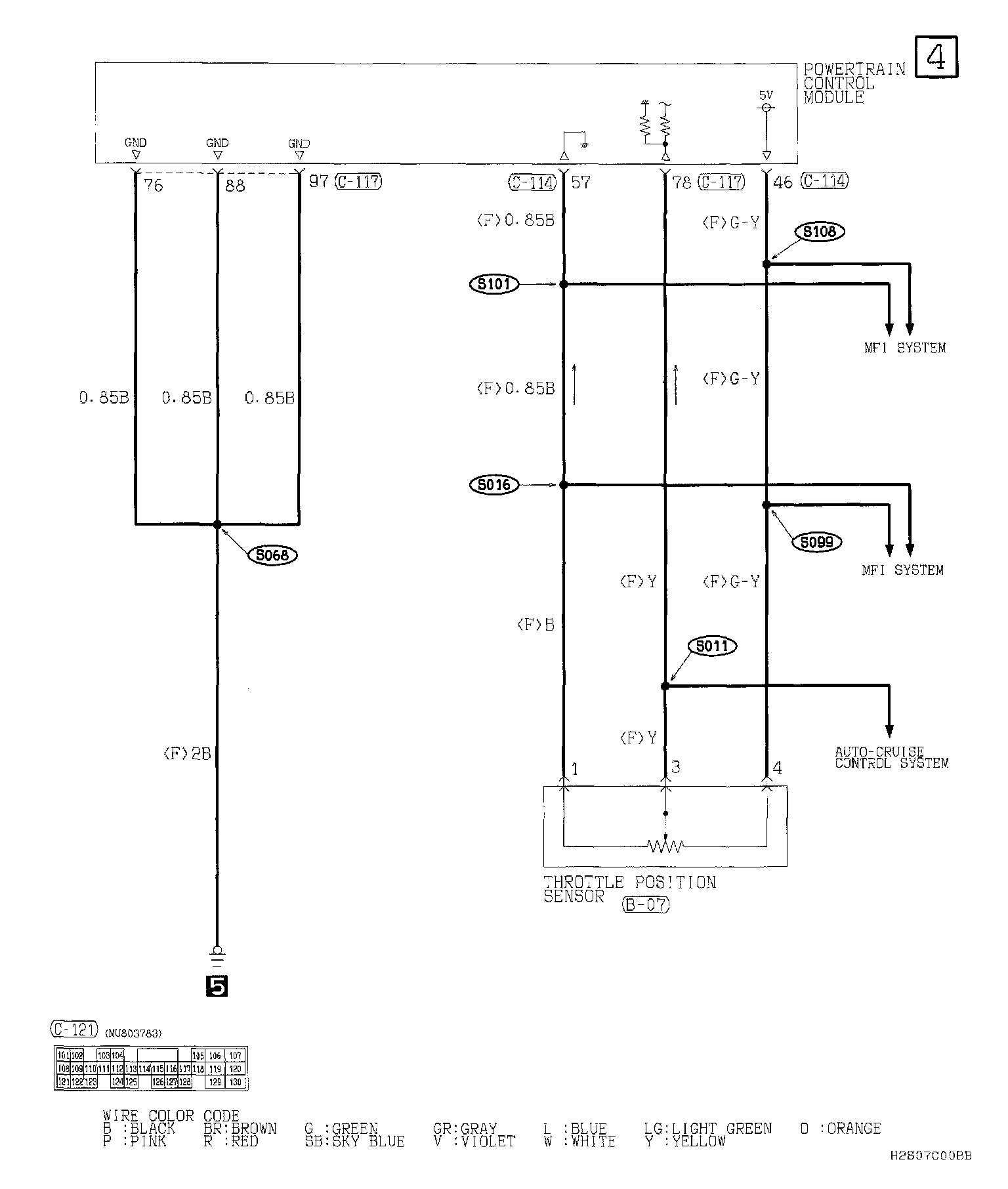

IVECS-II 4A/T <2.4L Engine> - Part 4:

IVECS-II 4A/T <2.4L Engine> - Part 5:

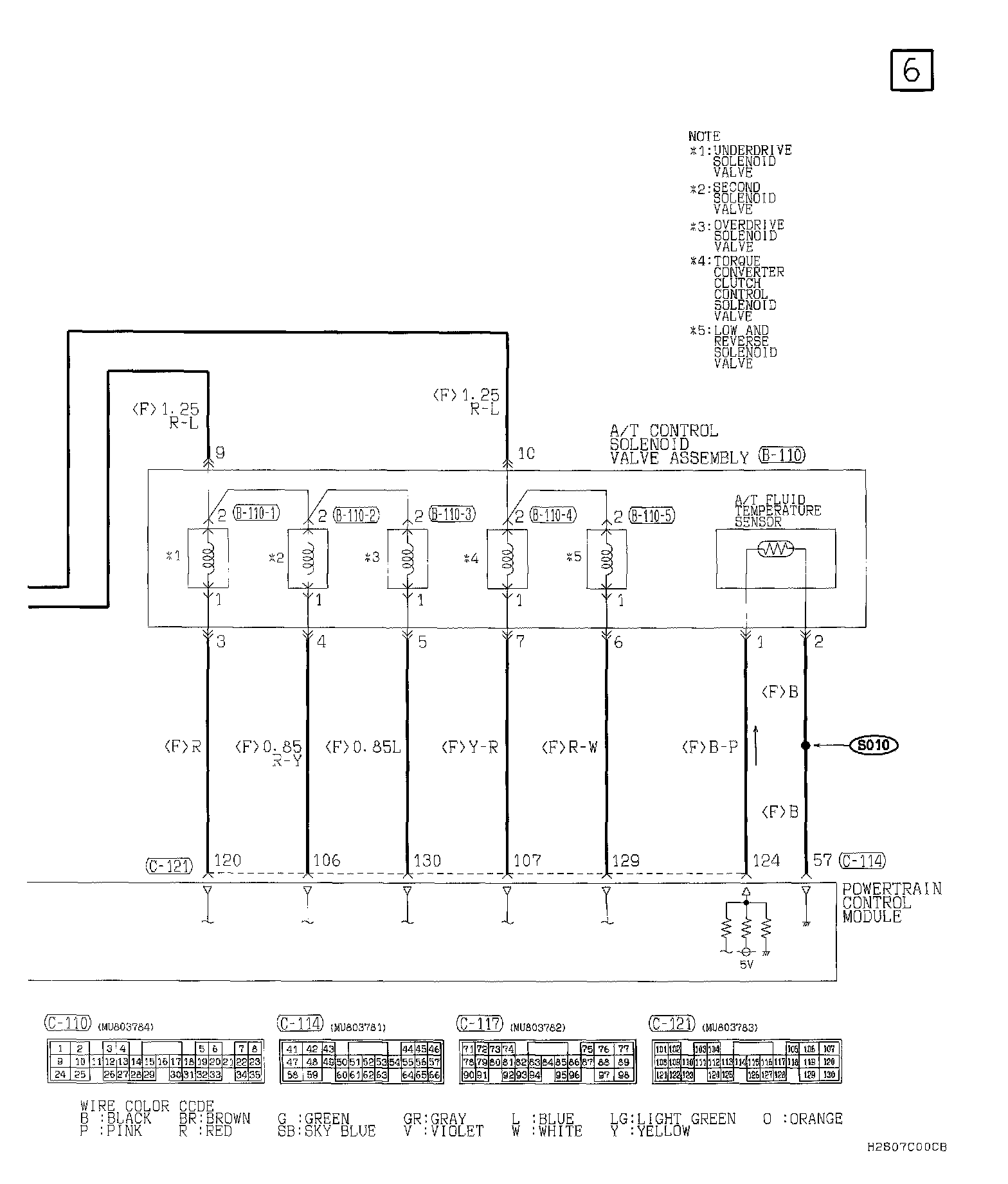

IVECS-II 4A/T <2.4L Engine> - Part 6:

IVECS-II 4A/T <2.4L Engine> Part 7:

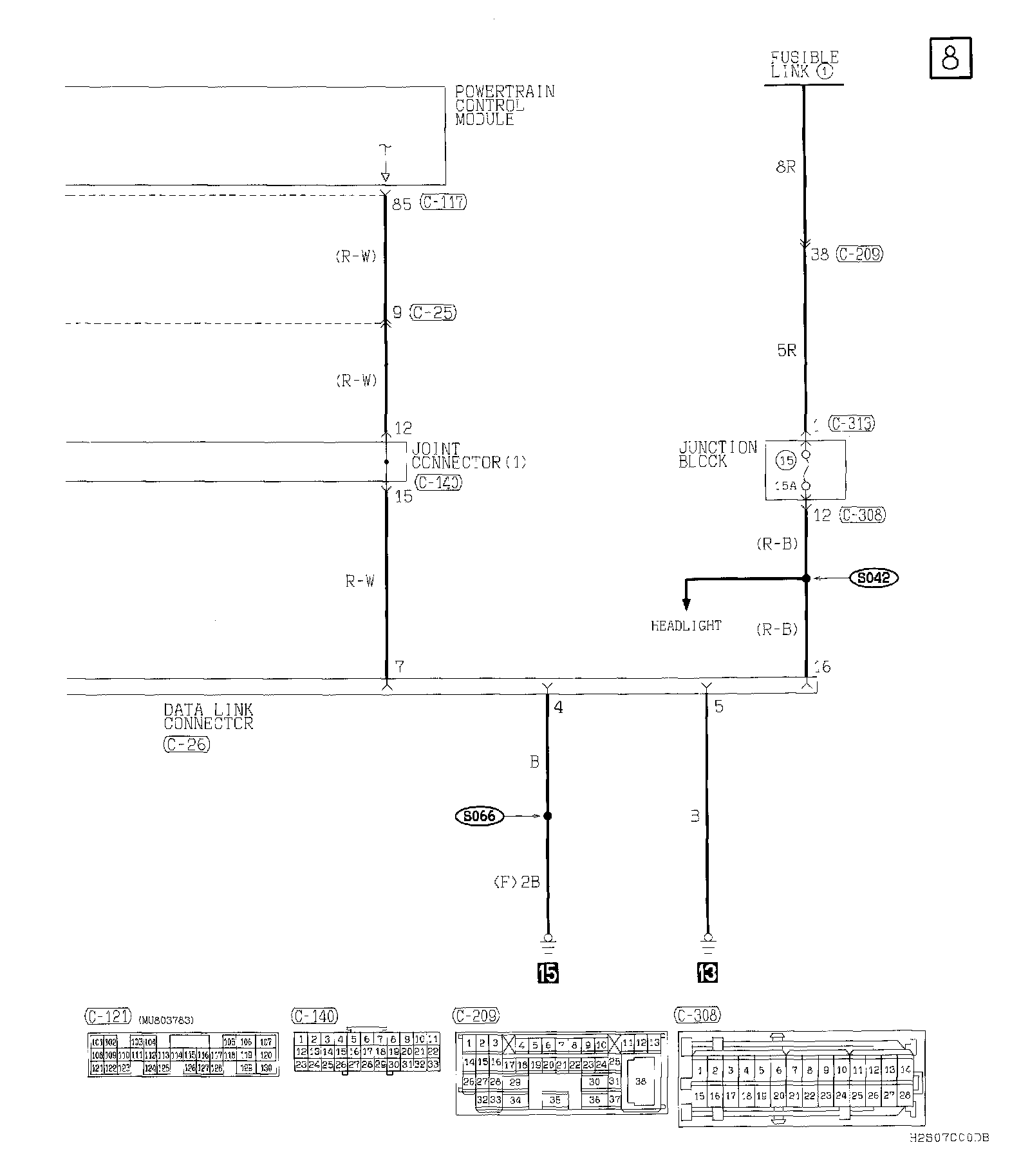

IVECS-II 4A/T <2.4L Engine> Part 8:
