Removal and Installation

Removal And Installation:

INSTALLATION SERVICE POINT

Disassembly And Assembly:

>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

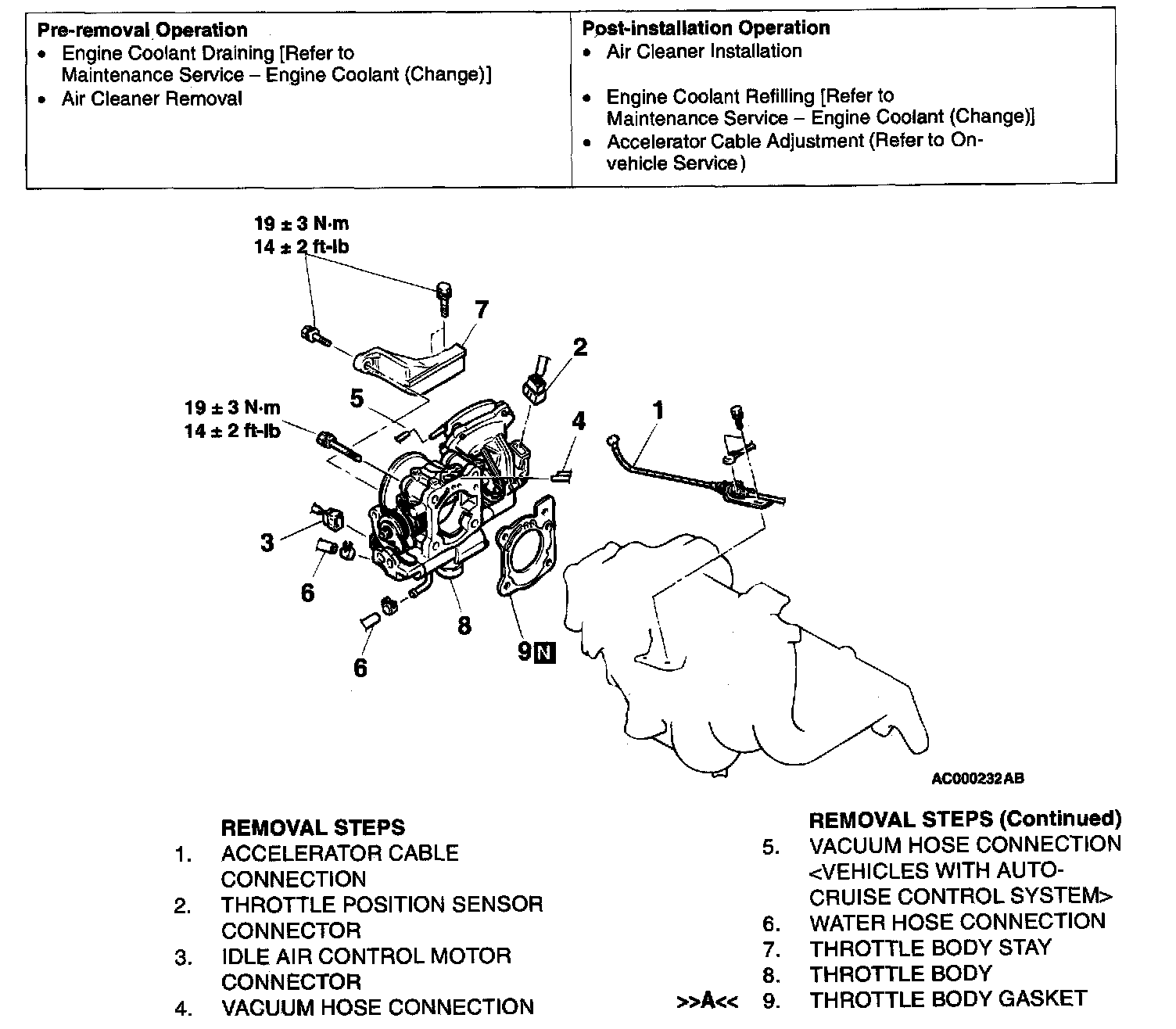

Install the throttle body gasket as shown in the illustration.
