Procedures

REMOVAL
1. Remove door trim panel.
2. Remove glass from regulator roller channel. Secure glass in the up position in the door frame.
3. Disconnect power window motor wire connector.
4. Loosen screw attaching regulator scissor channel to door panel.
5. Remove screw and bolt heads from keyhole slots in door panel.
6. Loosen bolts attaching regulator to door panel.

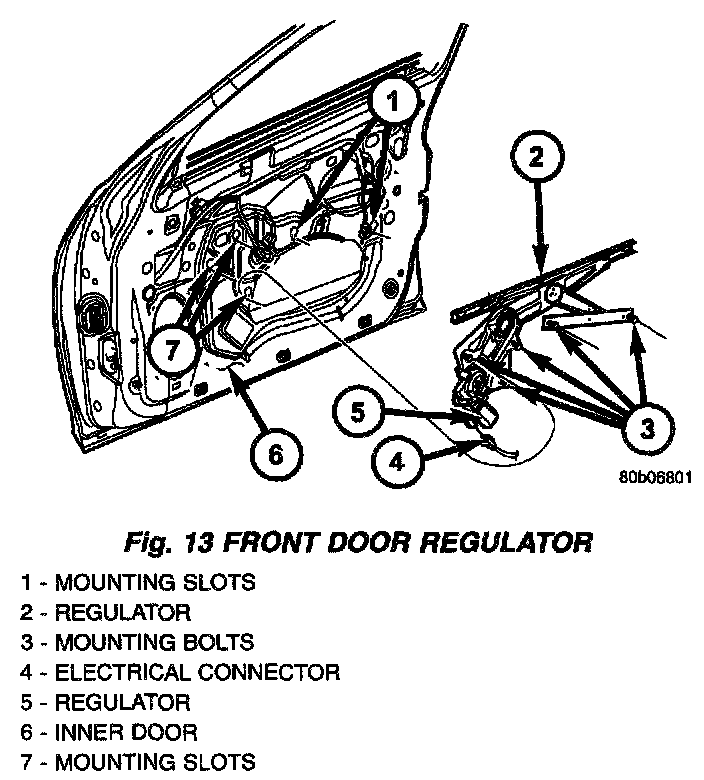

Front Door Regulator:

7. Remove regulator from door panel.
8. Slide regulator rearward and rotate forward end of roller channel through access hole in door panel.

INSTALLATION
1. Position regulator in door through access hole in door panel.
2. Position regulator on door panel.
3. Tighten bolts attaching regulator to door panel.
4. Position screw and bolt heads in keyhole slots in door panel.
5. Tighten screw attaching regulator scissor channel to door panel.
6. Connect power window motor wire electrical connector.
7. Position glass in regulator roller channel.
8. Tighten fasteners attaching door glass to roller channel.
9. Install door trim panel.
