FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
Sebring LX Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
System Specifications
System Specifications

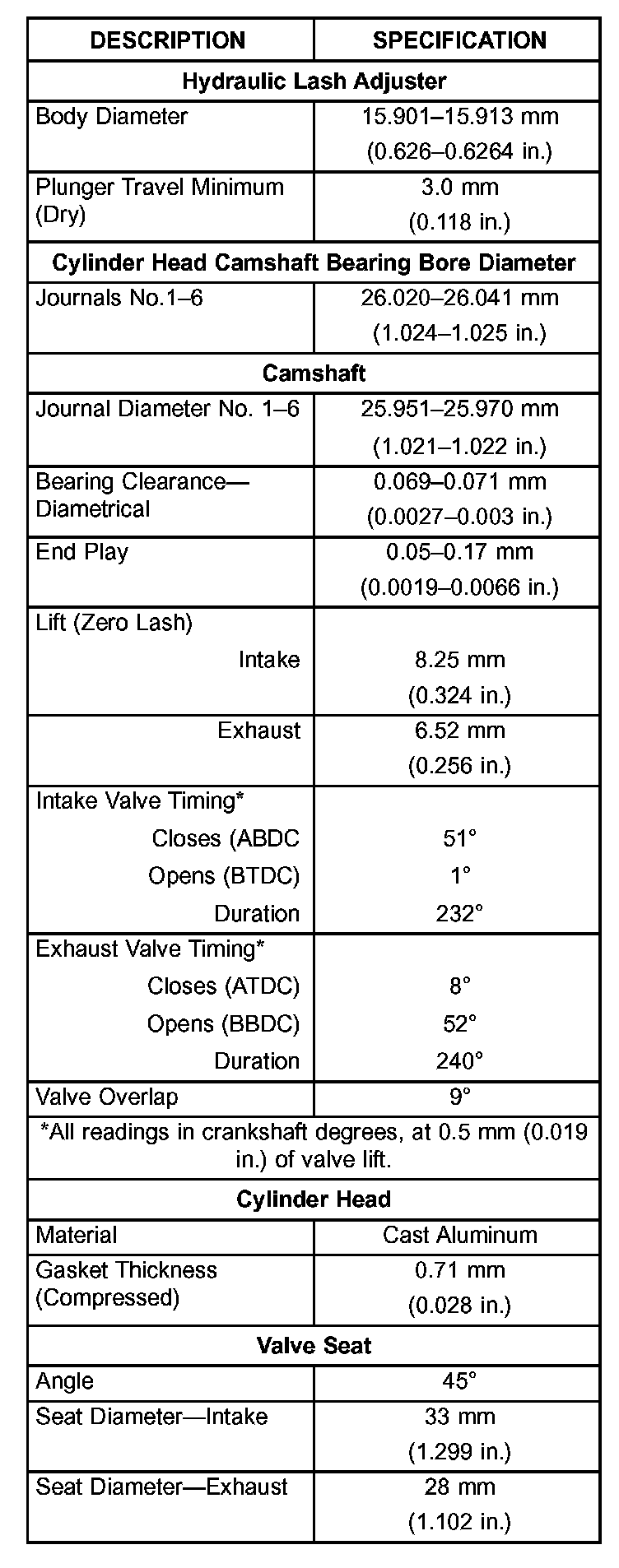

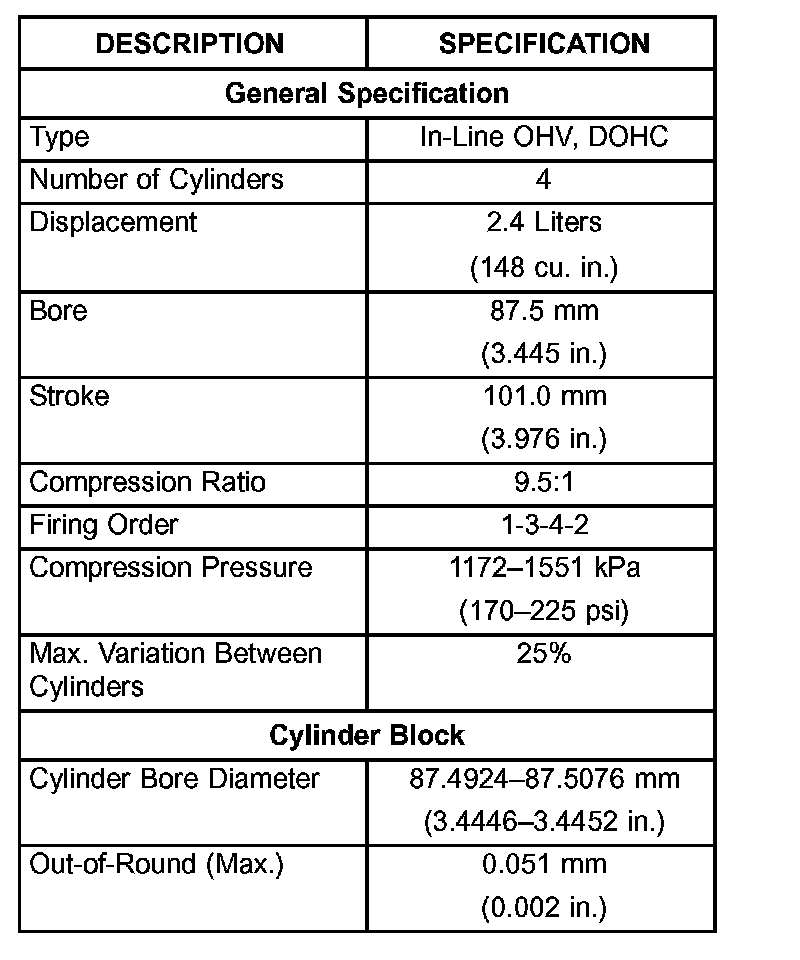

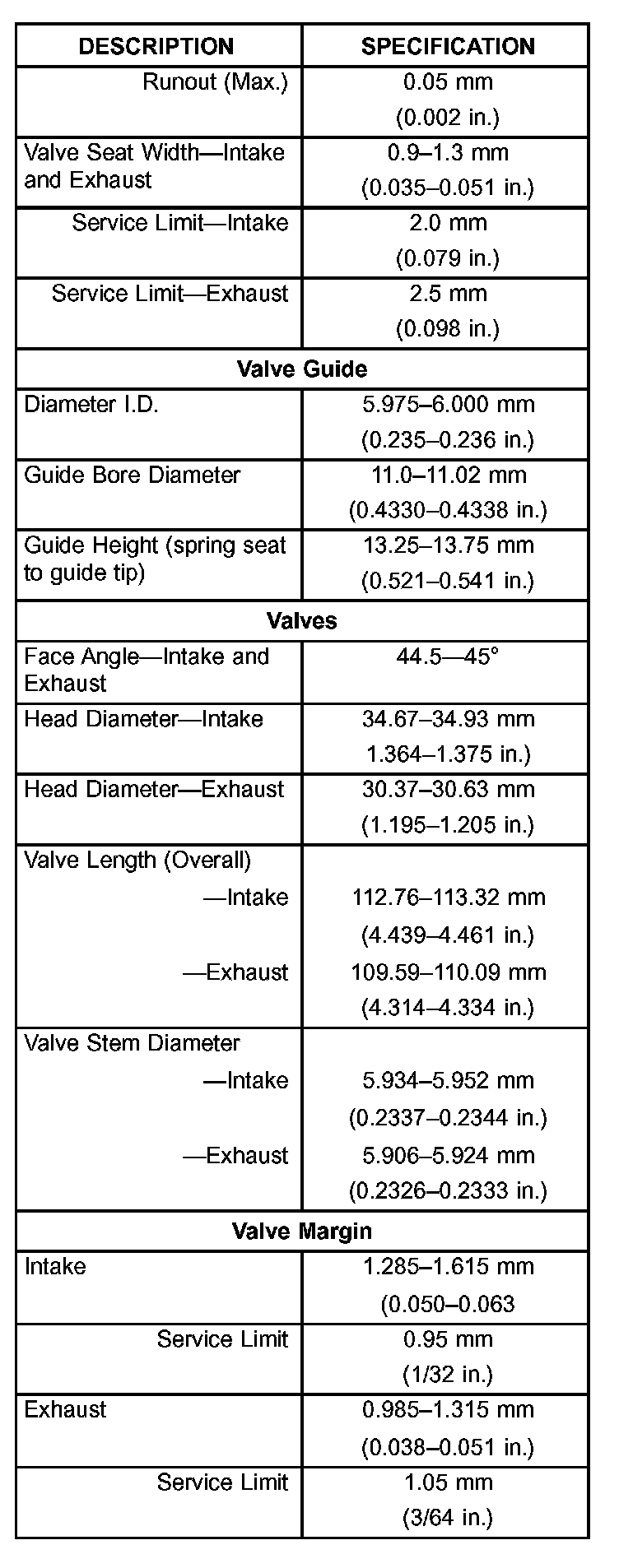

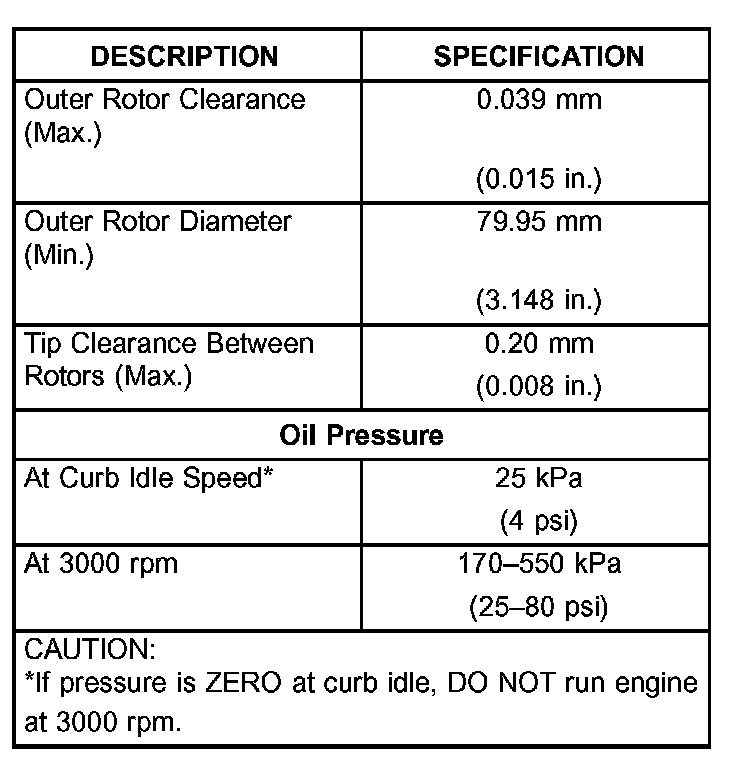

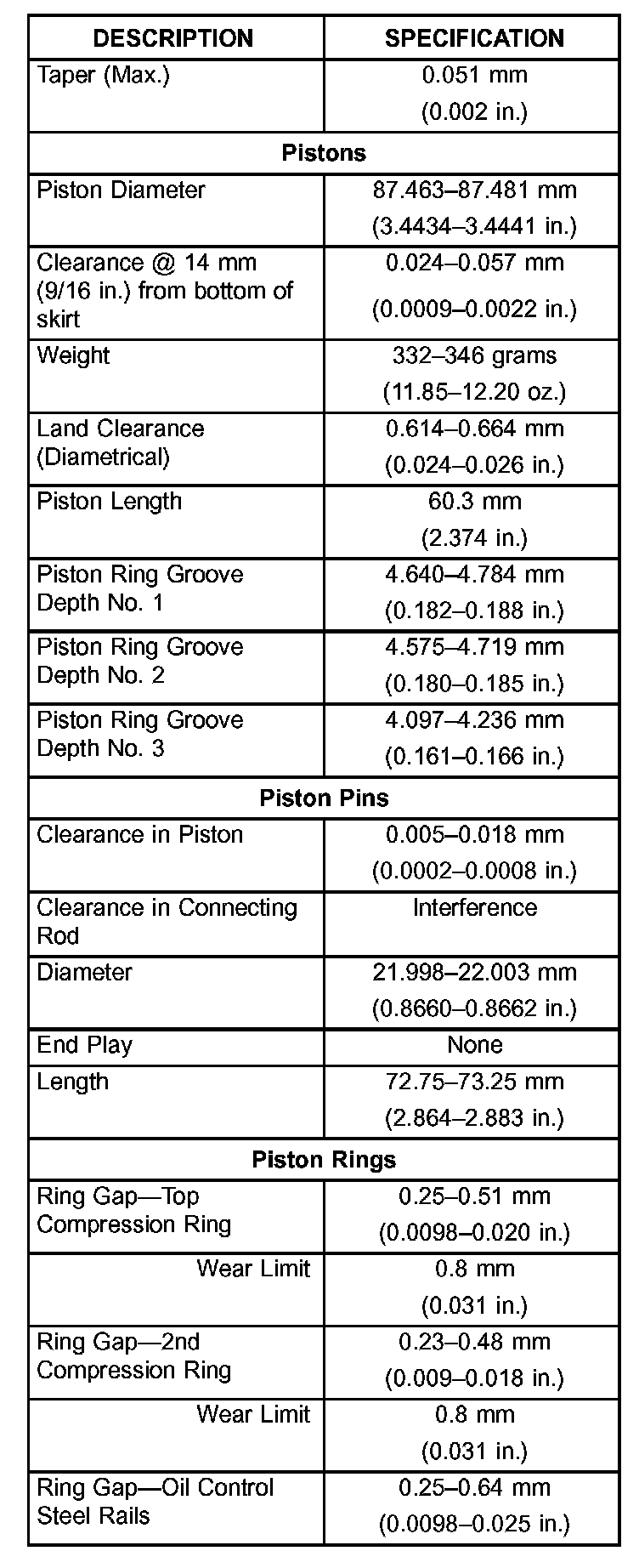

Engine Specifications
Part 1 of 7
Part 2 of 7
Part 3 of 7
Part 4 of 7
Part 5 of 7
Part 6 of 7
Part 7 of 7

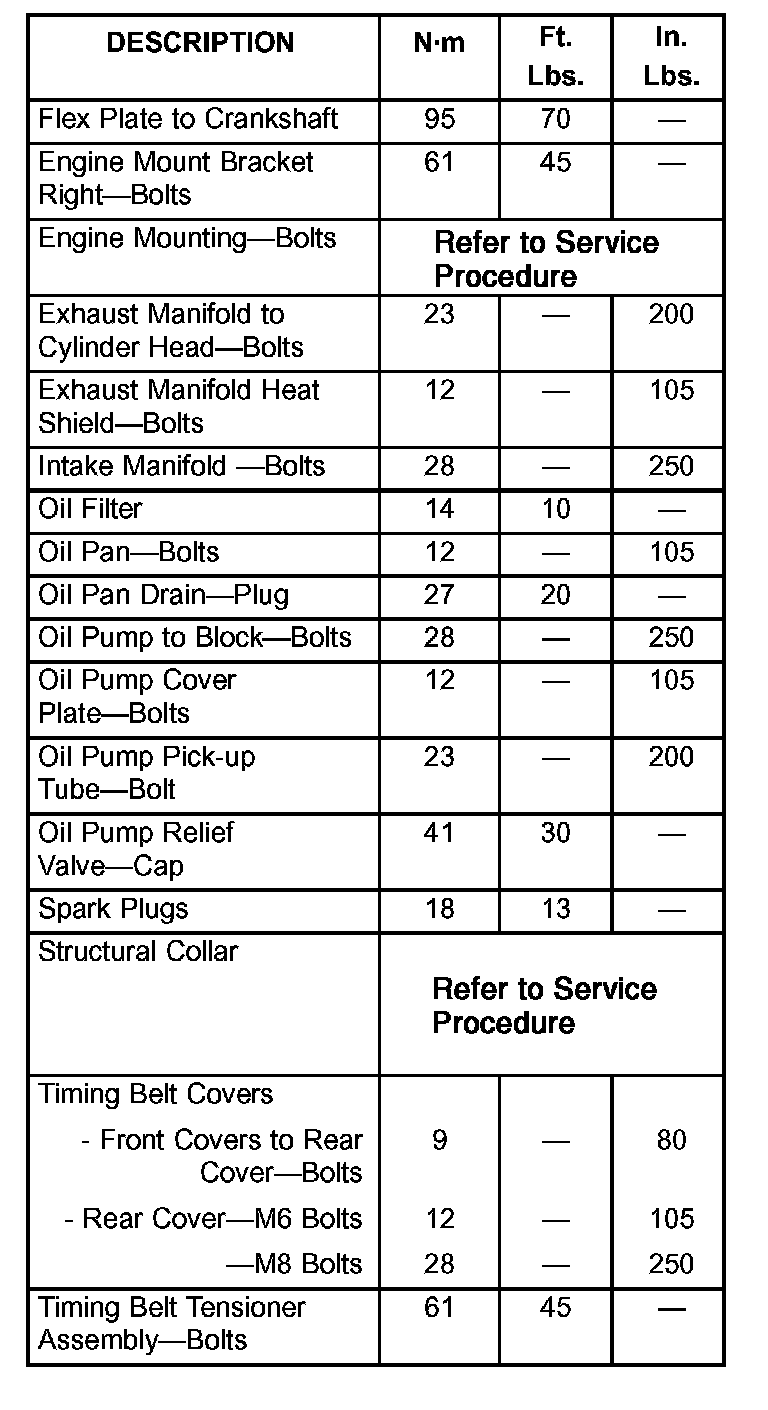

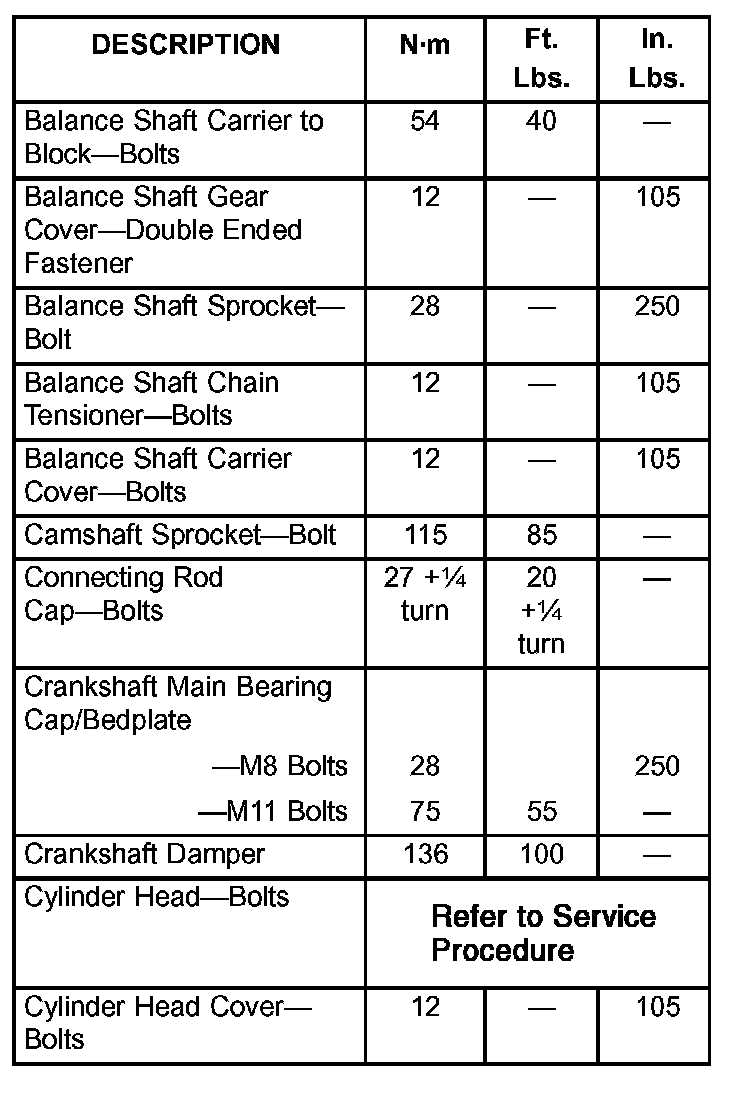

Torque Mechanical
Part 1 of 2
Part 2 of 2
