Engine Compartment/Exhaust System

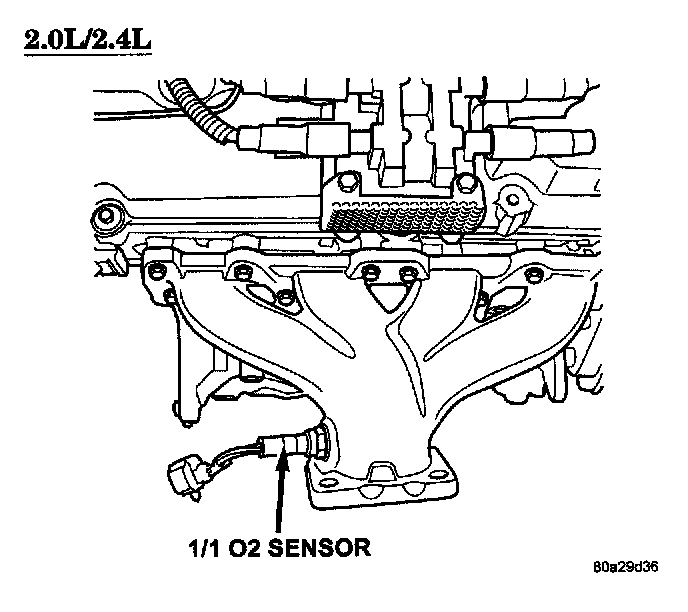

2.0L/2.4L:

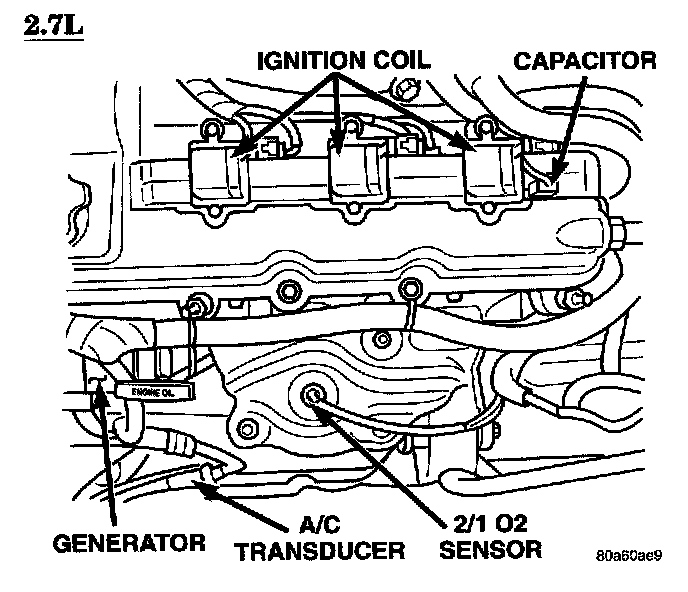

2.7L:

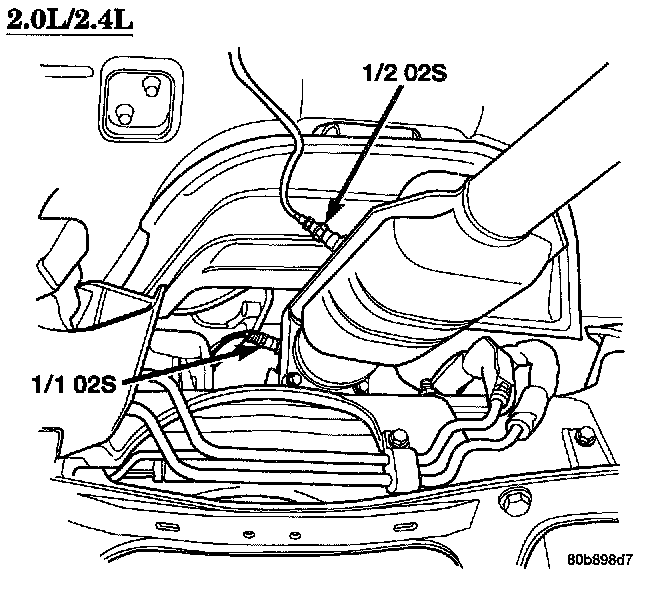

2.0L/2.4L:




Fig.26 O2 Sensor Downstream 2/1 4 Cylinder:




The O(2)S are located in the side of the catalytic converter.
