Manifold Pressure/Vacuum Sensor: Locations

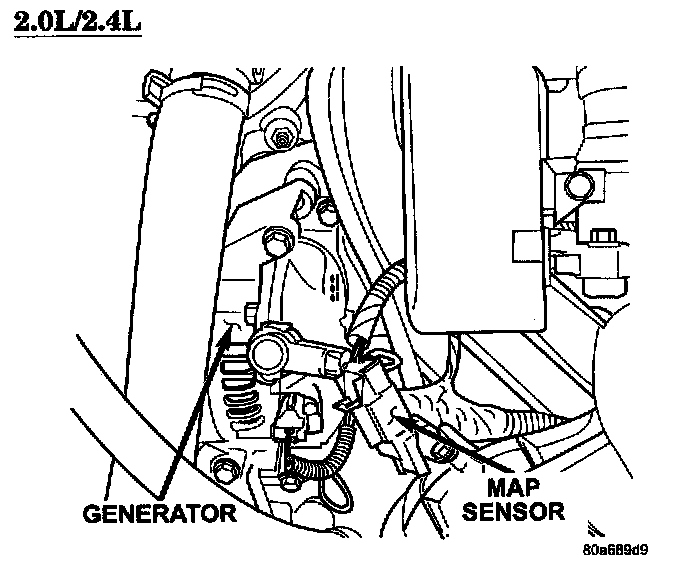

2.0L/2.4L:

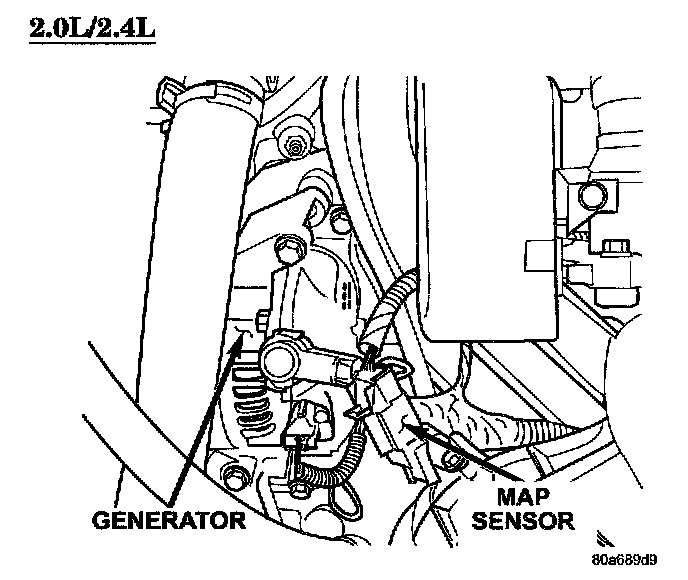

2.0L/2,4L:

2.7L:

The MAP sensor signal is provided from a single piezo-resistive element located in the center of a diaphragm.
