Map Light: Service and Repair

READING LAMP

REMOVAL
1. Disconnect and isolate battery negative cable.

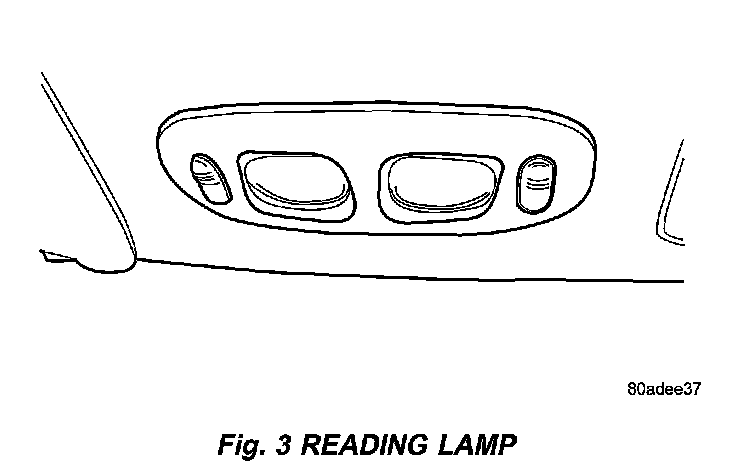

Fig.3 Reading Lamp:

2. Using a trim stick, pry lamp from headliner.
3. Disconnect wire harness connector.
4. Pull bulb socket from lamp.
5. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install bulb socket to lamp
3. Install wire harness connector
4. Install reading lamp to headliner
5. Connect battery negative cable.
