Headlamp Motor: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove headlamp unit (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - REMOVAL).

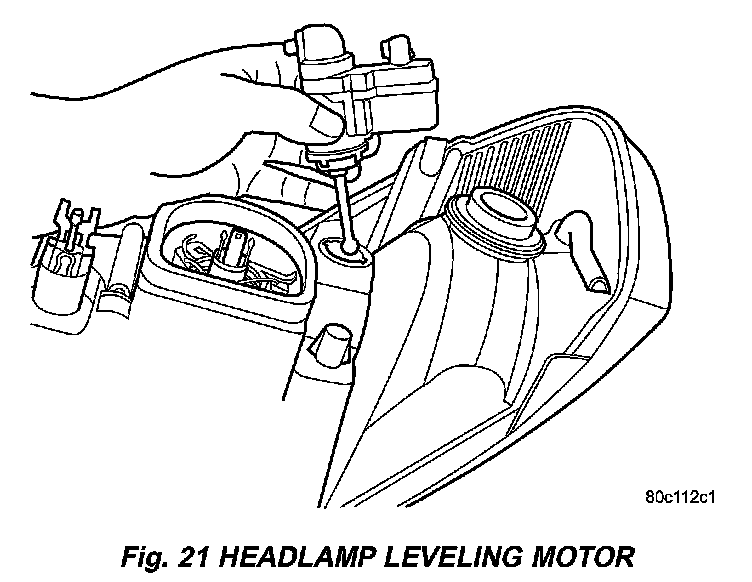

Fig.21 Headlamp Leveling Motor:

3. Rotate motor clock-wise and pull straight from headlamp unit..

NOTE: Significant force will be required to disconnect the leveling motor pushrod from the headlamp assembly.

INSTALLATION
1. Insert and rotate the leveling motor into the headlamp unit.

NOTE: Be certain the leveling motor ball stud is fully inserted in headlamp leveling socket assembly.

2. Install headlamp unit (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - INSTALLATION ).
3. Connect battery negative cable.
