Home >> Chrysler >> 2002 >> Sebring LX Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tools and Equipment

Engine: Tools and Equipment

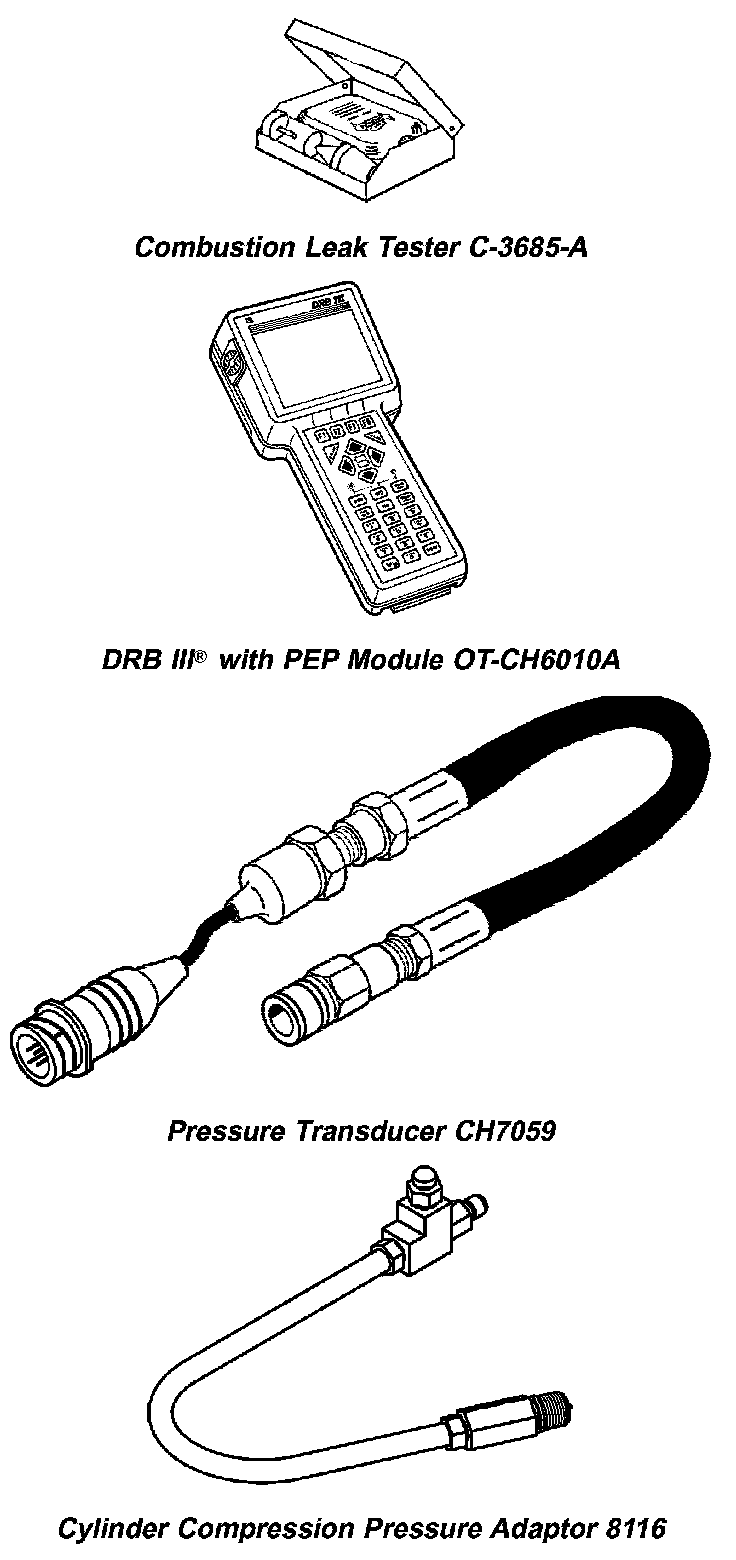

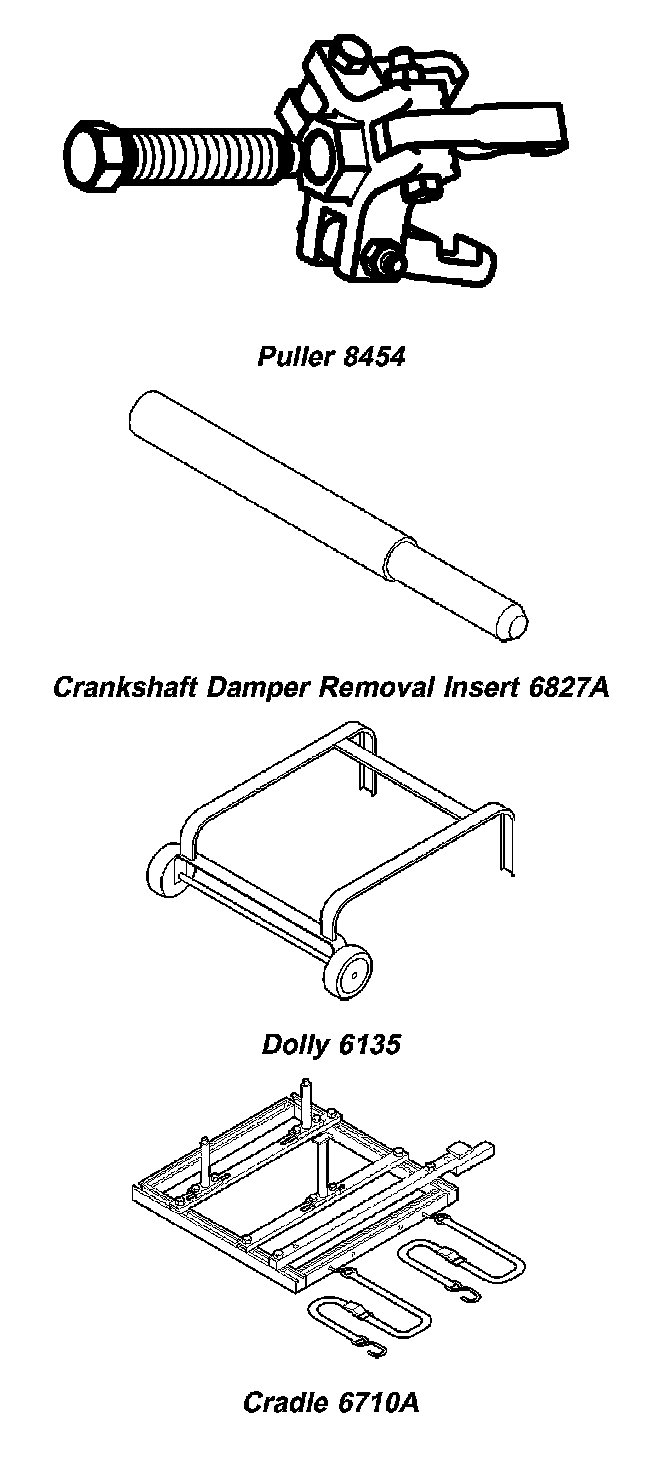

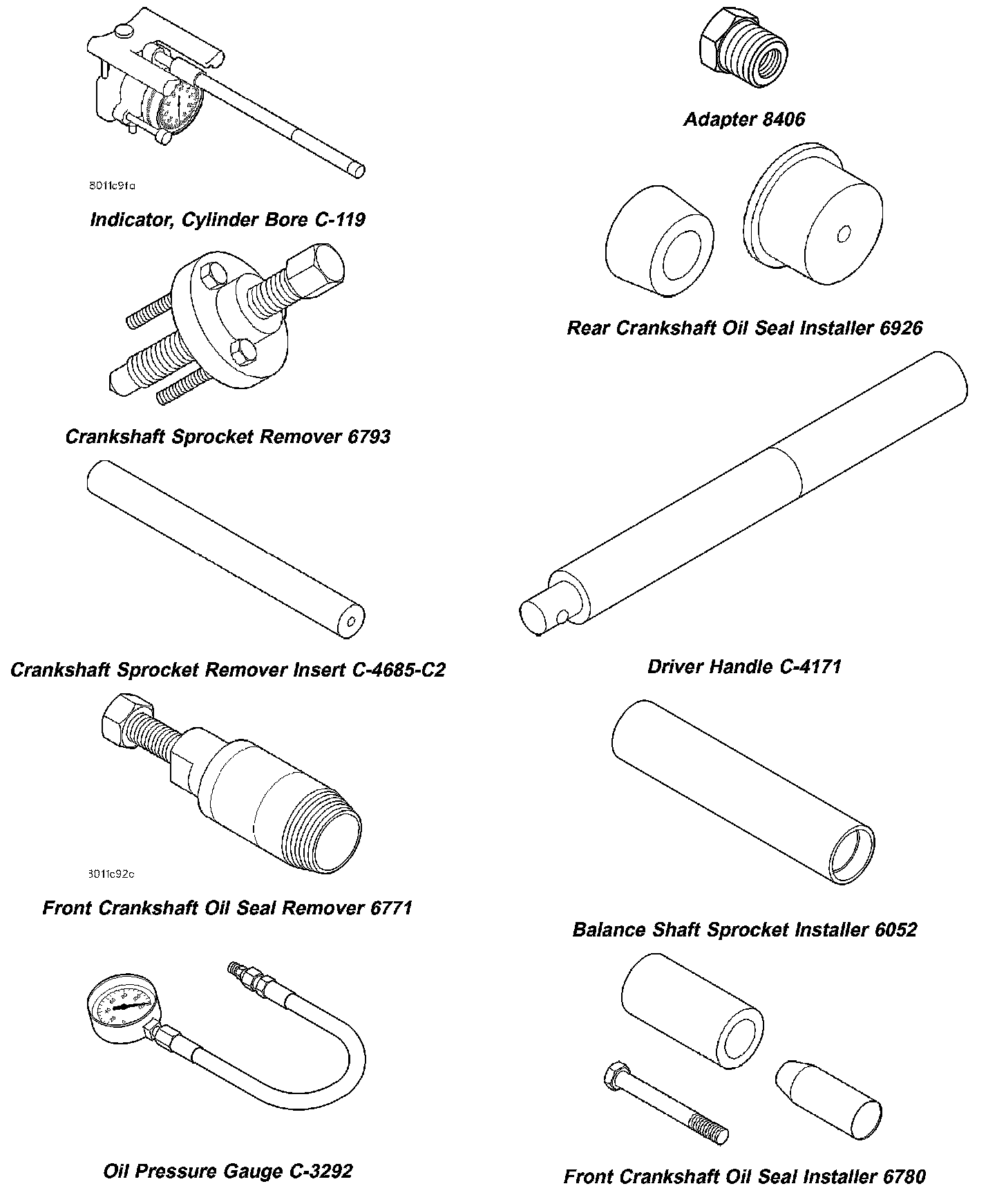

SPECIAL TOOLS





Part 1 of 4





Part 2 of 4





Part 4 of 4





Part 6 of 4
