P0551

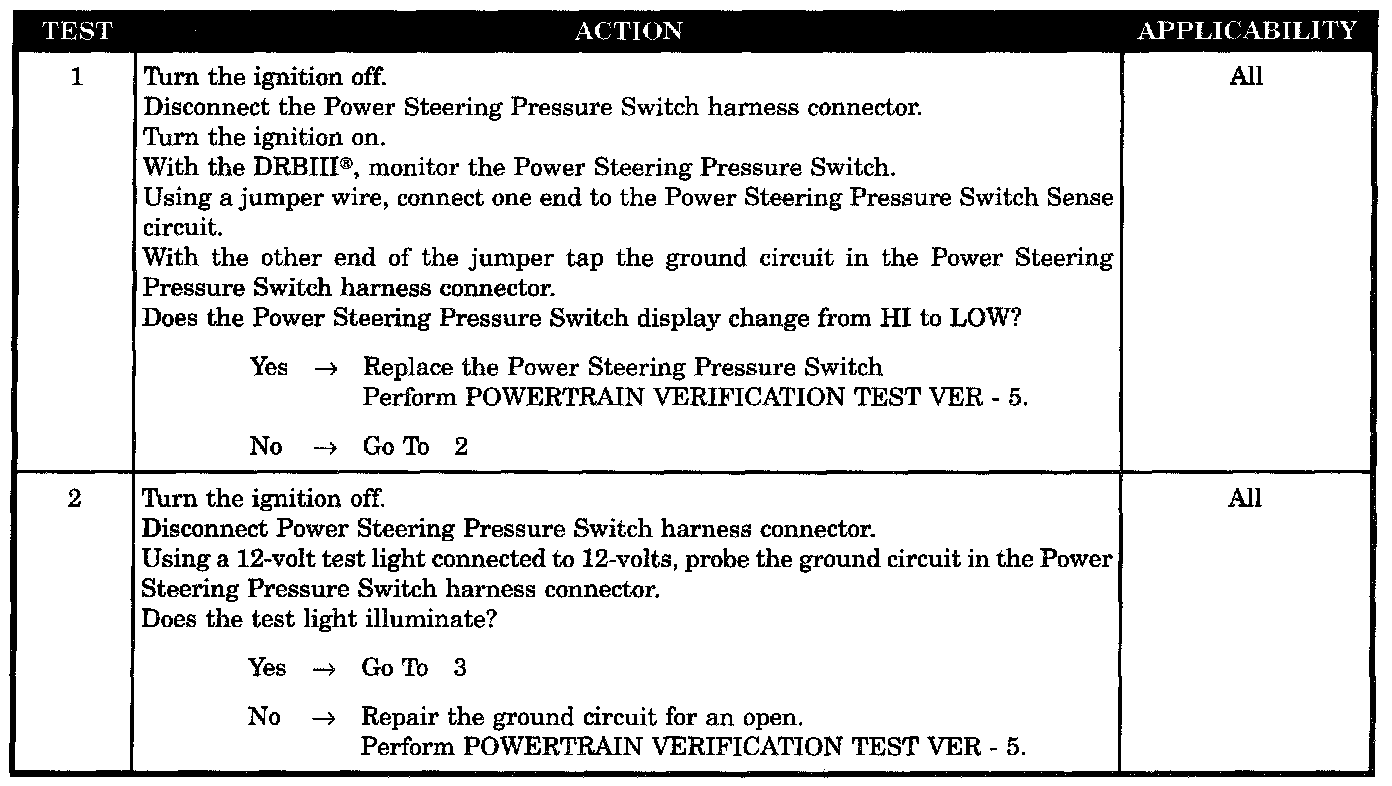

Tests 1 - 2:

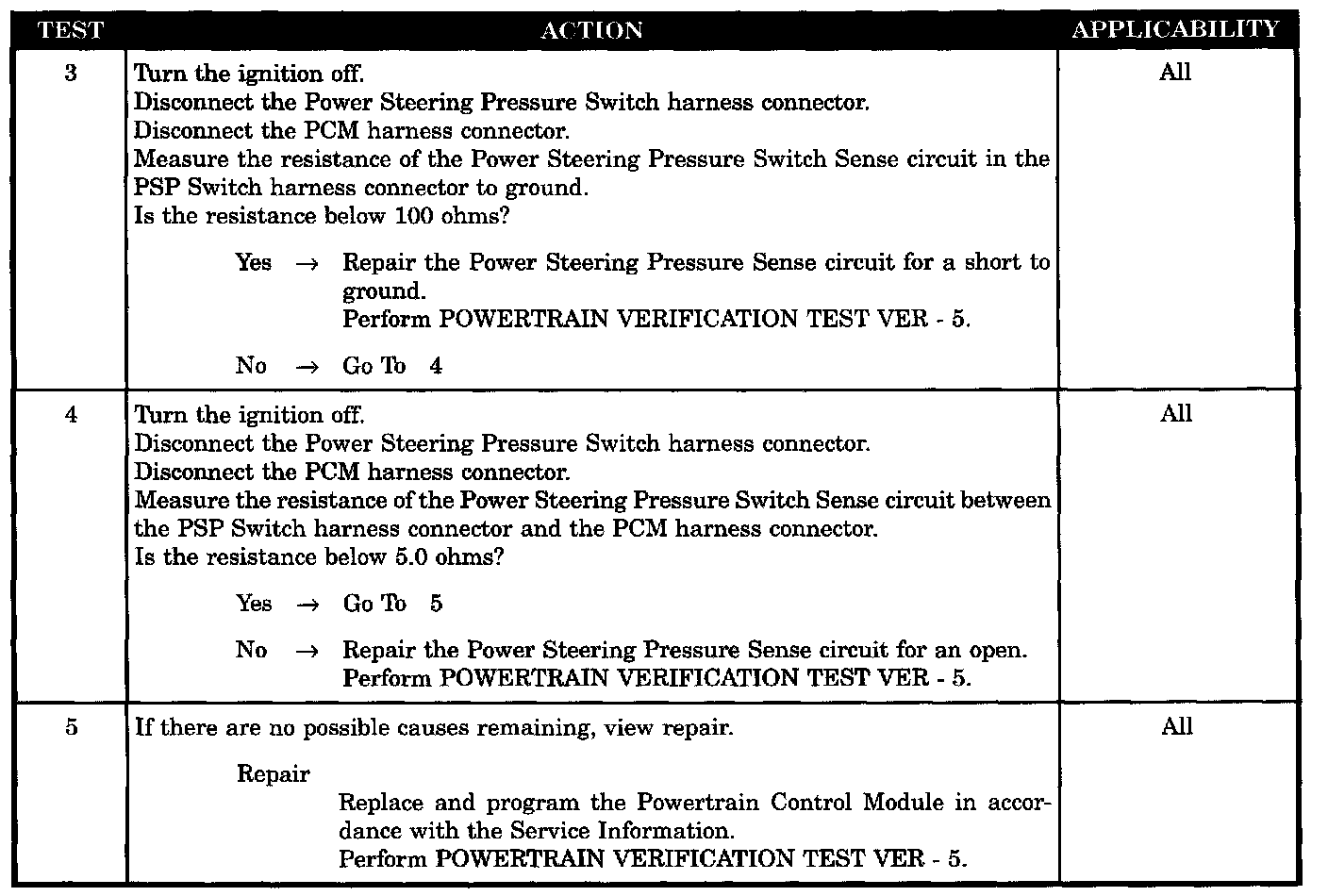

Tests 3 - 5:

SYMPTOM
P0551-POWER STEERING SWITCH FAILURE (4 CYLINDER)

WHEN MONITORED
With the ignition key ON and engine running.

SET CONDITION
With the vehicle above 65 KMH (40 MPH) for over 30 seconds, the power steering pressure switch remains open.

POSSIBLE CAUSES
- Power Steering Pressure Switch Operation
- Ground Circuit
- Power Steering Pressure Switch Sense Circuit Shorted To Ground
- Power Steering Pressure Sense Circuit Open
- PCM
