Electrical Diagrams

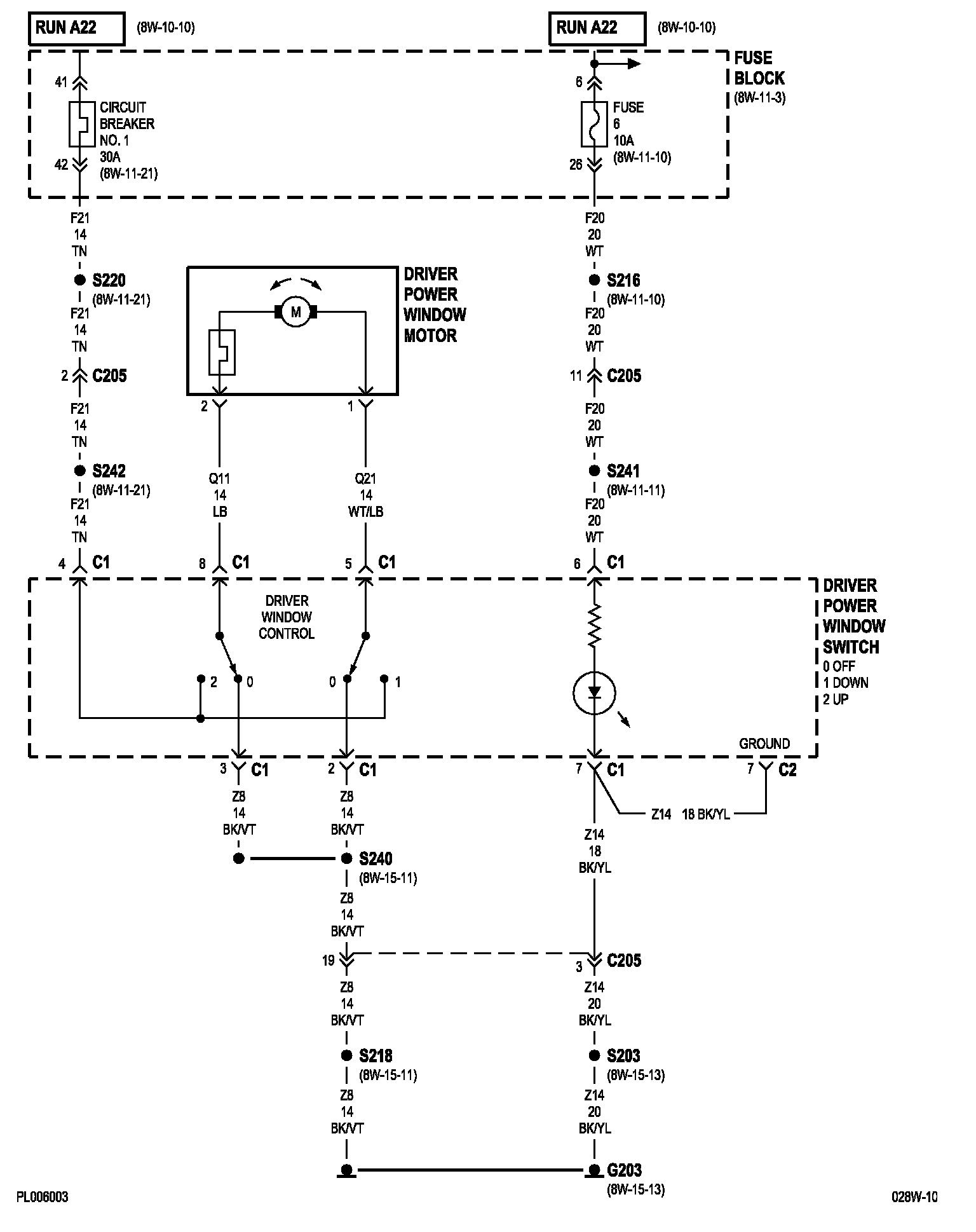

8w-60-2 (LHD):

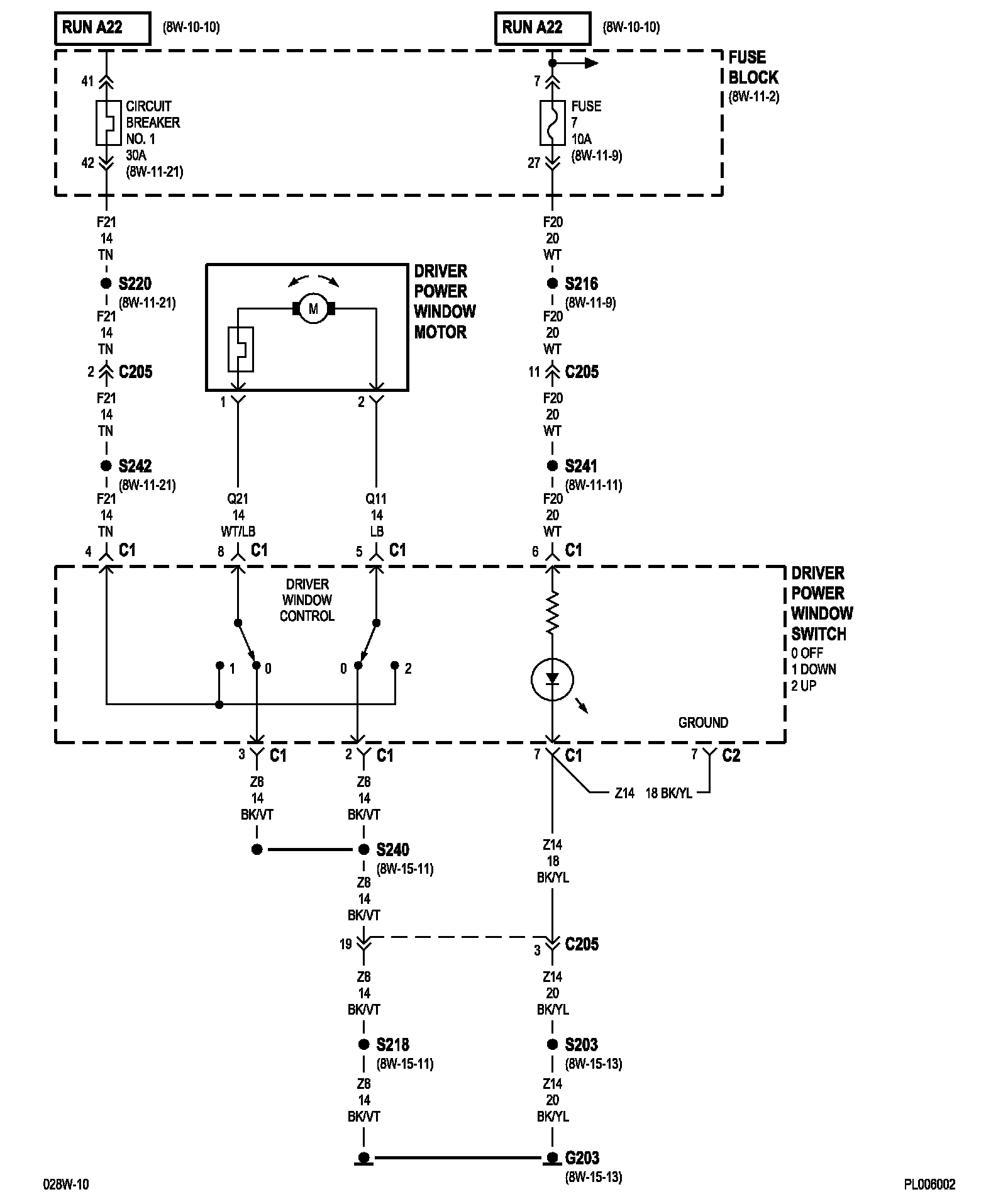

8w-60-3 (RHD):

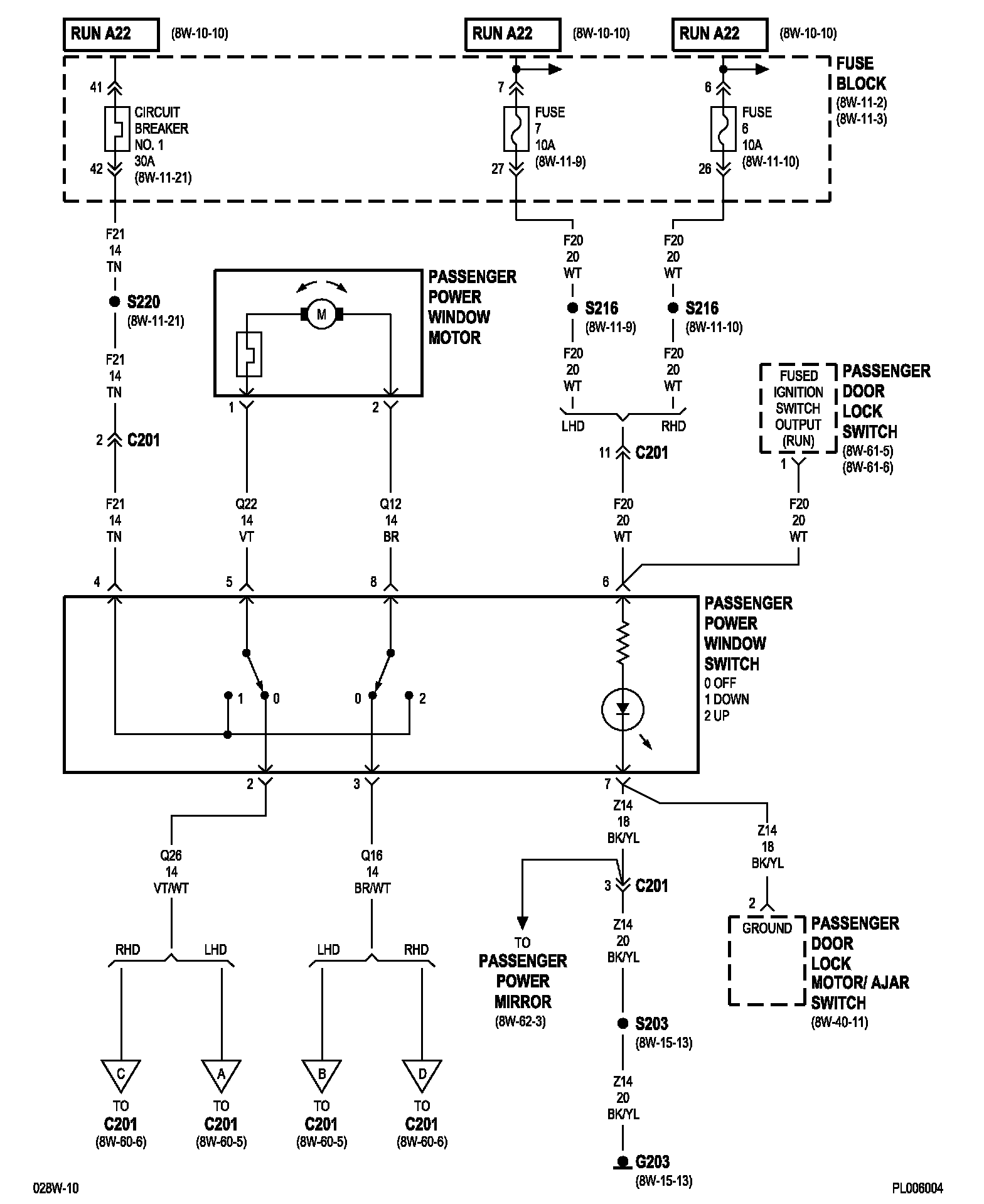

8w-60-4:

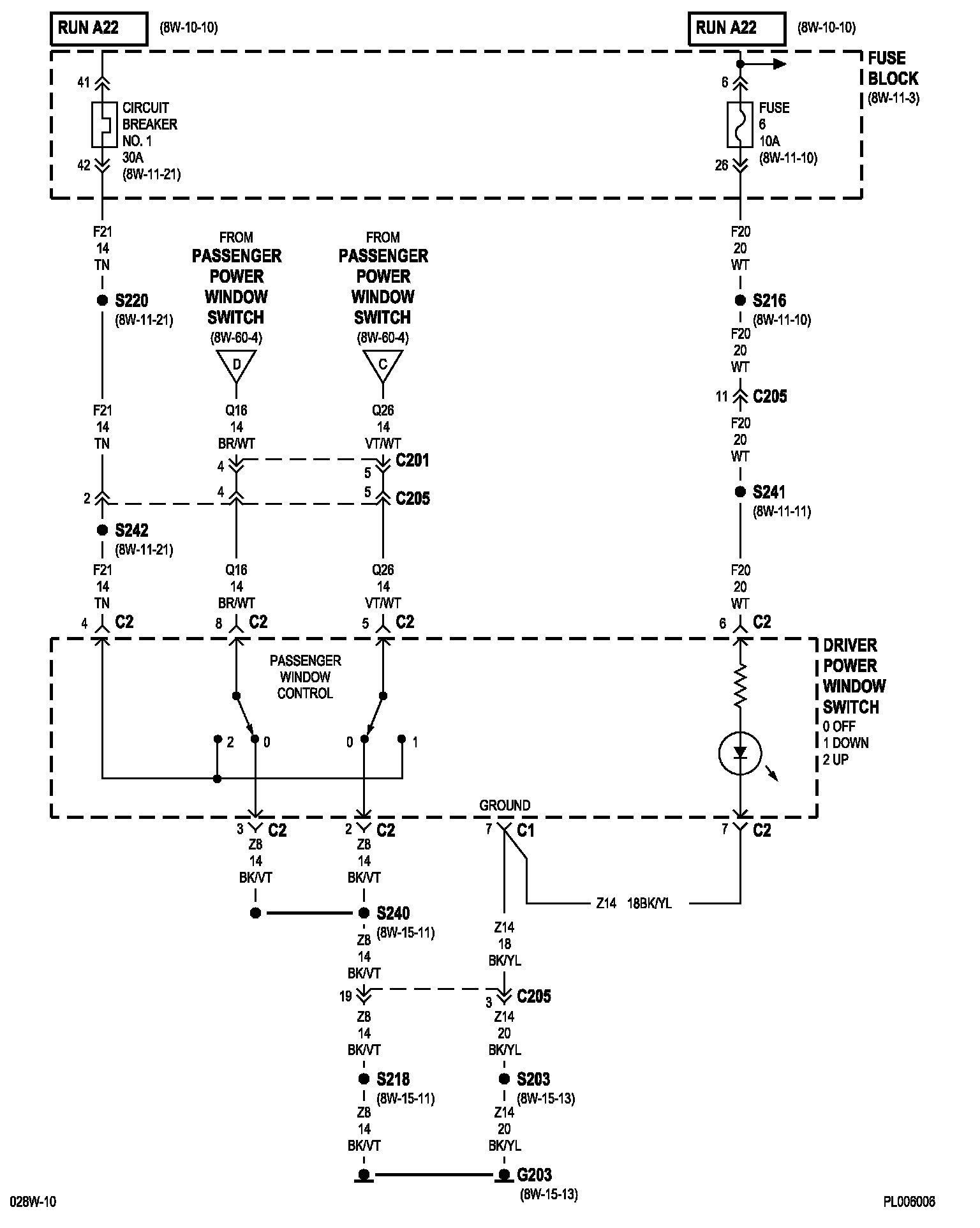

8w-60-5 (LHD):

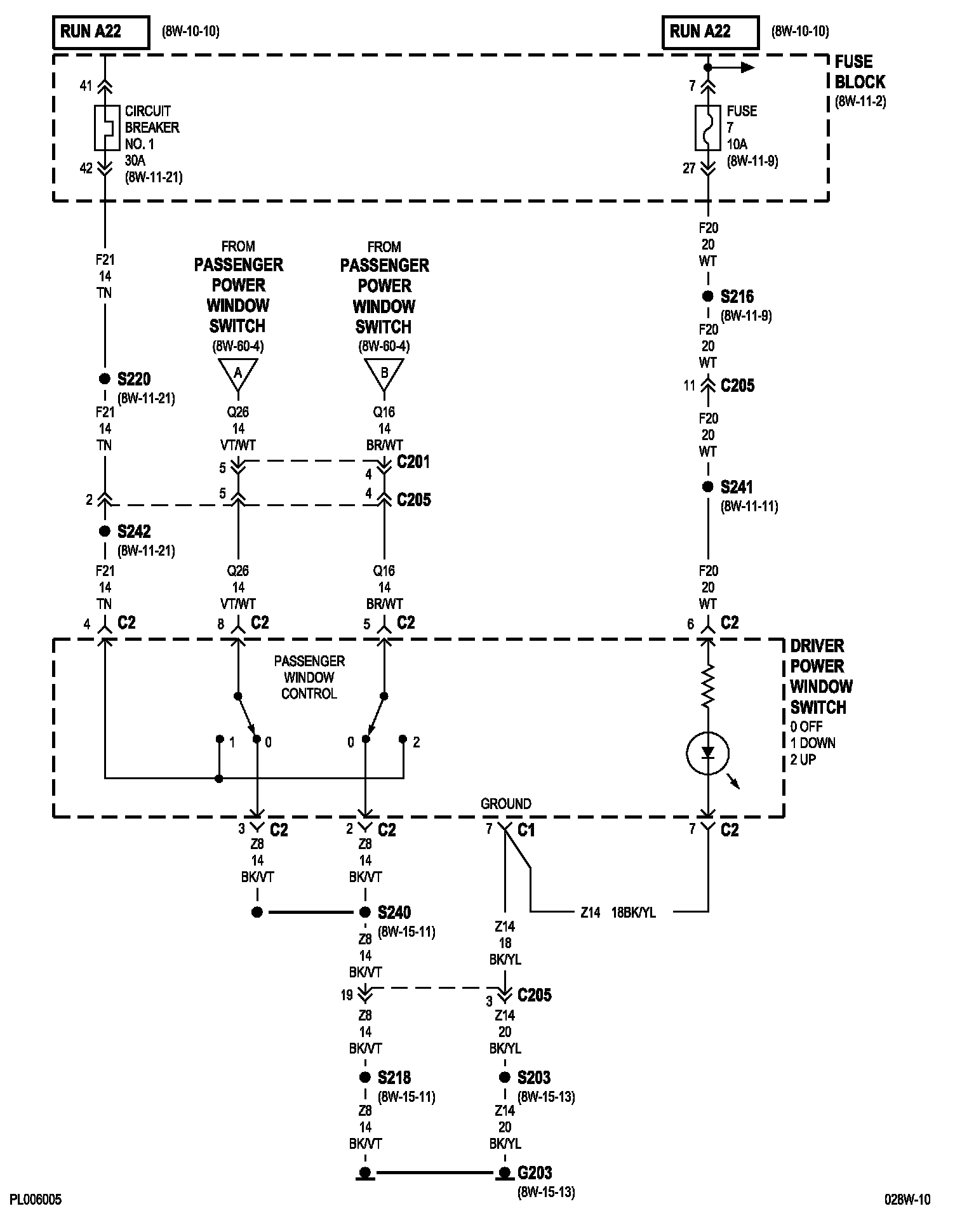

8w-60-6 (RHD):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
