Shift Selector Shaft Bushing

T350 - Manual Transmission
SHIFT SELECTOR SHAFT BUSHING
REMOVAL
1. Remove selector shaft.
2. Thread tool #6786 into bushing.

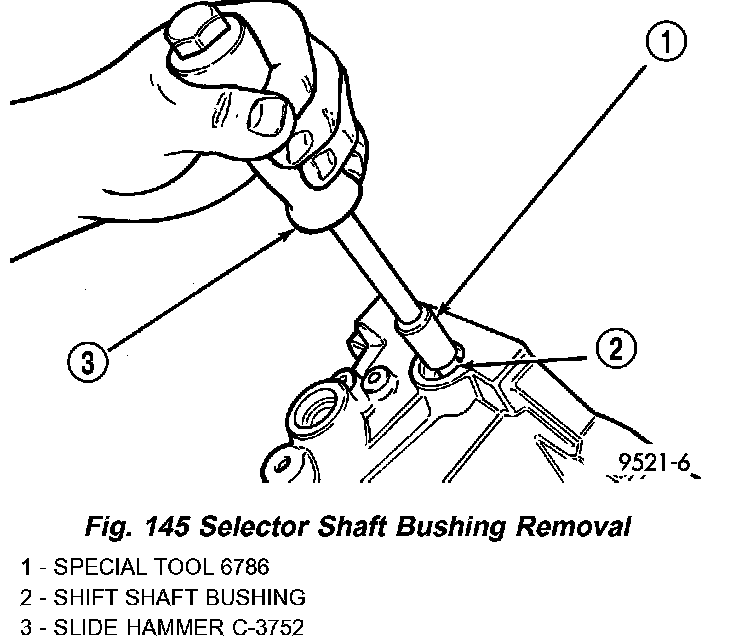

3. Install slide hammer #3752 onto tool and remove bushing using slide hammer. (Fig. 145).

INSTALLATION
1. Position replacement bushing over selector shaft bore.





2. Using an appropriate size deep-well socket, install bushing in selector shaft bore (Fig. 146).
